**Product Introduction**

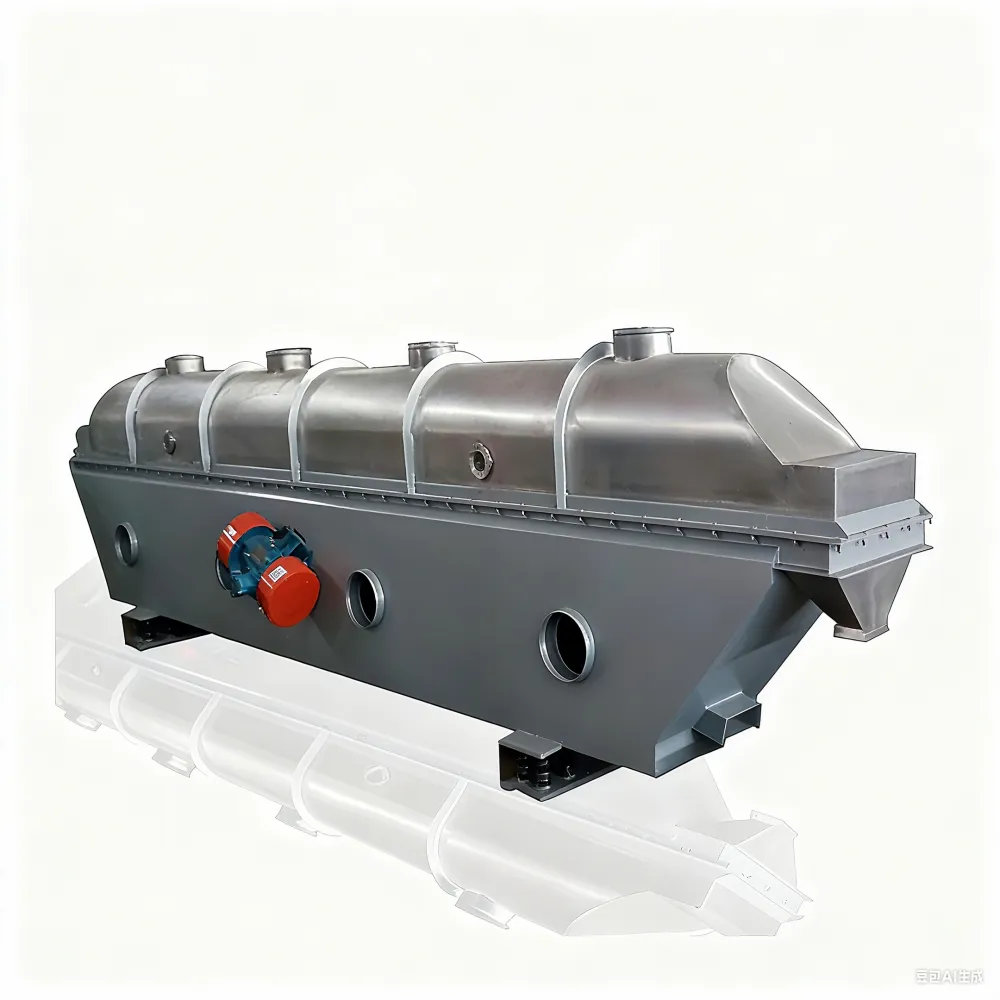

The Vibrating Fluidized Bed Dryer—also referred to simply as a "vibrating fluidized bed"—is a novel, highly efficient fluidized drying device designed for the drying of granular and powdery materials. It offers numerous advantages, including ease of operation, energy efficiency, and environmental friendliness.
**Working Principle**
In the fluidized bed dryer, material enters the machine through the feed inlet. Under the influence of vibration, the material is tossed and propelled forward continuously along the horizontal surface of the fluidized bed. Hot air flows upward through the fluidized bed, exchanging heat with the wet material. The resulting moist air passes through a cyclone separator to remove dust particles before being discharged via the exhaust outlet, while the dried material is discharged through the discharge port. This equipment is suitable for drying, cooling, and other processing operations involving powdery and granular materials across various industries, including chemical, pharmaceutical, food, and mining sectors.
**Equipment Features**
1. **Uniform Heating:** The material is heated uniformly, ensuring thorough heat exchange and resulting in high drying intensity.
2. **Reliable Vibration Source:** The vibration source is driven by a dedicated vibration motor, ensuring stable operation, convenient maintenance, low noise levels, and a long service life.
3. **Uniform Fluidization:** The fluidization process is uniform, free from "dead zones" (stagnant areas) or "blow-through" phenomena, thereby ensuring the production of uniformly dried, cooled, or humidified products.
4. **High Adjustability & Versatility:** The system offers excellent adjustability and wide applicability; parameters such as the material bed thickness, the material's forward velocity within the machine, and the overall vibration amplitude can all be adjusted steplessly (continuously).
5. **Minimal Material Damage:** The process causes minimal surface damage to the material, making it suitable for drying fragile substances; furthermore, the drying efficiency remains unaffected even when processing materials with irregular particle shapes.
6. **Fully Enclosed Structure:** The equipment features a fully enclosed design that effectively prevents cross-contamination between the material and the external air, thereby ensuring a clean and hygienic operating environment.
7. **High Efficiency:** The system boasts high mechanical and thermal efficiencies, delivering significant energy-saving benefits; compared to conventional drying equipment, it can achieve energy savings of 30% to 60%.
