🔩 Wear-Resistant Screw Flight for Cement Screw Conveyor and Powder Conveying System
📝 Product Description

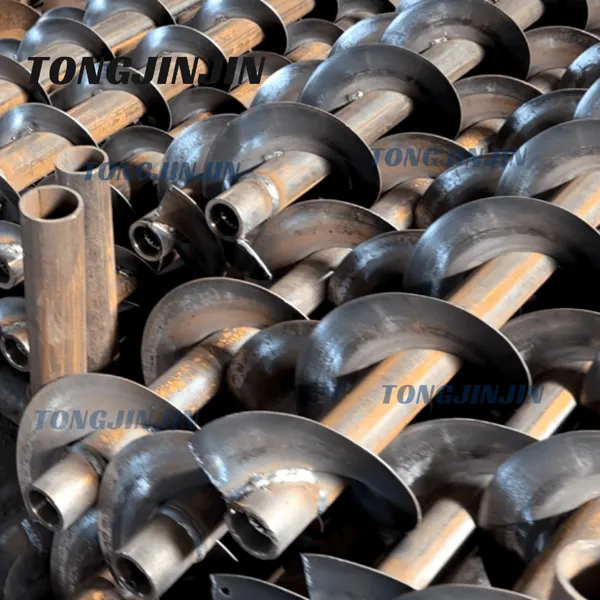

Screw Flight is an important conveying part used inside screw conveyors. It is welded or assembled on the screw shaft to push cement, fly ash, lime powder, mineral powder, dry mortar, grain, and other bulk materials forward during rotation.
In concrete batching plants, cement silos, dry mortar production lines, and powder handling systems, the screw flight directly affects conveying efficiency, material flow stability, and conveyor service life. If the screw flight is worn, deformed, or not matched with the conveyor tube, the screw conveyor may face slow conveying, material blockage, abnormal noise, or higher power load.
TONGJINJIN provides screw flights for screw conveyor replacement and production use. Different sizes, thicknesses, materials, pitches, and structures can be selected according to conveyor diameter, shaft size, material type, and working condition.
📊 Basic Product Parameters
| Item | Description |
|---|---|
| Product Name | Screw Flight |
| Product Type | Screw Conveyor Blade / Helical Flight |
| Main Function | Push and convey powder or granular materials |
| Suitable Equipment | Screw conveyor, cement screw conveyor, powder conveyor |
| Common Material | Carbon steel / Stainless steel optional |
| Surface Treatment | Painting, polishing, or customized treatment |
| Structure Type | Continuous flight / Sectional flight optional |
| Application | Cement, fly ash, lime powder, mineral powder, dry mortar, grain |
| Installation Method | Welded on shaft / Assembled according to conveyor design |
| Customization | Available according to diameter, pitch, thickness, and drawing |
✅ Product Features
✅ Used as the main conveying blade inside screw conveyors
✅ Helps push powder and granular materials forward smoothly
✅ Suitable for cement screw conveyors and industrial powder conveying systems
✅ Carbon steel and stainless steel materials can be selected according to working conditions
✅ Flight diameter, pitch, thickness, and length can be customized
✅ Suitable for replacement, repair, and new screw conveyor production
✅ Can be matched with conveyor tube diameter, shaft size, and installation angle
✅ Helps improve conveying stability when properly matched with the conveyor body
🏗️ Application Areas
Screw Flight is widely used in:
✅ Concrete batching plants
✅ Cement screw conveyors
✅ Cement silo discharge systems
✅ Fly ash conveying systems
✅ Dry mortar production lines
✅ Lime powder conveying systems
✅ Mineral powder transfer equipment
✅ Grain and bulk material conveying equipment
✅ Industrial powder handling systems
For concrete batching plant users, screw flights are commonly used inside cement screw conveyors, fly ash screw conveyors, and powder conveying equipment connected with cement silos, weighing hoppers, and mixers.
⚙️ Why Screw Flight Quality Matters
The screw flight works continuously with powder or granular materials. During long-term operation, it may face friction, impact, material resistance, and dust buildup.
A properly made screw flight can help maintain stable conveying performance. If the blade edge becomes thin, the pitch is not accurate, or the welding is uneven, the conveyor may not feed material smoothly.
Common problems caused by worn or unsuitable screw flights include:
✅ Slow powder conveying
✅ Material residue inside the conveyor tube
✅ Screw blade rubbing the tube wall
✅ Abnormal noise during operation
✅ Higher load on motor and reducer
✅ Reduced conveying capacity
✅ Material blockage near inlet or outlet
That is why customers should check the screw flight condition during screw conveyor maintenance.
🔍 What Should Customers Confirm Before Ordering?
Before ordering screw flights, customers should confirm the following information:
✅ Conveyor diameter
✅ Screw flight outer diameter
✅ Shaft diameter
✅ Flight pitch
✅ Blade thickness
✅ Total length or required quantity
✅ Material requirement: carbon steel or stainless steel
✅ Conveyed material: cement, fly ash, lime powder, dry mortar, etc.
✅ Installation angle of screw conveyor
✅ Old part photos or drawings if available
If the screw flight is used for replacement, photos of the old blade and conveyor structure are very helpful. They can reduce model mismatch and make production confirmation easier.
🛠️ Maintenance Suggestions
During daily screw conveyor maintenance, customers can check whether the screw flight has obvious wear, deformation, cracking, or material buildup.
If the conveyor has abnormal noise, unstable feeding, slow conveying, or repeated blockage, the screw flight, hanger bearing, end bearing, shaft coupling, reducer, and seal parts should be checked together.
Replacing only one part without checking the related parts may not fully solve the problem. For example, blade wear may also be related to shaft misalignment, bearing wear, or unsuitable material flow.
🏭 TONGJINJIN Supply Range

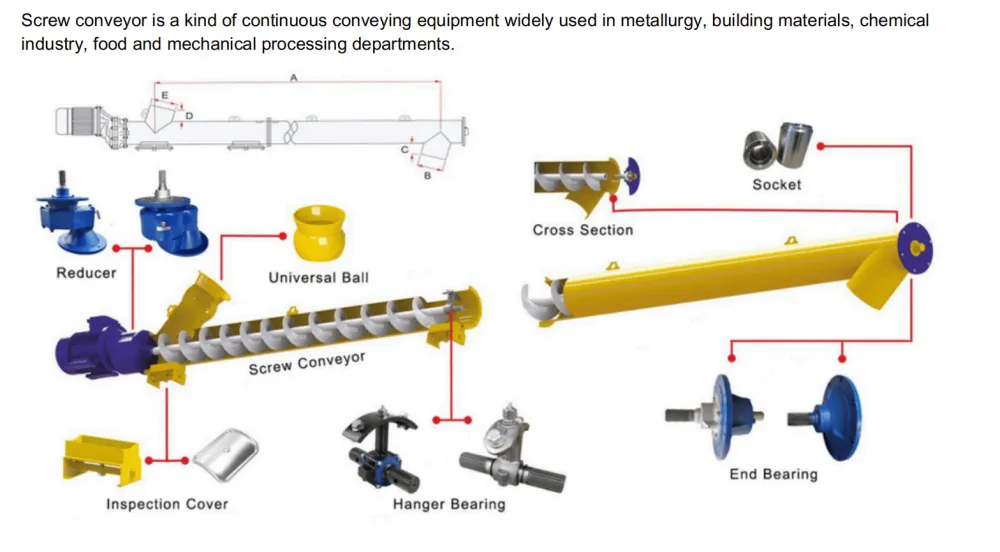

TONGJINJIN provides screw conveyor parts and concrete batching plant spare parts, including screw flights, screw conveyor shafts, hanger bearings, end bearings, shaft couplings, seal boxes, inspection hatches, gear reducers, motors, butterfly valves, silo venting filters, level indicators, pressure relief valves, and pneumatic control components.
Screw flights can be customized according to conveyor size, material type, blade thickness, pitch, shaft size, and actual working condition.
