Heat shrink packaging is one of the more advanced packaging methods in the market at present. It uses shrink film to wrap around the product or package. After heating, the shrink film shrinks and tightly wraps the product or package, fully showing the appearance of the item, improving the product's exhibition performance, increasing its beauty and sense of value. At the same time, the packaged items can be sealed, protected from moisture, dust, and pollution, and the goods can be protected from external impacts.

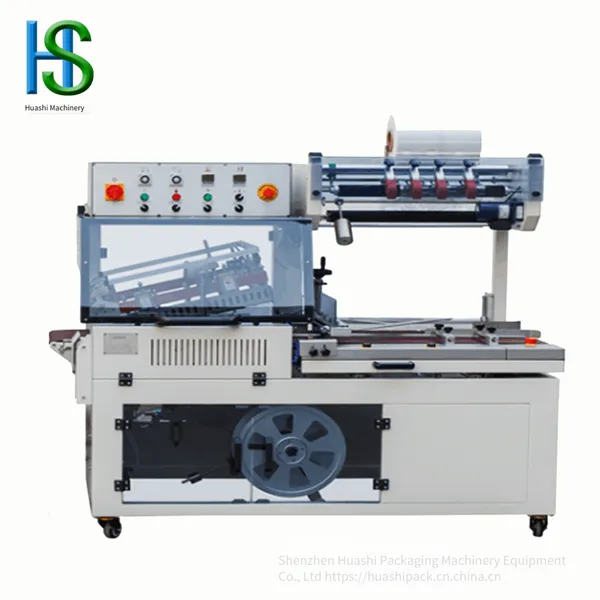

The L-type automatic sealing and cutting machine adopts a fully automatic unmanned operation process and is widely used in the assembly line operation of mass production packaging. It has high work efficiency, with functions such as automatic film feeding and punching, automatic film sleeving, sealing and cutting, and automatic waste film winding. You only need to manually adjust the film guiding system and the feeding conveyor platform, and it is suitable for products of different widths and heights. It can be used in conjunction with the automatic packaging assembly line and is an ideal choice for product sealing and heat shrink packaging. It has a series of advantages such as beautiful appearance, easy operation, fast heat sealing, and firm sealing. The fully automatic sealing and cutting shrink packaging machine of Shenzhen Huashi Packaging & Machinery Equipment Co., Ltd. has added many auxiliary functions during the design according to the actual operation needs, which greatly facilitates the users. At the same time, the function keys can be switched immediately, which can fully meet the packaging needs of different items. To prevent operators or packages from being damaged, this machine is equipped with a complete protection system. When an accident occurs, the cutting knife can automatically rise and give an alarm.
Features
1. HS-DQL5545Fully automaticLtype sealing and cutting machine technical features:
1. The sealing and cutting knife is made of special alloy material sprayed with Teflon, so it doesn't stick to the film during sealing and cutting, the seal is firm, there is no smoke during sealing and cutting, and there is no pollution. The sealing frame is made of high-quality alloy steel, the sealing quality is stable, and the frame is not easy to deform.
2. The whole machine is equipped with a full set of automation systems and photoelectric detection, which can achieve high-speed, unmanned automatic operation.
3、It is convenient to adjust the product specifications. You can easily complete the adjustment by simply using the handwheel, and the operation is easy and simple.
4、It can be directly connected to the production line for use.
5、It has a protection function to prevent accidental cutting of the packaging materials and protect the safety of the operator.
II. HS-D4520 Shrink Machine Technical Features:
1 、The perfect combination of Schneider AC contactors and high-power solid-state voltage regulators, coupled with intelligent temperature control, makes the system temperature more accurate and greatly extends the service life.
2 、It uses a solid roller conveyor belt, and the rollers are covered with high-temperature-resistant silicone tubes. It can bear objects of relatively large weight and is not easy to wear.
3 、A high-power air circulation motor ensures a sufficiently strong wind to achieve a perfect packaging effect on the packaging materials at one time.
4 、It uses a stainless-steel inner container, which has fast heat transfer, uniform heating, low energy consumption, and a long service life.
III. Scope of application:
Batch shrink packaging in industries such as software, food, cosmetics, printing, pharmaceuticals, beverages, hardware plastics, etc. Suitable forPOF, PE, PVC and other shrink packaging materials.
V. Technical parameters:
Model |
HS-5545 |
HS-D4520 |
Packaging size |
H≦140 L+2H≦550 W+2H≦450 mm |
W450×H200 mm |
Sealing size |
L550×W450 mm |
/ |
Power |
1.9KW |
8.5KW |
Working efficiency |
0-30 Bags/minute |
0-15 m/min |
Power supply |
220V 50/60HZ |
380V 50HZ/60HZ |
Working air pressure |
5(Kg/cm2) ) |
/ |
Machine net weight |
320㎏ |
210㎏ |
Machine dimensions |
L1760×W940×H1580 mm |
Overall dimensions: L1600×W730×H1400 mm Oven channel: L1200×W450×H200 mm |
