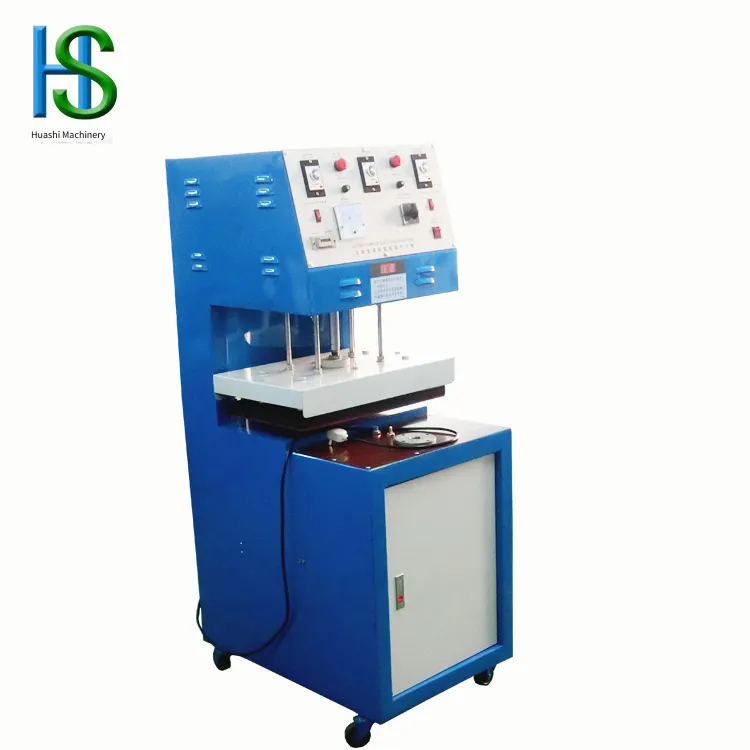

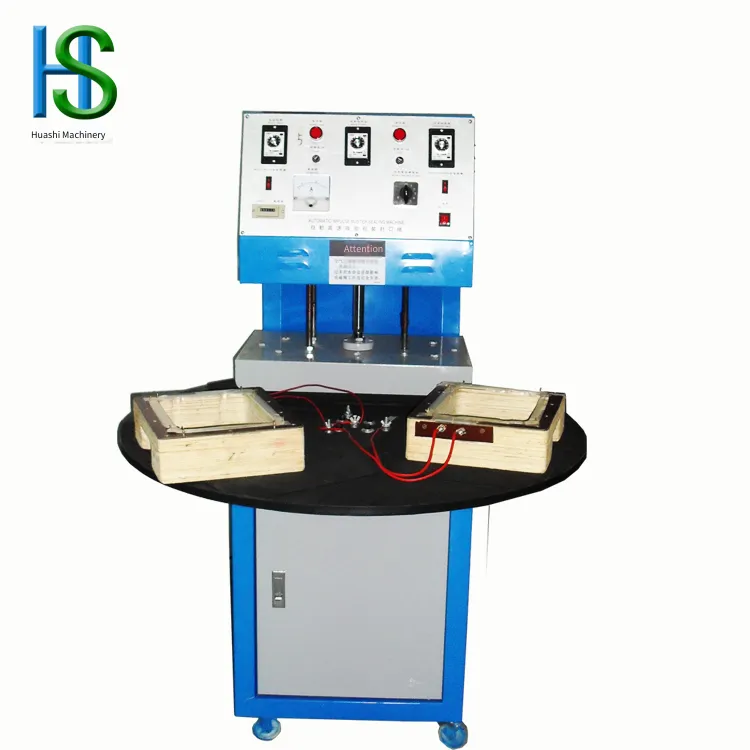

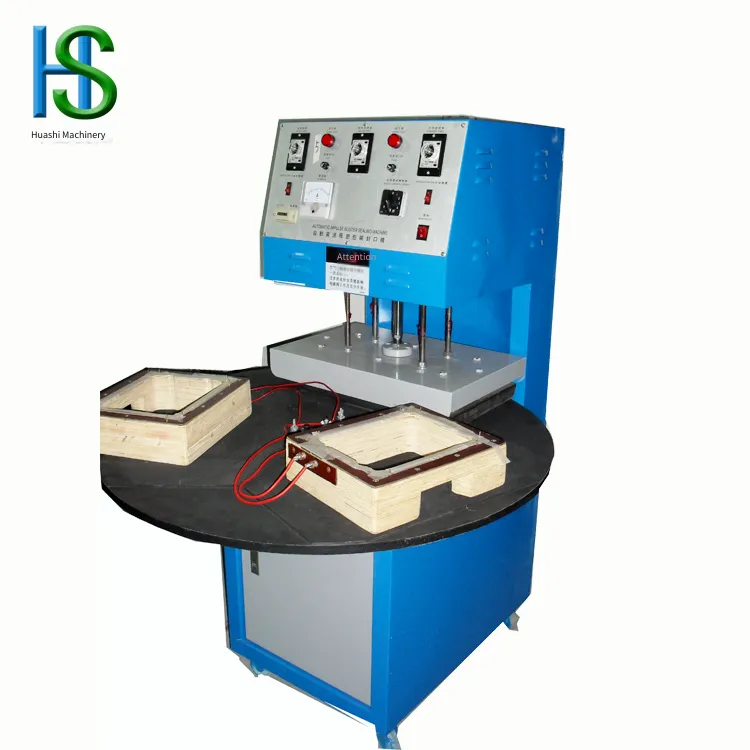

Help CenterSemi-automatic Blister Card Heat Press Machine, Blister Card Clamping Heat Sealing Machine, Small Hardware and Toy Sealing Machine
Related Products
-
Continuous Blister Thermo - Press, Fully Automatic Blister Sealing Machine, Blister Packaging Machine, Chain - Type Multi - StationUS$ 3692.31 - 3969.23MOQ: 1 Unit -
Automatic Packaging Machine for Hot-press Forming Molds, Pneumatic Hot-press Molds for Blister Machines / High-frequency Machines / Sealing MachinesUS$ 30.77MOQ: 1 Unit
-
Supply of Bakelite Molds, Color Card Hot Pressing Molds, Wooden Molds, Daily Necessities Packaging Molds, Toothbrush Packaging MoldsUS$ 27.69 - 33.85MOQ: 1 Piece
-
Blister Sealing Machine, Heat-sealing Packaging for Blister Shells and Paper Cards, Hot Press, Hanging Card Blister Heat-sealing MachineUS$ 538.46MOQ: 1 Unit
-
Factory External Vacuum Sealer, Food Vacuum Packaging Machine, Vacuum Preservation, Shenzhen Vacuum Packaging Sealing MachineUS$ 630.77 - 692.31MOQ: 1 Unit
The blister sealing machine uses the frictional heat energy generated at the contact surface of two workpieces to be welded to melt the plastic. The heat energy comes from the reciprocating movement of one workpiece on the other surface with a certain displacement or amplitude under a certain pressure. Once the expected heat-sealing degree is reached, the vibration stops, and a certain pressure is still applied to the two workpieces to cool and solidify the just heat-sealed part, thus forming a tight bond. According to the size of the workpiece (heat-sealing area), select different current outputs and energization times, and then complete the heat-sealing packaging under the condition of cooling and pressurization. It is an industrial machine.(Heat-sealing area)
It is widely used in product packaging in various industries. It is mainly used for the heat-sealing packaging of blister shells and paper cards. It is suitable for the blister sealing packaging of various exquisite toys, stationery, batteries, food, daily necessities, and small tools, making the packaged items moisture-proof, with a crystal-clear, transparent, and beautiful appearance, and improving the grade of the goods.
Performance and Features
1. The sealing process and effect of this product are similar to those of the high-frequency machine, but it has no interference with the adjacent household appliances and wireless devices of this machine and no harm to the human body.
2. It can be used for the sealing and packaging of PVC blister parts in different shapes and paper cards. After packaging, the product is clear, transparent, and elegant.
Specifications and Parameters
Model |
HS-50 |
HS-2030 |
Power supply |
220V 50HZ |
220V 50HZ |
Power |
2KW |
4KW |
Pressing plate area |
500*300MM |
510*760mm |
Working efficiency |
18 times/Min |
12 times/Min |
Mold |
One set (3 pairs), customized as required |
|
External dimensions |
L1090*W770*H1580MM |
L950*W965*H1580(mm) |
Weight |
100KG |
150KG |
Note: This machine needs to be used with a mold. The price of the mold will be quoted according to the customer's products and requirements.
Most of them are around 160 - 350 yuan.
In addition, this machine needs to be connected to an air supply. The air compressor should be above 1P.
