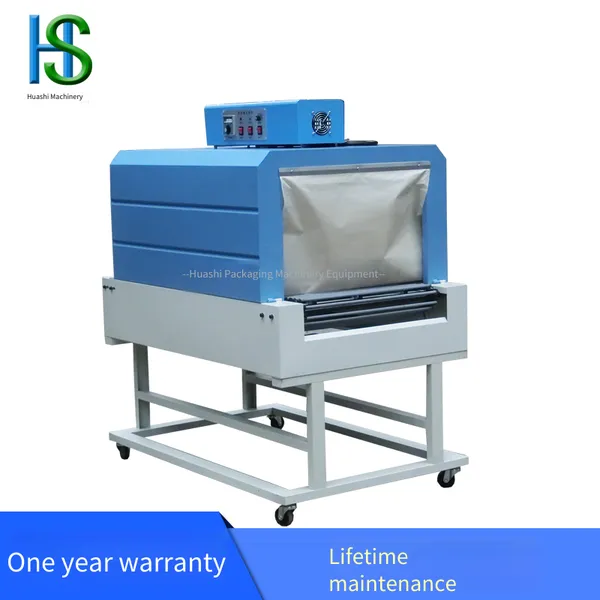

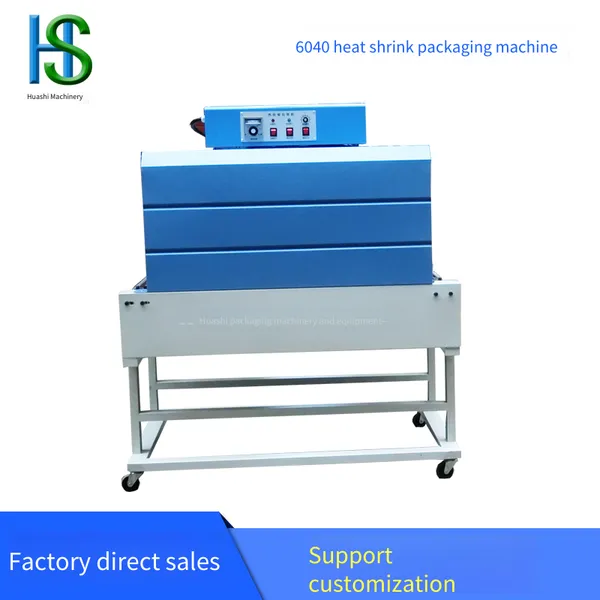

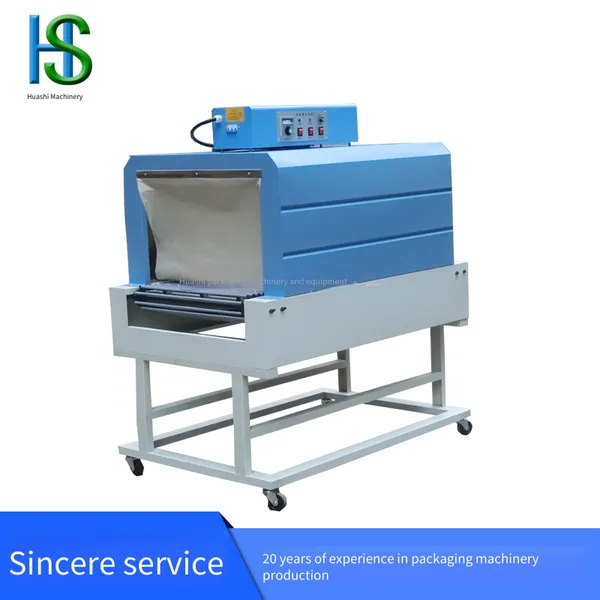

Heat shrink packaging is one of the more advanced packaging methods in the market at present. It uses shrink film to wrap around the product or package. After heating, the shrink film shrinks and tightly wraps the product or package, fully displaying the appearance of the item, improving the product's exhibition performance, increasing the beauty and sense of value. At the same time, the packaged items can be sealed, moisture-proof, dust-proof, and pollution-proof, and protect the goods from external impacts. The heat shrink packaging machine of Shenzhen Huashi Packaging & Machinery Equipment Co., Ltd. uses far-infrared rays for direct heating. It has electronic stepless speed change, which is stable and reliable. Huashi's uniquely designed automatic heating temperature control system ensures uniform and stable heating in the heat shrink chamber. The whole machine is safe and beautiful. The adjustable hot air circulation structure is suitable for all kinds of current heat shrink films (including color printing). High-quality electrical components ensure reliable operation. Thus, it provides a solid guarantee for constant quality, stable and reliable long-term continuous production. The whole machine is made of high-quality carbon steel and some stainless steel with fine workmanship, with a compact and reasonable structure, durable, and significant energy-saving effect.
Widely used in industries such as food, medicine, daily necessities, hardware tools, electronics, electrical appliances, gifts,
Mobile phone digital and other industries
Equipment Features
It uses far-infrared tubes for heating, which is energy-saving and efficient (saving more than 15% of energy); the shrinkage temperature and motor transmission speed are stable and controllable, with a wide adjustment range and instrument display. It has an original drum rotation device and can work continuously. This product features advanced design, stable and reliable performance, energy-saving and high efficiency, good shrinkage effect, novel and beautiful structure, and convenient operation and maintenance. It can be suitable for shrink packaging of any shrink film.
Operation Steps
A. Connect the power supply, turn on the power switch, and start the conveyor belt. The machine preheats for about 5 minutes. At this time, adjust the temperature of the upper and lower chambers according to the thickness of the shrink film, and adjust the knob and the conveying speed. After debugging to meet the usage requirements, shrink packaging can be carried out.
B. In actual operation, if there are too many wrinkles on the packaged item after shrinkage, the conveying speed can be reduced or the heating temperature can be increased. On the contrary, if there is
An over-shrinkage phenomenon, the temperature can be lowered or the conveying speed can be increased.
C. After the operation is completed, first turn off the heating switch, let the conveyor motor and the hot air motor continue to run for about 5 - 10 minutes, and then cut off the entire power supply.
Specifications:
Model |
HS-BS-6040 |
Power voltage |
Three-phase four-wire 380v 50-60hz |
Power |
12kw |
Transmission speed |
1-10m/min |
Shrinkage furnace size |
900*600*400 |
Transport load |
10kg |
External Dimensions |
1200*850*1500mm, |
Packaging Dimensions |
W600*H400mm |
Temperature |
0-300°C |
Shrink Film Name and Required Temperature
Film |
Name |
Heating Time (s) |
Shrink Oven Temperature |
PolyChloroethylene |
PVC |
5-10 |
120-150 |
Polypropylene |
PP |
6-12 |
130-170 |
Polyethylene |
PE |
10-60 |
150-200 |
POF |
8-10 |
130-170 |
