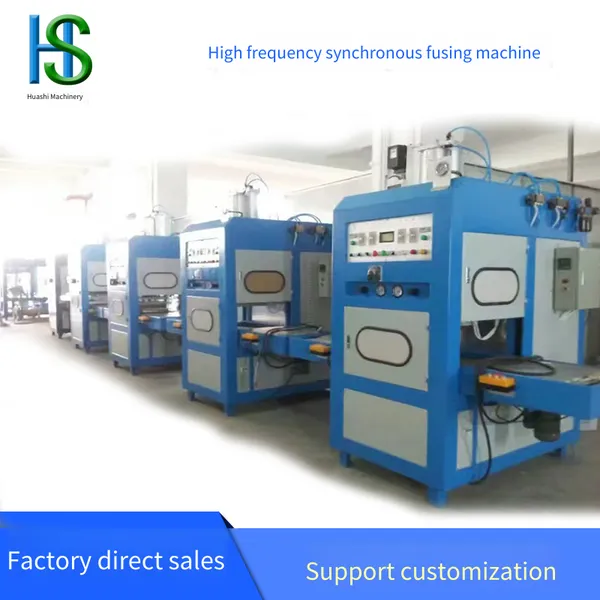

The high-frequency synchronous fusing machine generates a high-frequency electromagnetic field through the electron tube self-excited oscillator. The object to be processed is pressed between the upper and lower motors of the high-frequency electromagnetic field. Its internal molecules are excited and move at high speed, rubbing against each other to generate heat and melt. Under the pressure of the mold, the purpose of welding or embossing is achieved. It is an automatic machine that performs automatic fusing, cutting, and shaping through manual feeding. During operation, the material is manually placed in the position of the working mold. After pressing the start switch, the sliding plate of the bottom working mold automatically slides to the fixed working position. The cylinder of the machine head drives the working mold to descend. Through preheating with a time delay, high-frequency welding, cutting, and shaping, after the shaping is completed, the machine head rises, and the sliding plate of the bottom working mold automatically slides out. The finished product is taken out manually. During production, the time of each part can be freely set, and generally, one operation process takes 3 - 10 seconds. Applications: PVC, PU, PO, hot water bags, mobile phone leather cases, pressing LOGO, etc.
Features of the whole machine:
1.It adopts a sliding table or a multi-station turntable for automatic pushing and a multi-station operation of the disc, with accurate positioning;
2.The power range is 5 - 35KW, and the pressure range is 40 tons of oil pressure;
3.The working area can reach 800x1000mm
4.The fusing and trimming edges are smooth and feel excellent;
5.5557PLAmerican-style sensitive spark protection device to prevent the mold from being burned.
Scope of application:
1. apet, pet, petg environmentally friendly materials for double-sided blister packaging;
2. apet, pet, pe, pp environmentally friendly materials for folding box press trimming;
3.Toothbrush/tooth, blister hanging card packaging, paper card blister synchronous fusing;
4.Embossing and edge cutting of synthetic fabrics, leather, etc.;
5.Welding and fusing of various high - difficulty materials.
Structural composition:
It consists of a high - frequency system (including a high - frequency electric box and a high - frequency gantry frame), an automatic sliding table workbench system, special upper and lower templates, a high - frequency machine head protective cover, a 10T hydraulic system, etc. It uses a set of automatic sliding table high - frequency welding/cutting devices. After the workpiece raw materials are automatically placed into the high - frequency working position through the feeding sliding table boards on both sides for welding/cutting processes, the processed products are sent out from the high - frequency working position via the automatic sliding table boards, thus completing a complete process. At the same time, the operator continuously places the product raw materials according to the sliding table rhythm, and the high - frequency machine and the automatic sliding tables on both sides automatically complete the welding/cutting operations efficiently according to the operation rhythm. Users can freely set the operation time, generally 7.5 seconds per operation cycle.
Performance characteristics:
1.Stable frequency
The high - frequency machine strictly complies with the regulations of the international "International Special Committee on Radio Interference" (CISPR), uses the industrial frequency bands of 27.12/40.68MHZ, and is designed with a frequency stabilizer and a frequency magnetic leakage suppressor, causing minimal interference to external equipment.
2. Extra - strong output
The high - frequency machine uses a low - loss coaxial resonator, with a good output waveform, an extremely high quality factor, extra - strong output, and rapid welding.
3. Oscillation current stop setting
4. Spark suppression
The high - frequency machine is equipped with a high - sensitivity spark suppression circuit, which can accurately detect the unbalanced current that generates sparks. It quickly cuts off the oscillation circuit at the moment when sparks are generated to suppress the sparks, minimizing the damage to the mold, raw materials, and products.
5、Safety protection
The high-frequency machine is equipped with over-voltage and over-current protection devices. When the operation is abnormal, it can automatically cut off the high voltage to protect the oscillator tube and rectifier. At the same time, it can avoid frequency drift caused by improper operation.
I.Specifications:
Model |
HS-5000A |
HS-8000A |
High-frequency power |
5500W |
8000W |
Power supply voltage |
AC380V/4P |
|
Input power |
8KVA |
10.5KVA |
Rectifier tube |
Silicon diode |
|
Oscillation tube |
7T85RB |
7T69RB |
Pressure |
10T - 20T |
|
Electrode spacing |
150mm |
|
Welding head moving size |
70mm |
|
Table size |
350*500 |
|
Time adjustment |
0-10SAdjustable |
|
Operation mode |
Pneumatic control |
|
Widely used
