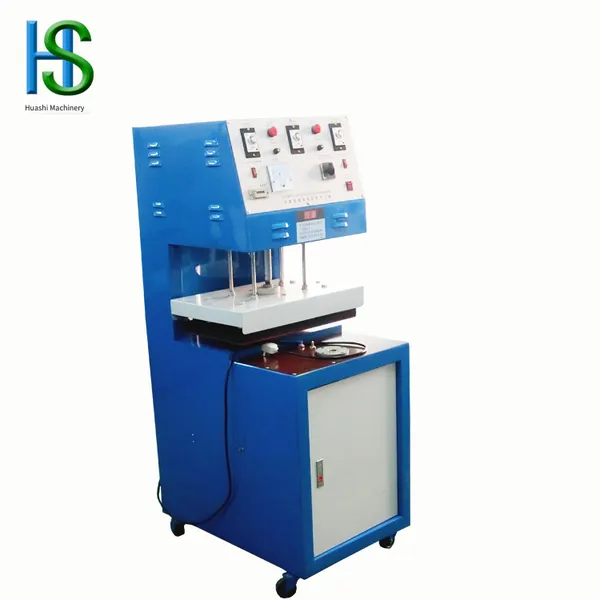

The blister sealing machine uses the frictional heat energy generated at the contact surface of two workpieces to be welded to melt the plastic. The heat energy comes from the reciprocating movement of one workpiece on the other surface with a certain displacement or amplitude under a certain pressure. Once the expected heat-sealing degree is reached, the vibration will stop, and at the same time, a certain pressure will still be applied to the two workpieces to cool and solidify the just heat-sealed part, thus forming a tight bond. According to the size of the workpiece (heat-sealing area), select different current outputs and power-on times, and then complete the heat-sealing packaging under the condition of cooling and pressurization. It is an industrial machine.(Heat-sealing area)

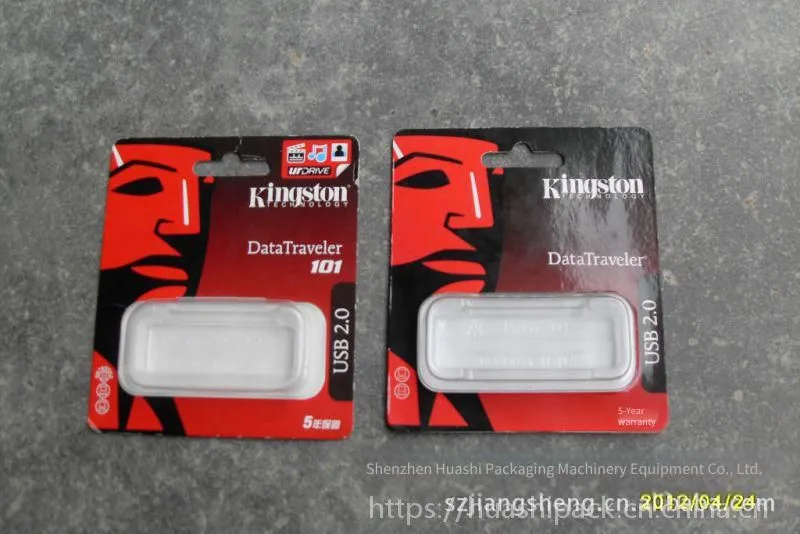

It is widely used in the product packaging of various industries. It is mainly used for the heat-sealing packaging of blister shells and paper cards. It is suitable for the blister sealing packaging of various exquisite toys, stationery, batteries, food, daily necessities, and small tools, making the packaged items moisture-proof, with a crystal-clear and transparent appearance, beautiful, and improving the grade of the goods.
2. Performance and Features
1. The sealing process and effect of this product are similar to those of the high-frequency machine, but it has no interference with the adjacent household appliances and wireless devices of this machine and no harm to the human body.

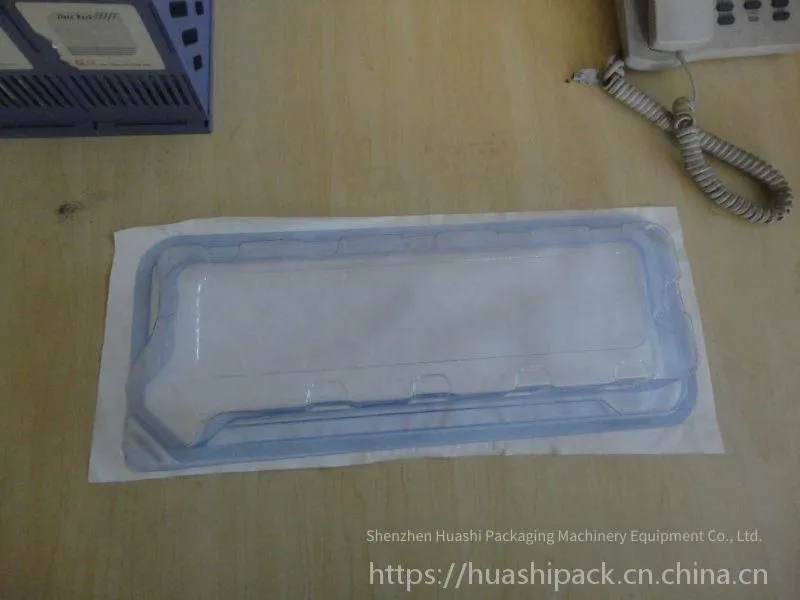

2. It can be used for the sealing and packaging of PVC blister parts and paper cards in different shapes. After packaging, the products are clear, transparent, and elegant.PVC
Specifications and Parameters
Model |
HS-50 |
HS-2030 |
Power supply |
220V 50HZ |
220V 50HZ |
Power |
2KW |
4KW |
Pressing plate area |
500*300MM |
510*760mm |
Working efficiency |
18times/Min |
12times/Min |
Mold |

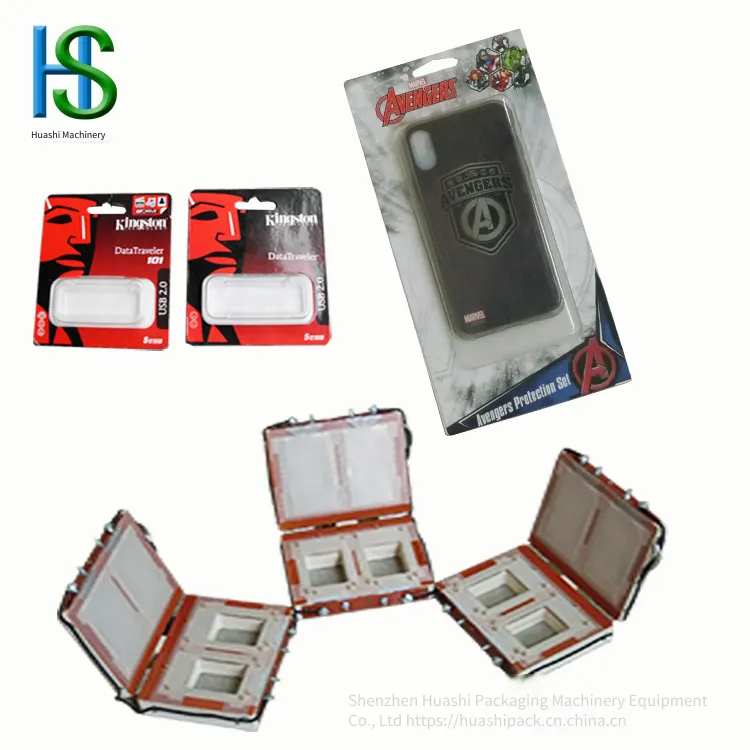

One set (3 pairs), customized as required |
|
Overall dimensions |
L1090*W770*H1580MM |
L950*W965*H1580(mm) |
Weight |
100KG |
150KG |

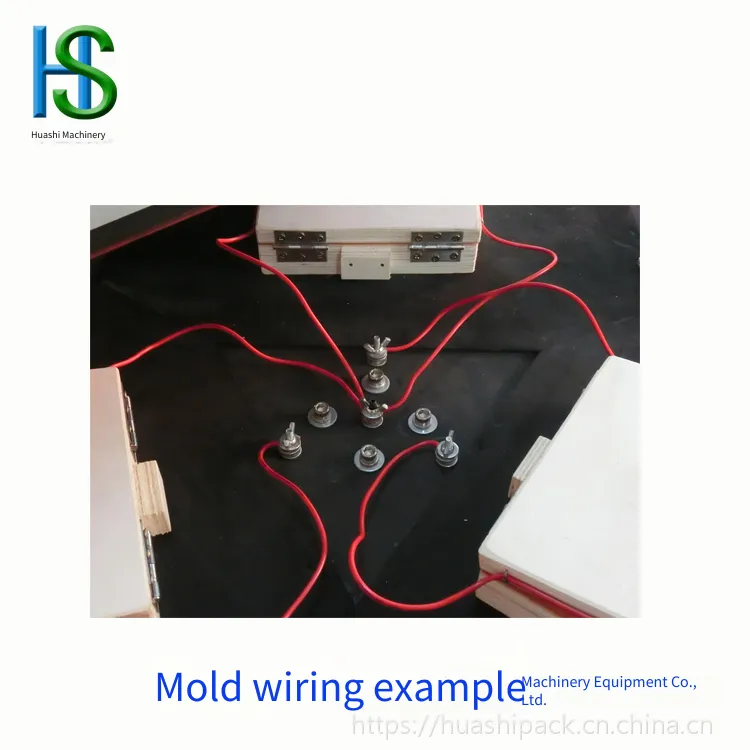

Note: This machine needs to be used with a mold. The price of the mold will be quoted according to the customer's products and requirements.
Most of them are around 160 - 350 yuan.
In addition, this machine needs to be connected to an air supply. An air compressor of 1P or above is required.
