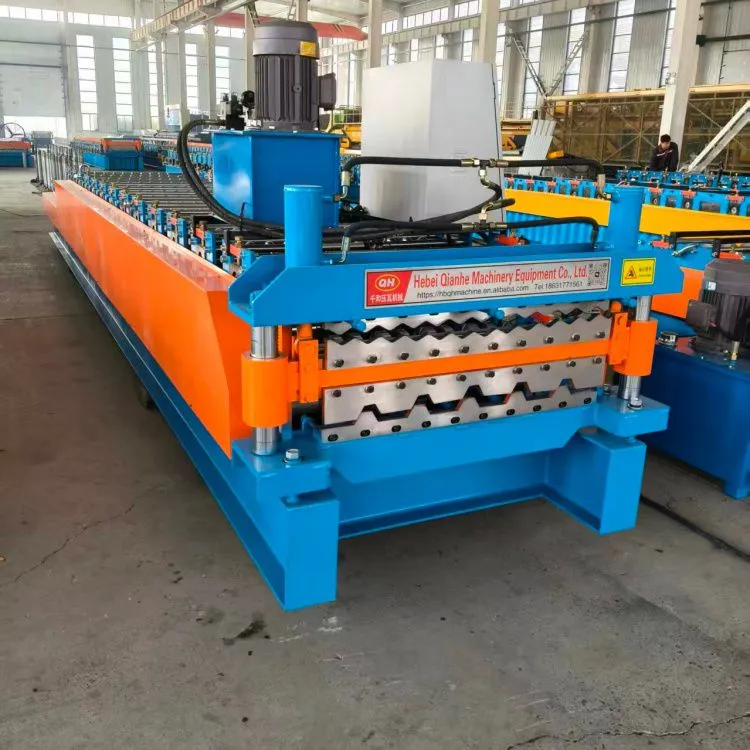

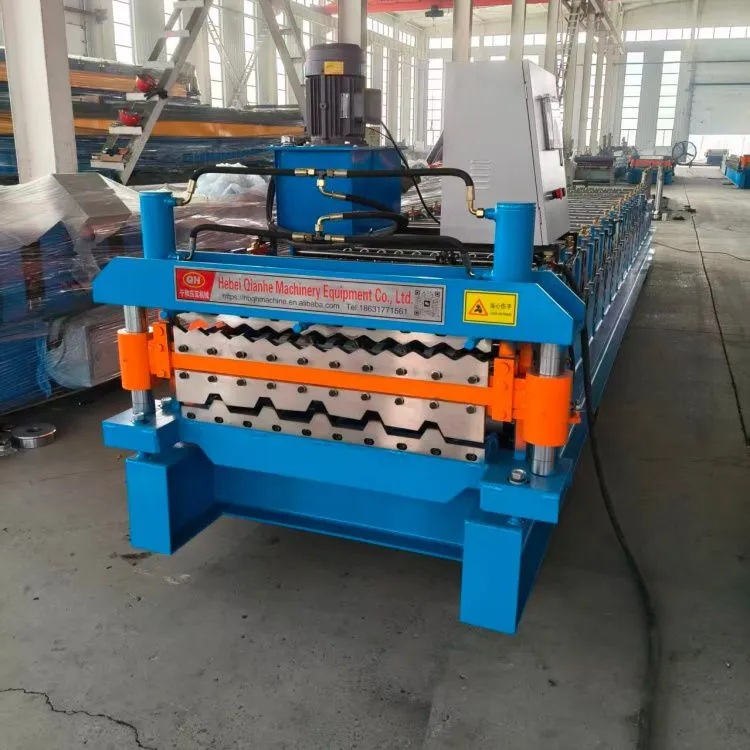

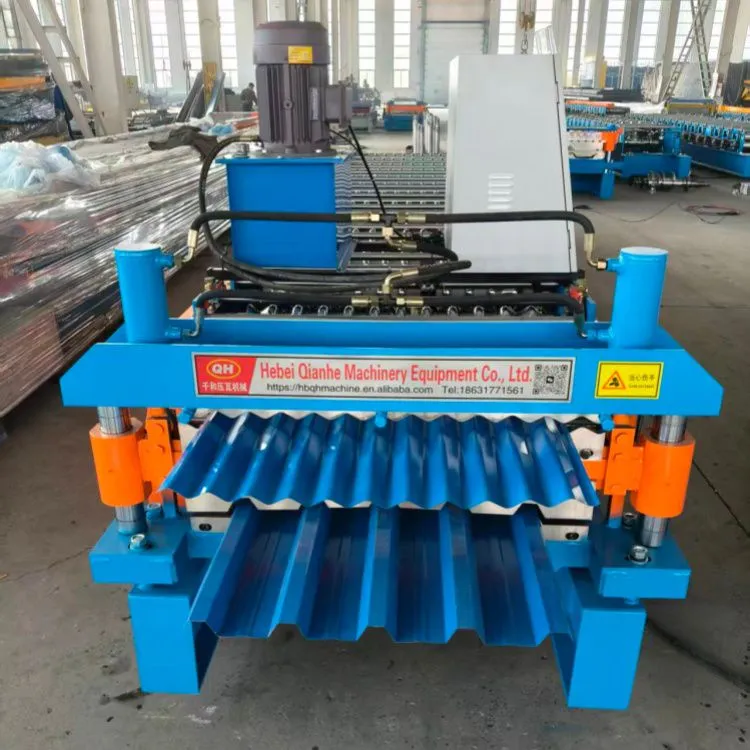

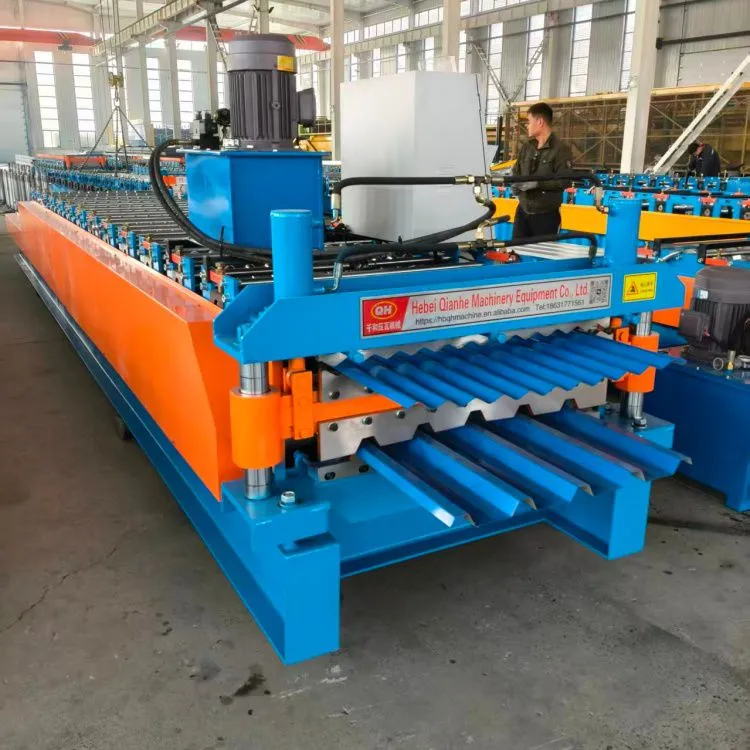

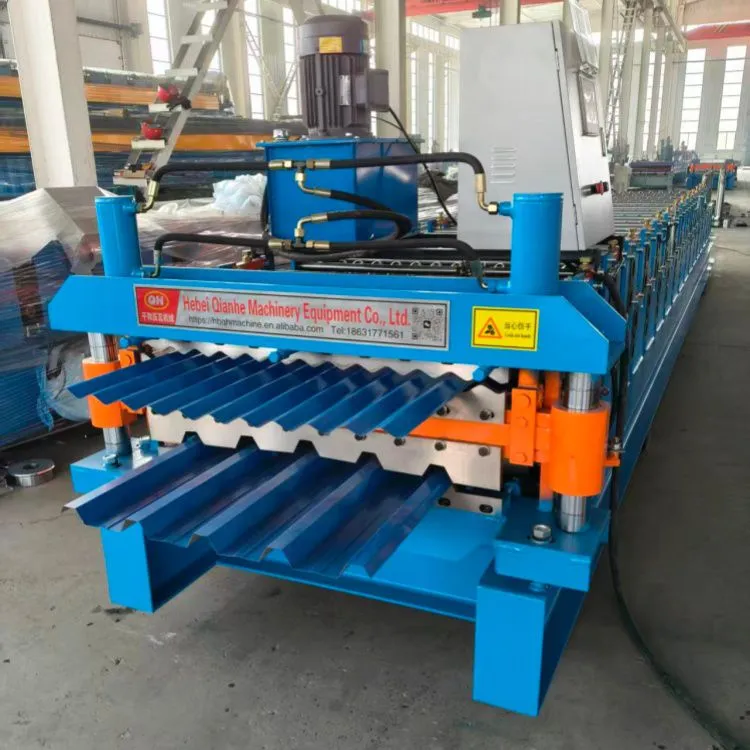

Help Center686-762 IBR Trapezoidal Corrugated Tile Double Layer Pressing Machine South Africa Hot Sale
Product Spotlights
Related Products
-
Roof Panel Bending Machine, Arc-shaped Roof Panel Manufacturing Machine, Fully Automatic Arching MachineUS$ 5800 - 6000MOQ: 1 Combo -
Color Steel Tile Bending Machine, Arched Shed Panel Arching Machine, Arc-shaped Bending Machine EquipmentUS$ 1 - 5500MOQ: 1 Piece
-
Antique Building Roof Glazed Tile Forming Machine, Roof Slab Roller Press MachineUS$ 14620 - 15000MOQ: 1 Set
-
Triple Layer Tile Machine, Roof Corrugated Board Roll Forming Machine, Multifunctional One Machine, Multi-purposeUS$ 13650 - 13800MOQ: 1 Set
-
Zimbabwe Metal Tile Roof Panel Forming Machine, Roofing Roll Forming MachineUS$ 16000 - 16500MOQ: 1 Combo
Technical Parameters of Floor Slab Roll Forming Machine
1.Total length of equipment:10m Width: 1.2mHeight:1.2m
2. Motor power: 15KW - K series
3. Production speed: 16-18 meters per minute
4. Roller pressing shaft diameter: 80mm shaft, additional embossing shaft diameter 90mm
5. Transmission method: Quenched 2-inch chain sprocket transmission
6. Compression wheel: Made of bearing steel precision machining and quenching treatment
7. Whole machine forming shaft: a total of 18 rows (with two upper and three lower
feeding levels)
8. Cutting method: hydraulic cutting, made of cr12 steel molybdenum vanadiun material,
quenched at high temperature
9. Equipment chassis: 350 # H steel (national standard)
10. Equipment stand: 20mm;
11. Thickness of pressure plate:1.5-3mm
12.Material of pressure plate: galvanized plate, stainless steel plate
13.Adopting a fully automatic computer control system,controlled by Xinjie PLC, with an
18.5KW frequency converter, it can achieve automated production of the whole machine.
Batch, workpiece length, quantity, etc. can be set.
14. Hydraulic system: using a 7.5kw hydraulic pump station
15. Equipment weight: 6 tons
