1. Equipment Overview

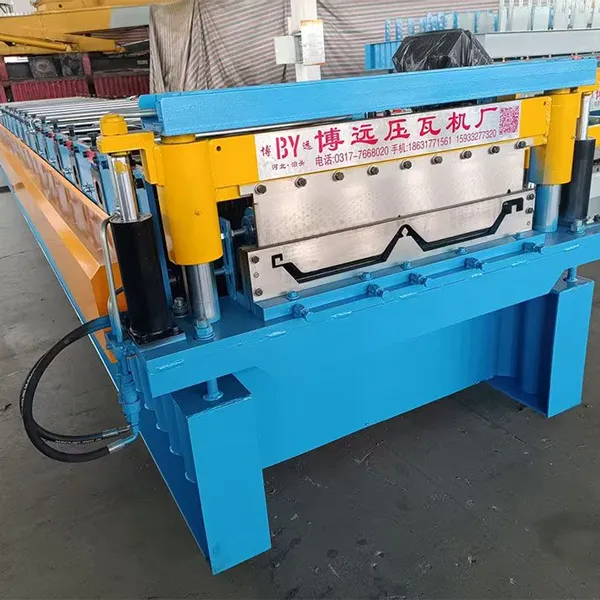

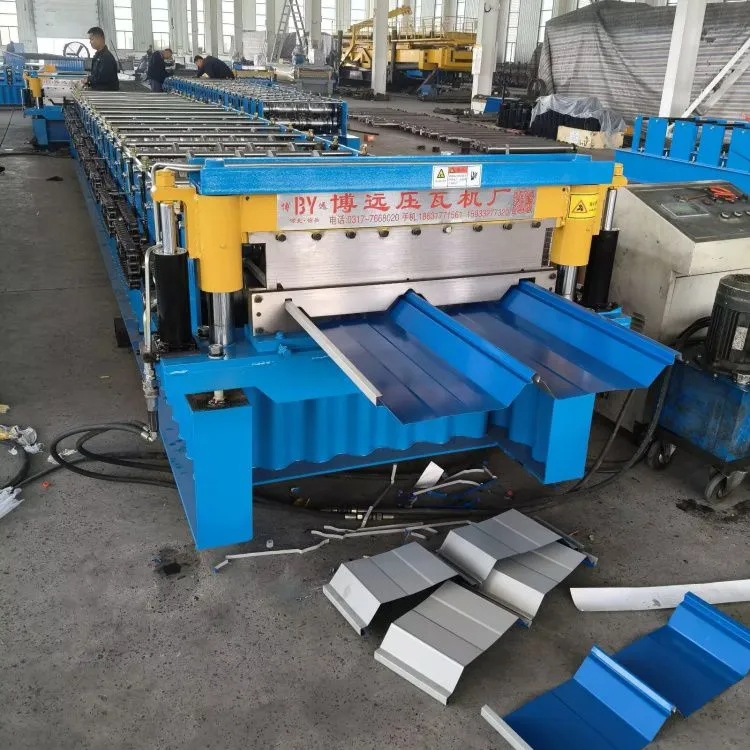

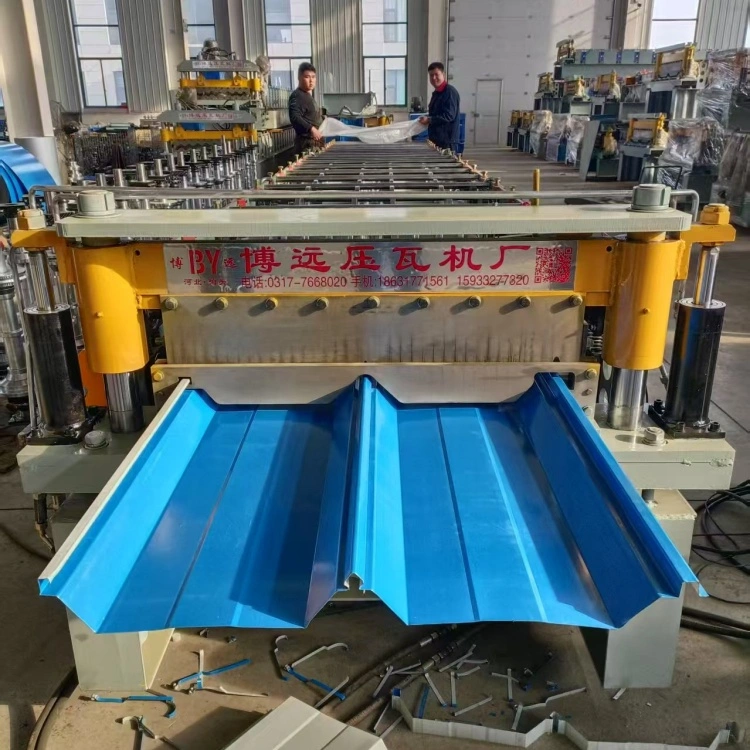

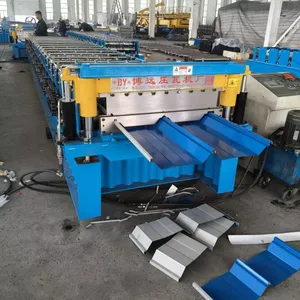

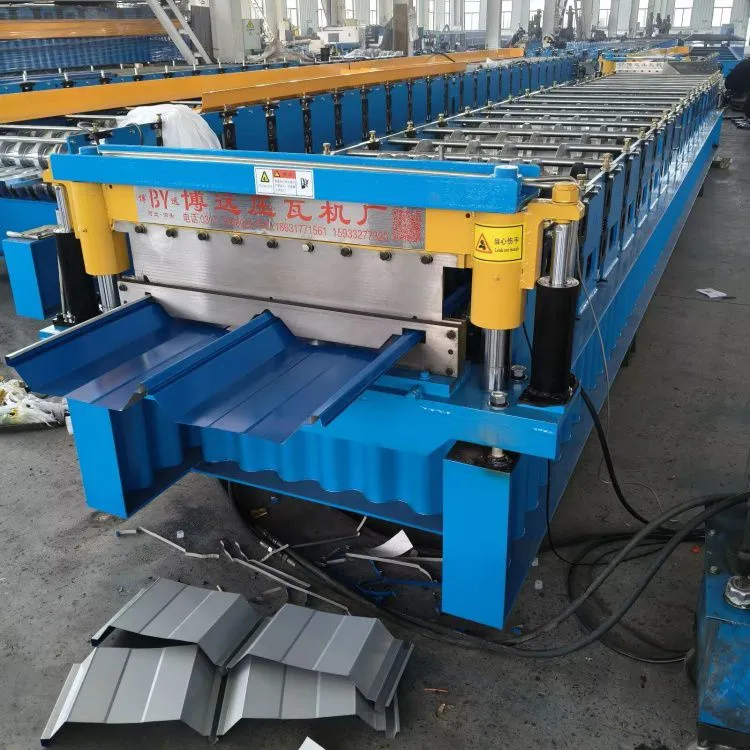

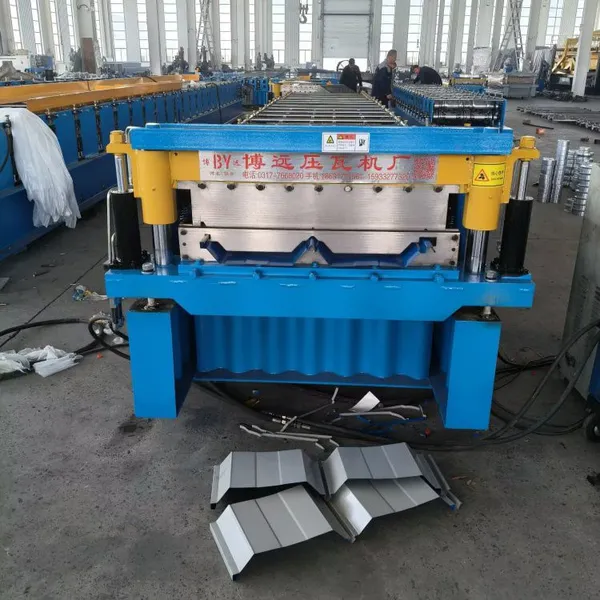

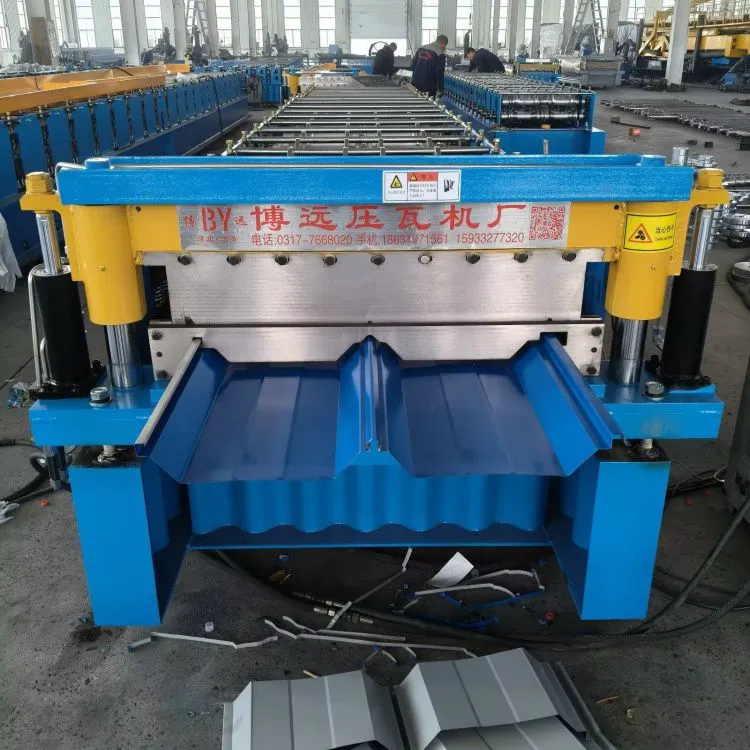

The vertical seam roof panel forming machine, widely recognized as a standing seam roof panel roll forming machine, is the core equipment for manufacturing metal roofing systems. Through a series of precisely arranged rollers, this machine gradually cold-bends metal coils into panels with raised interlocking seams. This screw-free standing seam design fundamentally eliminates the risk of leakage caused by traditional drilling, making it widely used in large-span stadiums, airport terminals, and high-end commercial buildings.
2. Core Configuration & Structure
A standard vertical seam roof panel forming line typically includes the following key components:
Decoiling & Guiding System: Equipped with a hydraulic decoiler and an entry positioning device to ensure the metal sheet enters the main forming machine smoothly and accurately.
Precision Forming Main Machine: The core rollers are made of high-strength materials and precision-machined. Through multiple continuous rolling passes, the flat sheet is processed into standing seam profiles (such as YX65, YX76 series) with excellent structural strength.
Smart PLC Control System: Utilizing advanced industrial computer control, it supports precise length setting (with tolerances typically controlled within ±1mm) and achieves fully automatic cut-to-length shearing.
Efficient Cutting & Seaming System: Equipped with a hydraulic flying cut system or electric pull shear for smooth, waste-free cuts. Some advanced models can also integrate automatic seaming functions.
3. Technical Advantages
Superior Waterproof & Wind Resistance: Panels are connected via vertical seam interlocking without penetrating the panel surface, providing excellent sealing and resistance to wind uplift.
High Efficiency & Flexibility: Supports both on-site portable production and factory prefabrication. Panel lengths can be customized infinitely according to building spans, significantly reducing on-site splicing workload.
Outstanding Shaping Capability: Beyond standard rectangular panels, the equipment can be paired with curving machines to process inner arcs, outer arcs, and fan-shaped panels, meeting the diverse design requirements of modern architecture.
