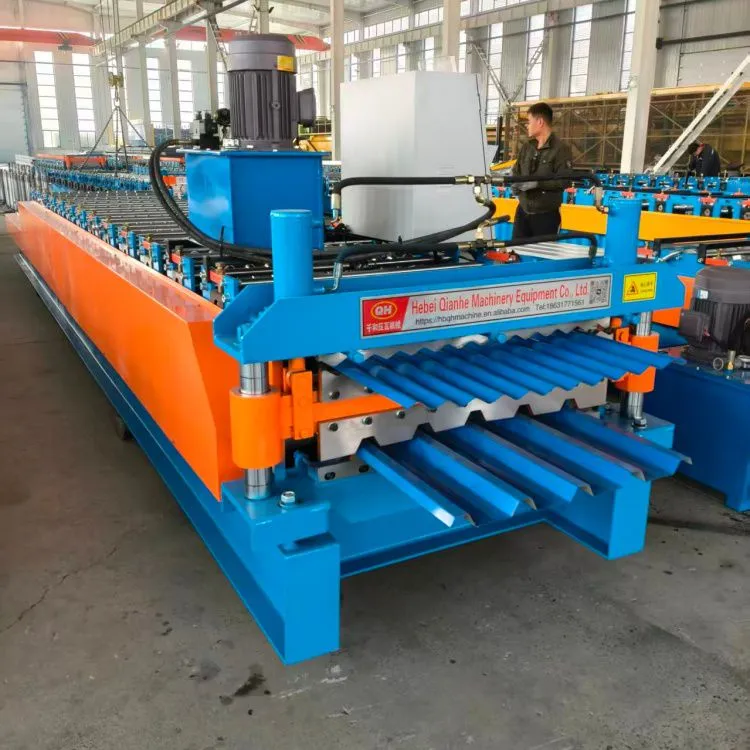

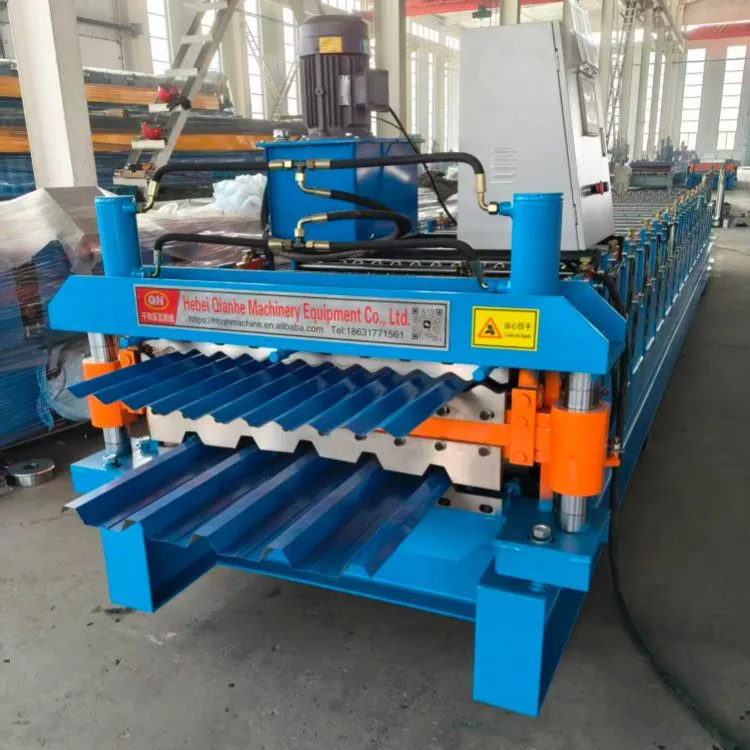

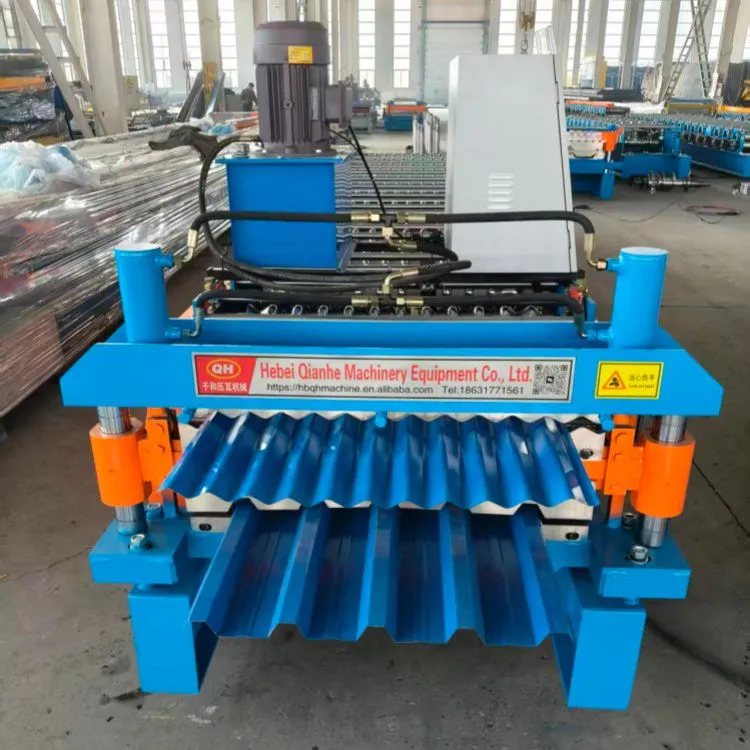

Introduction to 686-762 Double-Layer Roll Forming Machine for South Africa
The 686-762 double-layer color steel tile forming machine is a highly efficient metal cold roll forming equipment specifically designed to meet the market demands of South Africa and Africa. Featuring a double-layer structure, this cost-effective machine can produce both 686 trapezoidal sheets and 762 corrugated sheets. The production line consists of decoiling, roll forming, and post-forming cutting. The finished products are characterized by a smooth appearance and uniform paint texture.
Key Technical Specifications & Features:
Dimensions & Weight: Installation dimensions are approximately 6500mm × 1300mm × 1300mm, with a total weight of about 4 tons.
Power System: Main motor power is 4kw, hydraulic shearing power is 3kw, and hydraulic station pressure ranges from 10-12mpa.
Forming Process: The 686 model utilizes 11 rows of rollers, while the 762 model uses 13 rows. The shafts are made of 45# steel (75mm diameter) with hard chrome-plated forming rollers. The transmission system uses a 6-point sprocket, chain drive, and planetary cycloid reducer, ensuring smooth and noiseless operation.
Smart Control: Equipped with a high-intelligence PLC control system (e.g., Delta), it offers easy operation, high precision (length accuracy
Material Compatibility: Suitable for color-coated or galvanized steel sheets with a thickness of 0.27mm - 0.8mm.
The 686 model is highly recognized and widely used in the South African and broader African markets. With its stable structure and reliable operation, this machine is an ideal choice for local color steel tile production.
