1、 Model Definition
02: Wide cross-section heavy-duty series, wider and stronger load-bearing than 01 with the same inner diameter.
E: Enhanced raceway and roller structure, resistant to impact, wear, and higher load density.
B: Split cylindrical roller bearings.
195: nominal inner diameter 195 mm.
M: Brass solid holder, high temperature resistance, deformation resistance, suitable for long-term heavy-duty continuous operation.
2、 Standard size (same series standard specifications)
Inner diameter: 195 mm
Outer diameter: approximately 325 mm
Width: Approximately 125 mm
Weight: Approximately 48 kg
3、 Product Features
Material: GCr15 high carbon chromium bearing steel, with high quenching hardness, wear resistance and fatigue resistance.

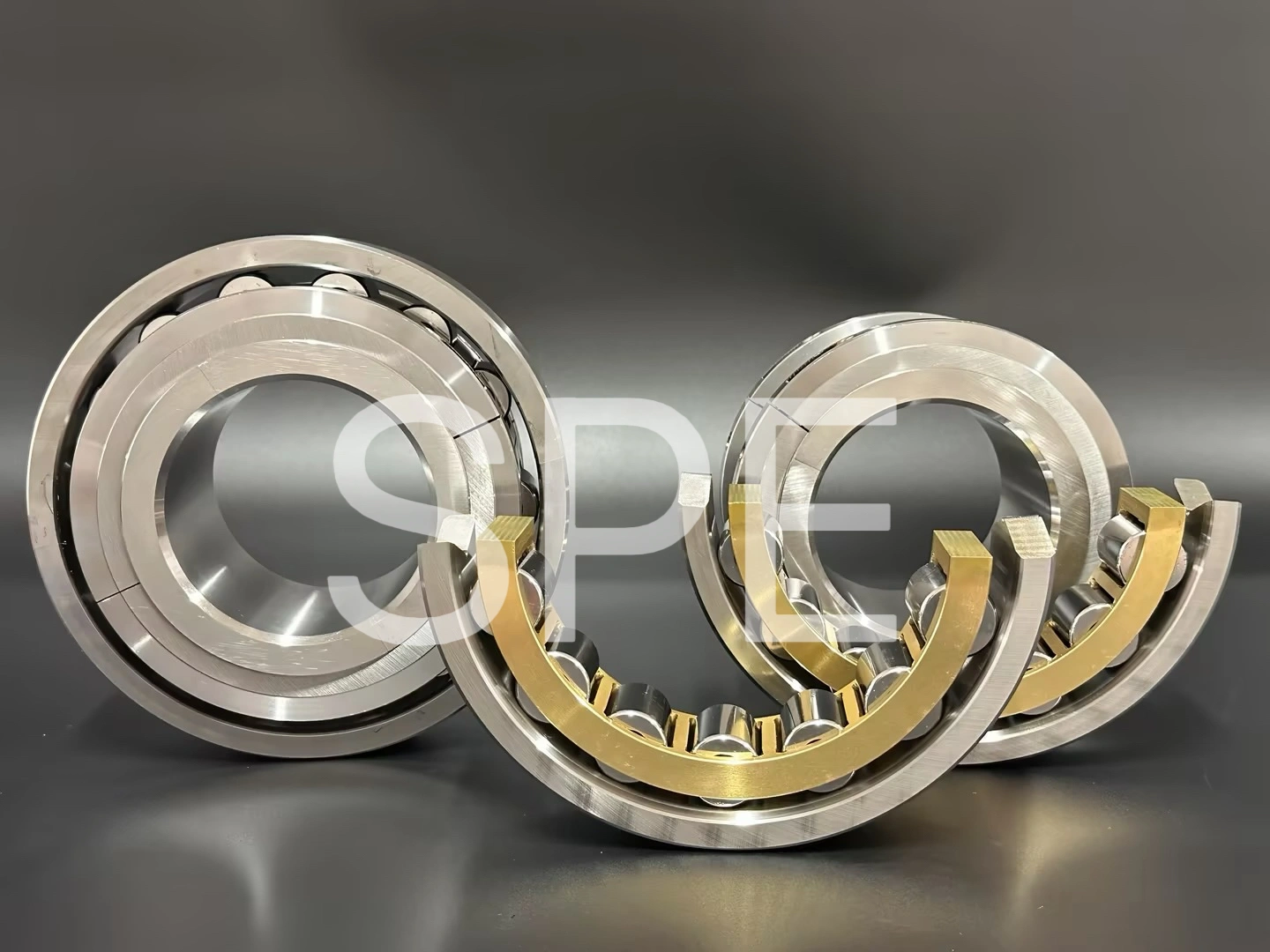

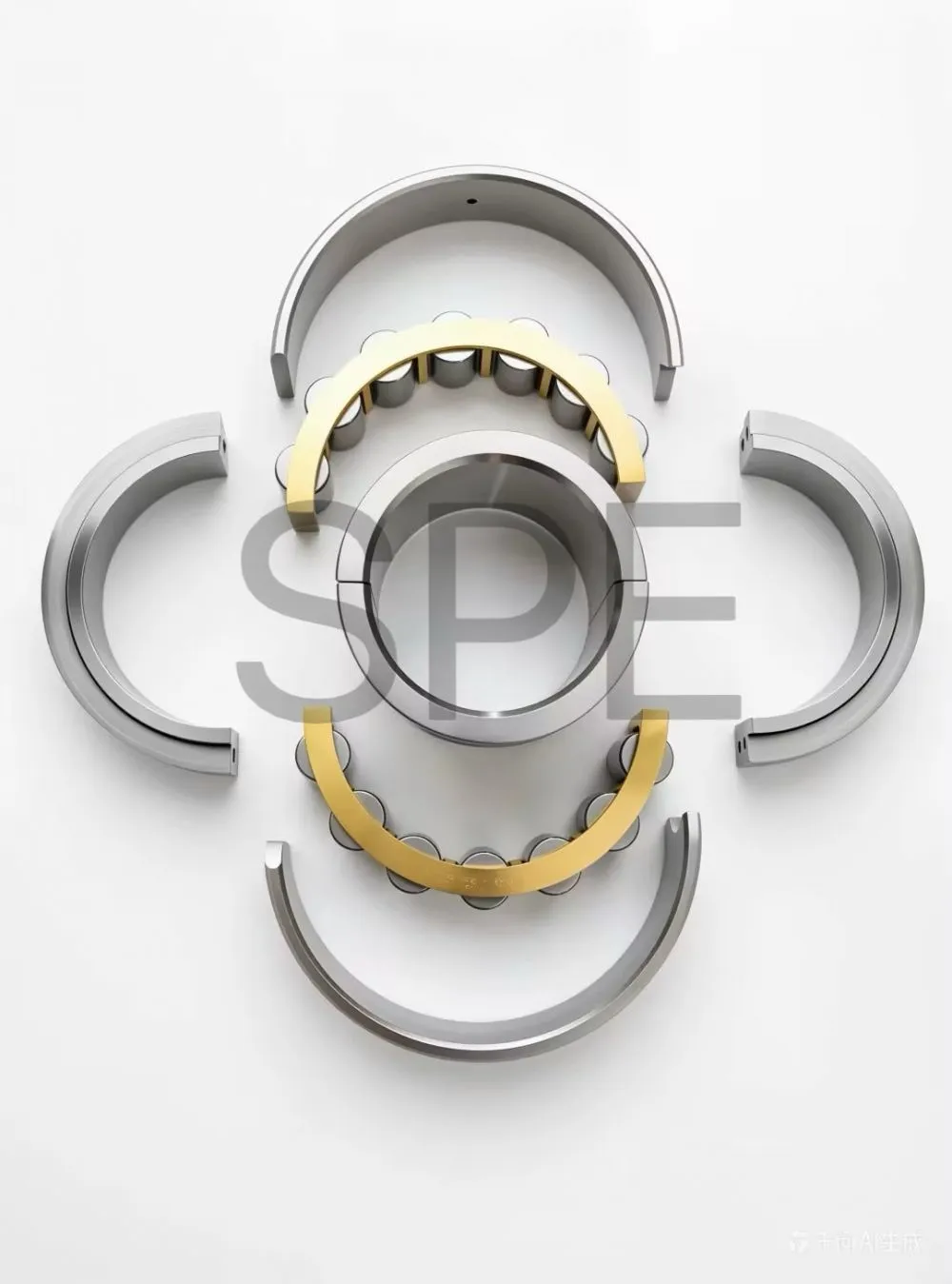

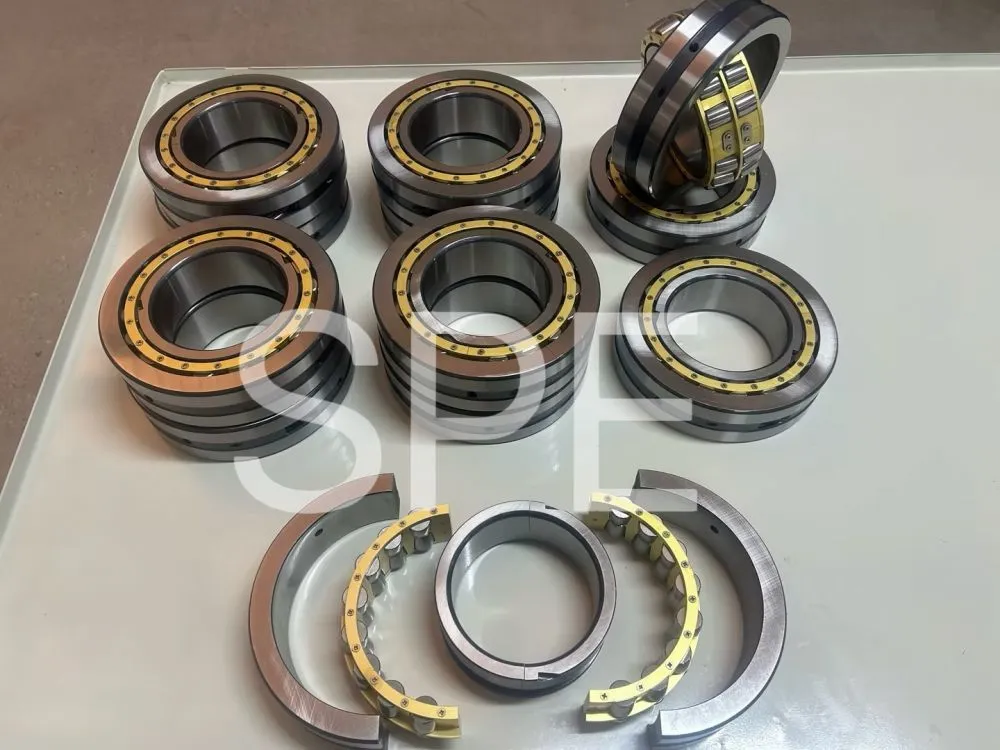

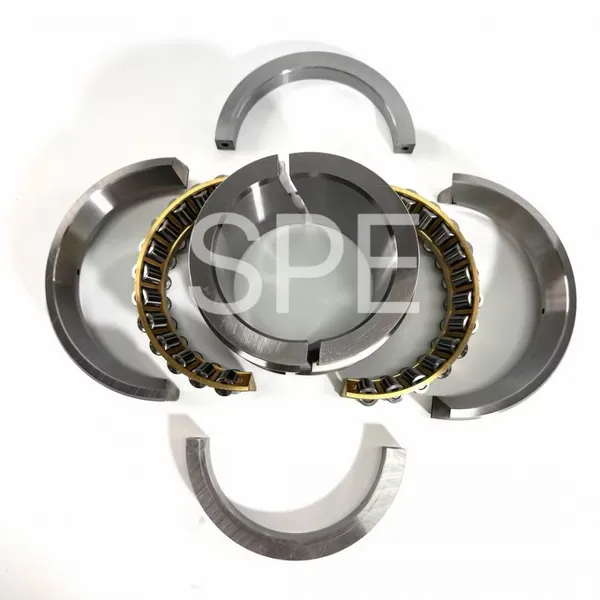

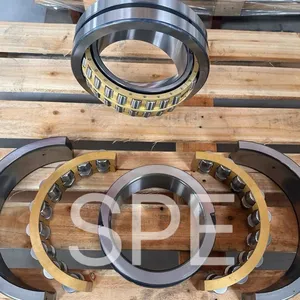

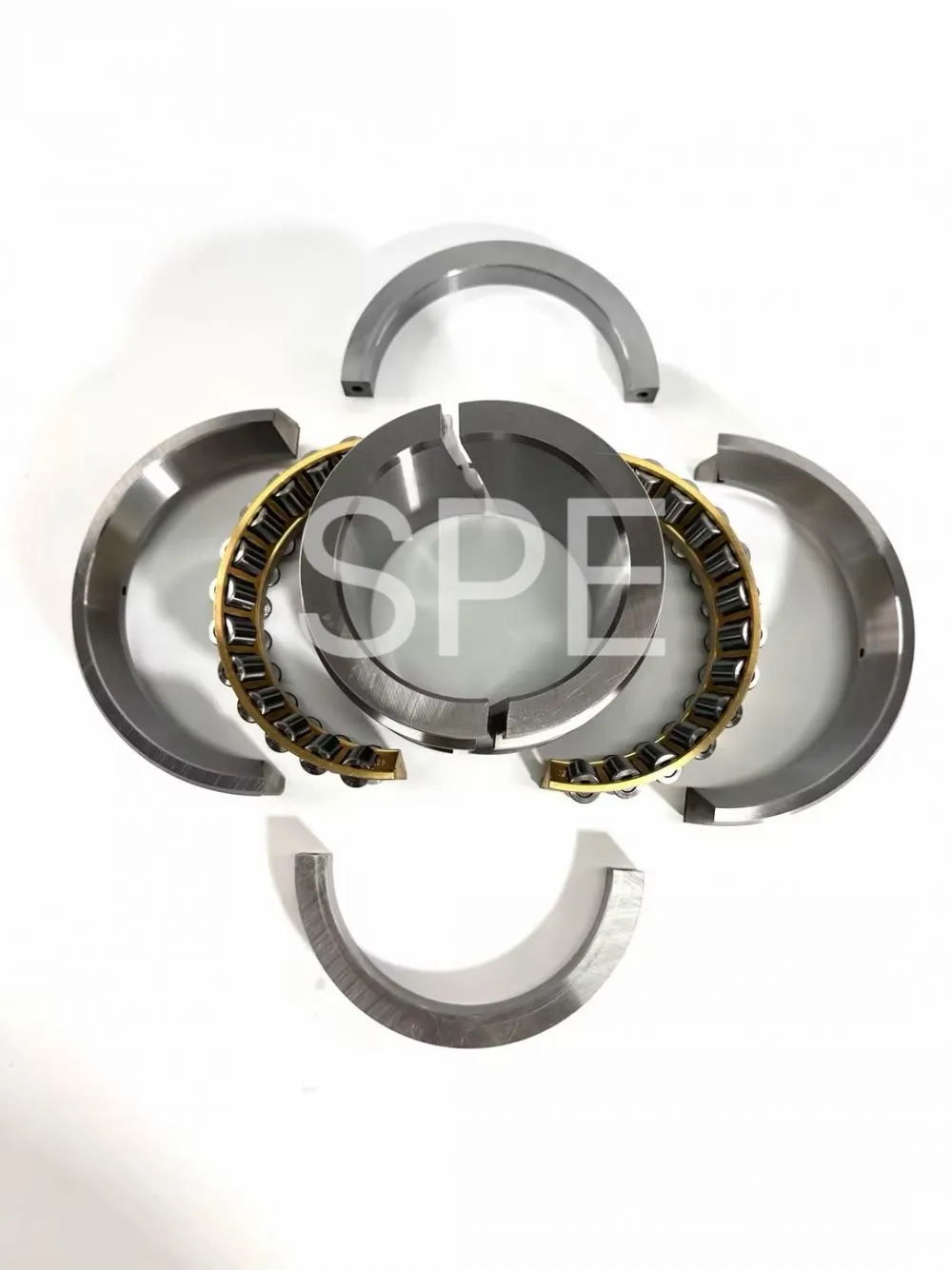

Structure: 180 ° fully split in half, inner and outer rings, rollers, and retainers can all be separated.
Working condition adaptation: harsh environments such as low-speed heavy load, alternating impact, dust and humidity.
Temperature resistance range: -30 ℃ to 180 ℃.
Self centering: Equipped with micro centering ability, compatible with slight misalignment of the shaft system during installation.
4、 Core advantages
02 Wide body heavy-duty design
The cross-section is wide and thick, with a large number of rollers and a large load-bearing area. The same inner diameter can bear much higher loads than 01EB195M, making it suitable for heavy-duty support of large equipment.
Fully split non removable shaft
No need to disassemble the main shaft, coupling or gear, it can be directly opened and disassembled on the shaft, greatly reducing downtime and maintenance costs.
E-type enhanced upgrade
The raceway and rollers have been reinforced with impact resistance and wear resistance, and the overall service life is longer than that of ordinary 02B195M.

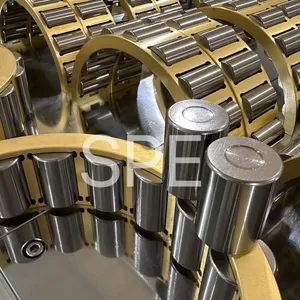

Brass solid holder
Rigid enough, heat-resistant, and resistant to compression, it is not easy to deform or break during long-term 24-hour continuous heavy load operation.
Can be equipped with sealing protection
Optional labyrinth seals and skeleton oil seals are available to effectively prevent dust, water, and mineral powder impurities from entering the interior of the bearing.
5、 Applicable device scenarios
Mining: large ball mills, crushers, scraper conveyors, coal mining machine rocker arms.
Metallurgy/Cement: Rotary Kiln, Rolling Mill Auxiliary Shaft System, Large Conveyor Transmission.
Port/Crane: Cranes, bucket wheel machines, large winch walking mechanisms.
Other: Heavy load support points for ships, papermaking, grain and oil heavy industries with a shaft diameter of 195mm, limited disassembly and assembly space, and requiring online maintenance.
6、 Installation and maintenance
Clean the mating surface between the journal and the bearing seat, align the two halves of the bearing seam, and tighten the joint bolts diagonally and evenly.
Add extreme pressure heavy-duty grease and fill two-thirds of the cavity.
Daily regular grease replacement inspections, if there is a high temperature rise, abnormal noise, or abnormal vibration, promptly check the bolt pre tightening force and sealing status.
