1、 Model Definition
02: Wide cross-section heavy-duty series, which is wider and has a larger load-bearing capacity compared to the 01 series with the same inner diameter
E: Enhanced raceway roller structure, resistant to impact, wear, and higher load capacity
B: Split cylindrical roller bearing
135: nominal inner diameter 135mm
M: Brass solid holder, resistant to high temperature, compression, heavy load and not easily deformed
2、 Standard specifications and dimensions
Inner diameter: 135 mm
Outer diameter: 230 mm
Width: 88 mm
3、 Basic parameter characteristics
Material: GCr15 high carbon chromium bearing steel, with high quenching hardness, wear resistance and fatigue resistance

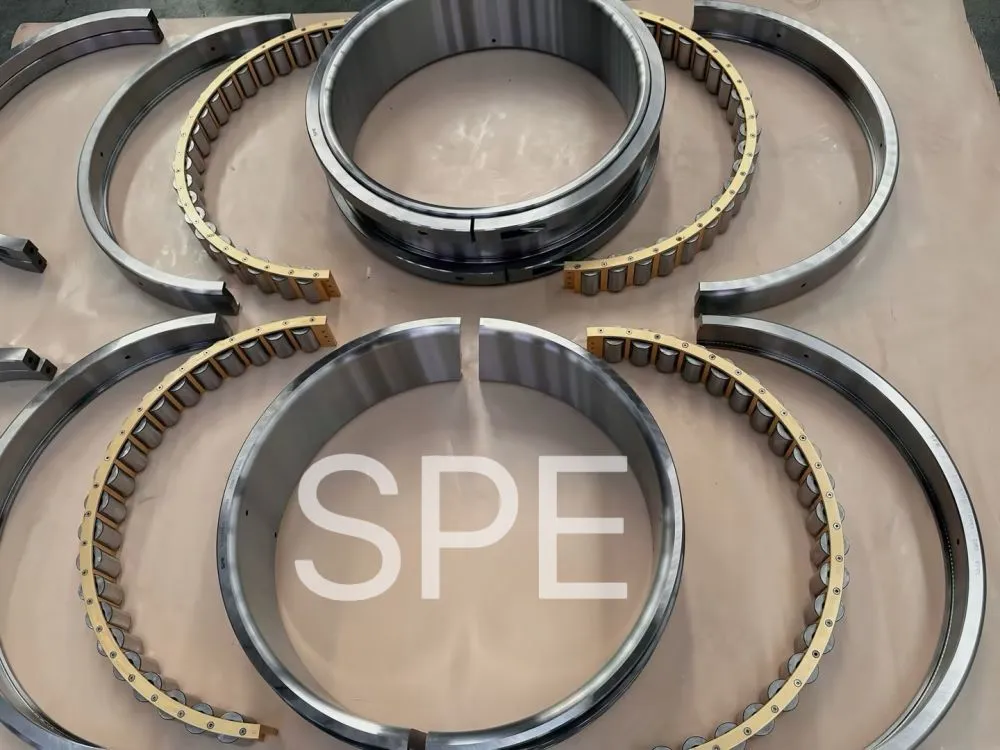

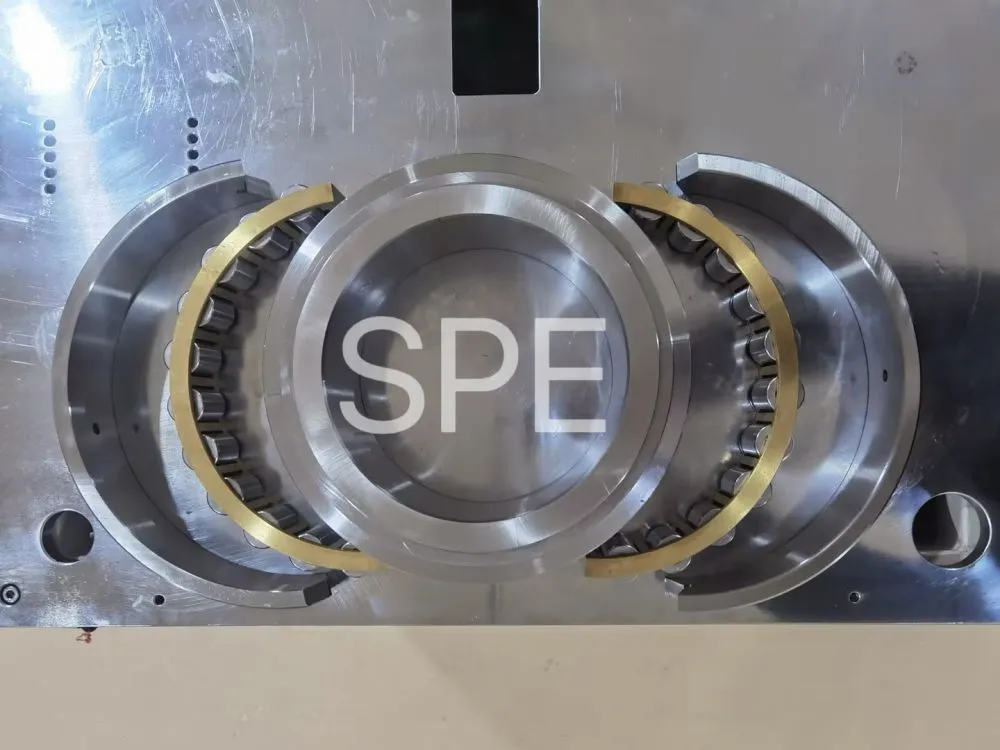

Structure: 180 ° fully split in half, inner and outer rings, rollers, and cage can be separated as a whole
Applicable working conditions: low-speed heavy load, alternating impact, dust and humidity, harsh industrial and mining conditions
Temperature resistance range: -30 ℃ to 180 ℃
Equipped with a trace of self-aligning ability, it can compensate for slight misalignment of the shaft system during installation
4、 Core advantages
02 Wide body heavy load
Widening section design, with multiple roller arrangements and a large load-bearing area, capable of carrying much more than 01EB135M with the same inner diameter, suitable for heavy-duty equipment.
Free disassembly shaft online maintenance
No need to disassemble the main shaft or move the coupling gears, simply open and disassemble on the shaft, saving labor and reducing downtime losses.
E-shaped enhanced version
The raceway and roller strengthening process is impact resistant, wear-resistant, and has a longer service life than ordinary 02B135M.
Brass solid holder
Strong rigidity, high temperature resistance, and compression resistance, suitable for 24-hour continuous heavy load operation of equipment, not easily deformed and not loose.
Can be equipped with seals
Optional labyrinth seal and skeleton oil seal, dustproof, waterproof, and anti impurity invasion, suitable for harsh mining, metallurgy, and cement sites.
5、 Applicable device scenarios
Small and medium-sized mining crushers, ball mills, and scraper conveyor machinery; Metallurgical conveying rollers, cement transmission auxiliary shafts; Equipment for papermaking, grain and oil, light industry and heavy industry; All heavy-duty support positions with a 135mm shaft diameter, limited installation space, inconvenient disassembly and assembly, and requiring online maintenance.
6、 Installation and maintenance
Clean the contact surface between the journal and the bearing seat, align the two halves of the bearing seam, and tighten the splicing bolts diagonally and evenly; Add extreme pressure heavy-duty grease and fill two-thirds of the chamber with it; Regularly perform grease replacement inspections, pay attention to temperature rise, abnormal noise, and vibration, and promptly check the pre tightening force and sealing status of bolts.
