1、 Model Definition
02: Wide cross-section heavy-duty series, wider and stronger load-bearing than 01 with the same inner diameter
E: Enhanced raceway roller structure, resistant to impact, wear, and higher load capacity
B: Split cylindrical roller bearing
45: nominal inner diameter 45mm
M: Brass solid holder, resistant to high temperature, compression, heavy load and not easily deformed
2、 Standard size
Inner diameter: 45mm
Outer diameter: 85mm
Width: 42mm
3、 Basic characteristics
Material: GCr15 high carbon chromium bearing steel, with high quenching hardness, wear resistance and fatigue resistance

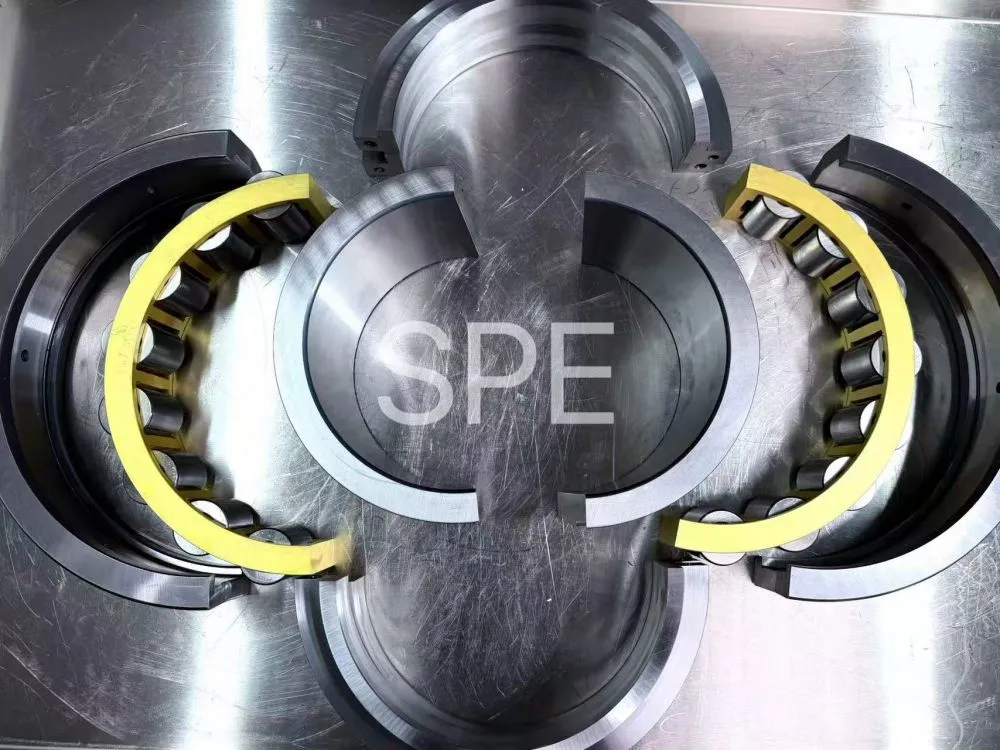

Structure: 180 ° fully split in half, with the inner and outer rings, rollers, and cage completely detachable
Operating conditions: Suitable for low-speed heavy load, slight impact, dust and moisture small industrial and mining equipment
Temperature resistance: -30 ℃ to 180 ℃
Equipped with micro centering, it can compensate for slight misalignment of the shaft system during installation
4、 Core advantages
Small inner diameter wide body heavy load
02 widened section design, reasonable roller arrangement, large stress area, small shaft diameter can also withstand heavy loads, and its performance is better than the 01EB series with the same inner diameter.
Split non removable shaft
No need to disassemble the spindle or coupling, direct opening and closing installation and replacement, easy maintenance, no need to disassemble the whole machine, reducing downtime costs.
E-type reinforced structure
Optimization and strengthening of raceway and rollers, impact resistance and wear resistance, with a longer service life than ordinary 02B45M.
Brass solid holder
Good rigidity, high temperature resistance, compression resistance, suitable for long-term continuous operation, not easily deformed, and not loose.
Can be equipped with seals
Optional labyrinth seal and skeleton oil seal, dustproof, waterproof, and anti impurity, suitable for humid and dusty working conditions.
5、 Applicable scenarios
Small mining machinery, micro crushers, and small winch transmissions; Light industry conveying equipment, textile machinery, grain and oil processing, general small-scale heavy industry; All heavy-duty support positions with a shaft diameter of 45mm, compact space, inconvenient disassembly and assembly, and requiring online maintenance.
6、 Installation and maintenance
Align and sew the two halves of the bearing, and evenly tighten the splicing bolts diagonally; Add extreme pressure heavy-duty grease and fill two-thirds of the chamber with it; Regularly perform grease replacement inspections, pay attention to temperature rise, abnormal noise, and vibration, and promptly check the pre tightening force and sealing status of bolts.
