1、 Model Definition
02: Wide cross-section heavy-duty series, wider and capable of carrying greater loads than the 01 model with the same inner diameter
E: Enhanced raceway roller structure, resistant to impact, wear, and higher load capacity
B: Split cylindrical roller bearing
55: nominal inner diameter 55mm
M: Brass solid holder, resistant to high temperature, compression, heavy load and not easily deformed
2、 Standard size
Inner diameter: 55mm
Outer diameter: 95mm
Width: 48mm
3、 Basic characteristics
Material: GCr15 high carbon chromium bearing steel, quenched high hardness, wear-resistant and fatigue resistant

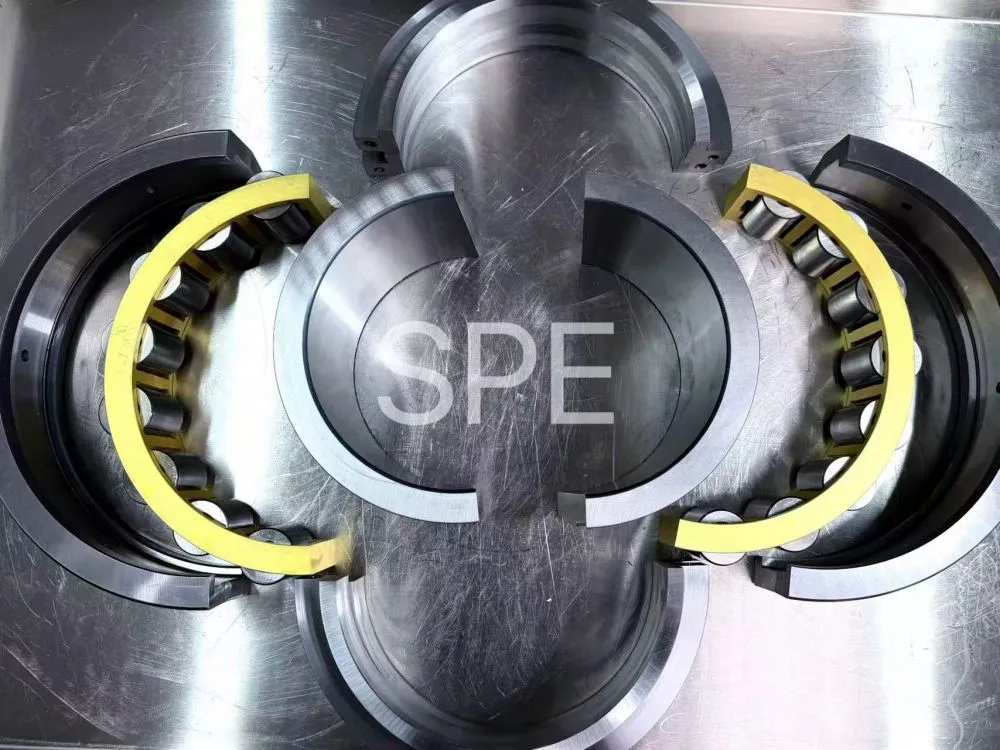

Structure: 180 ° fully split in half, with the inner and outer rings, rollers, and cage completely detachable
Operating conditions: Suitable for low-speed heavy load, slight alternating impact, dust and moisture in small and medium-sized industrial and mining areas
Temperature resistance: -30 ℃ to 180 ℃
Comes with micro centering, compatible with minor misalignment of shaft systems during installation
4、 Core advantages
02 Wide body heavy load
Widening section design, with a large number of rollers and a large force bearing area, and a small inner diameter that also has strong load-bearing capacity, far exceeding the 01EB series of the same specifications.
Split non removable shaft
No need to disassemble the main shaft or move the coupling gears, simply open and close on the shaft for quick maintenance, labor-saving, and less downtime.
E-shaped enhanced version
The raceway and rollers are optimized and strengthened, with impact resistance, wear resistance, and a longer service life than ordinary 02B55M.
Brass retaining frame
Rigid enough, heat-resistant, and resistant to compression, suitable for long-term continuous operation of equipment, not easily deformed, and not loose.
Can be equipped with sealing
Optional labyrinth seal and skeleton oil seal, dustproof, waterproof, and anti impurity entry, suitable for harsh working conditions.
5、 Applicable scenarios
Small mining machinery, micro crushers, and small winch transmissions; Light industry conveying equipment, textile machinery, grain and oil processing, general heavy industry; All heavy-duty support positions with a shaft diameter of 55mm, small installation space, inconvenient disassembly and assembly, and requiring online maintenance.
