Product Overview

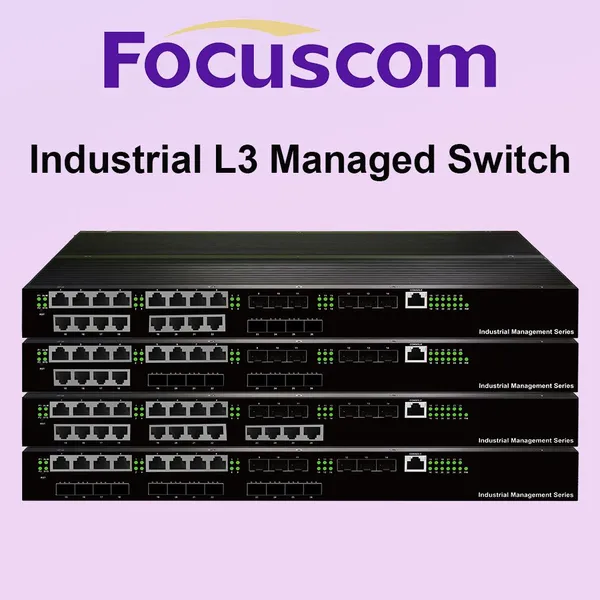

The Focuscom S3000 Series is a carrier-grade 1U 19-inch rackmount industrial Ethernet switch offering full Layer 2 and Layer 3 management capabilities. Specifically designed for high-density, high-performance, and easy-to-install network environments, this series is the ideal backbone solution for large-scale industrial applications, providing exceptional reliability and efficiency for the Industrial Internet of Things (IIoT).
Core Advantages
High Port Density & Versatility: Provides up to 26 Gigabit ports (e.g., 20RJ45 + 6SFP), making it perfect for complex industrial network aggregation and high-traffic scenarios.
Professional L3 Management: Supports advanced routing protocols including OSPF, RIP, and Static Routing, enabling seamless network segmentation and high-speed data forwarding across different subnets.
Extreme Industrial Durability: Features a fanless, fully sealed hardware design that excels in harsh environments. It is resistant to electromagnetic interference, salt spray, vibration, and extreme temperatures ranging from -40°C to +75°C.
Network Self-Healing: Supports the G.8032 (ERPS) industrial redundancy protocol, ensuring a network recovery convergence time of less than 50ms for maximum uptime.
Flexible Power Options: Supports single or dual redundant power inputs (85~264VAC or 100~300VDC) to ensure 24/7 continuous operation in mission-critical facilities.
Technical Specifications
Interface: Up to 26 ports (combining Gigabit RJ45 and 100/1000M SFP slots).
Management: Visualized Web GUI, SNMP v1/v2/v3, CLI (Telnet/Console), RMON, and LLDP.
L2 Features: 4K VLAN (802.1Q), IGMP Snooping, Port Mirroring, QoS (802.1p/DSCP), and DHCP Snooping.
Security: 802.1x authentication, user hierarchical password protection, and comprehensive ACL rule configurations.
Structure: Standard 19-inch 1U rackmount, high-strength metal shell.
Ordering Information (Typical Models)
S3000-20T6S-IR: 20Gigabit RJ45 + 6Gigabit SFP.
S3000-16T10S-IR: 16Gigabit RJ45 + 10Gigabit SFP.
S3000-12T14S-IR: 12Gigabit RJ45 + 14Gigabit SFP.
S3000-8T18S-IR: 8Gigabit RJ45 + 18Gigabit SFP.
Application Scenarios
Perfectly suited for Industrial Automation, Traffic Control Systems, Power Grid Automation, Oil & Gas Monitoring, and Large-scale Campus Networks.
