Product Overview

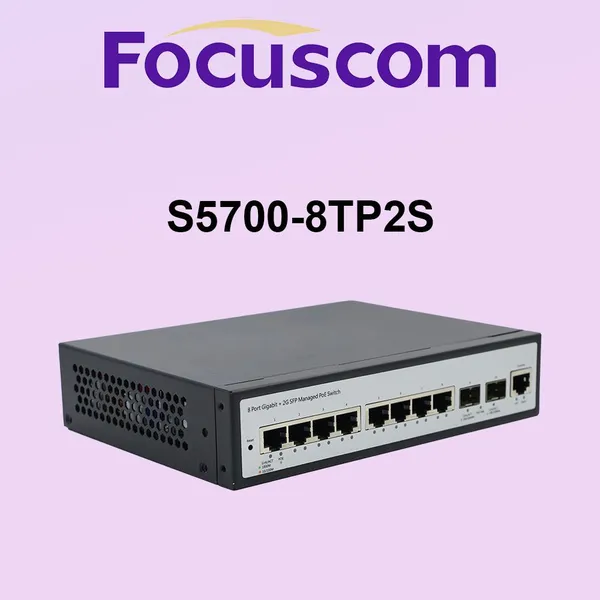

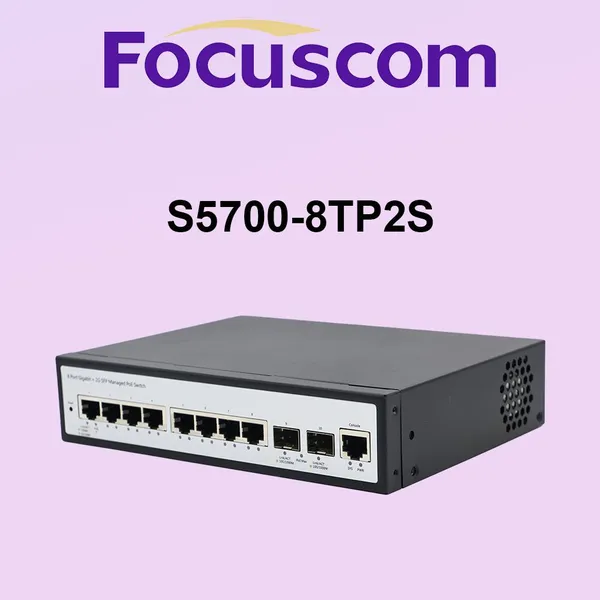

The S5700-8TP2S-P0E is a next-generation energy-saving terrestrial switch developed to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. Designed for enterprise networks and small-to-medium businesses, it provides a reliable, secure, and easy-to-maintain solution for modern connectivity.
Key Features & Technical Specifications
Port Configuration: Equipped with 8 fixed 10/100/1000Base-T Ethernet ports and 2 Gigabit SFP (Small Form-factor Pluggable) uplink ports for high-speed fiber connectivity.
PoE+ Capability: Supports IEEE 802.3at (PoE+) and 802.3af standard, allowing the switch to power devices like VoIP phones, wireless access points, and surveillance cameras directly through the data cable.
Layer 2 Performance: Features advanced hardware processing power with support for VLANs, Spanning Tree Protocol (STP/RSTP/MSTP), and link aggregation for optimized traffic flow.
Intelligent Management: Supports CLI, Telnet, and SNMP, providing administrators with comprehensive control and real-time monitoring of network health.
Reliability and Security
The S5700-8TP2S-P0E provides enhanced security features, including:
Access Control Lists (ACLs): Filter traffic based on MAC or IP addresses.
DoS Attack Defense: Protects the network against common cyber threats.
Storm Control: Prevents broadcast, multicast, and unknown unicast storms from crashing the network.
Energy-Efficient Design
Utilizing innovative energy-saving technology, this switch significantly reduces power consumption without compromising performance. It supports port dormancy (sleeping ports) when no link is active, contributing to a lower Total Cost of Ownership (TCO).
Technical Table
| Feature | Specification |
|---|---|
| Switching Capacity | 20 Gbps |
| Forwarding Performance | 15 Mpps |
| PoE Power Budget | 124W |
| Dimensions (W x D x H) | 320mm x 220mm x 43.6mm |
| VLAN Support | Up to 4K VLANs |
Target Application
Ideal for enterprise branch offices, hotel lobbies, and smart classroom environments where silent operation, compact size, and Power over Ethernet are essential for streamlining hardware deployments.
