ZeYe specializes in the R&D and manufacturing of metal coil processing equipment, including Cut-to-Length Lines, Slitting Lines, Rotary Shears, Moving Shears, Combined Slitting & Cut-to-Length Production Lines, Slitting & Recoiling Lines, Cut-to-Length Compound Lines, and Leveling Machines.
To date, our production lines have been exported to over 30 countries and regions across the globe, including Australia, Mexico, France, Italy, Russia, India, Brazil, South Korea, Ukraine, Vietnam, the Philippines, Uzbekistan, Algeria, Ethiopia, Thailand, the UAE, Sudan, Myanmar, and the Republic of the Congo.
We warmly welcome you to visit our factory!

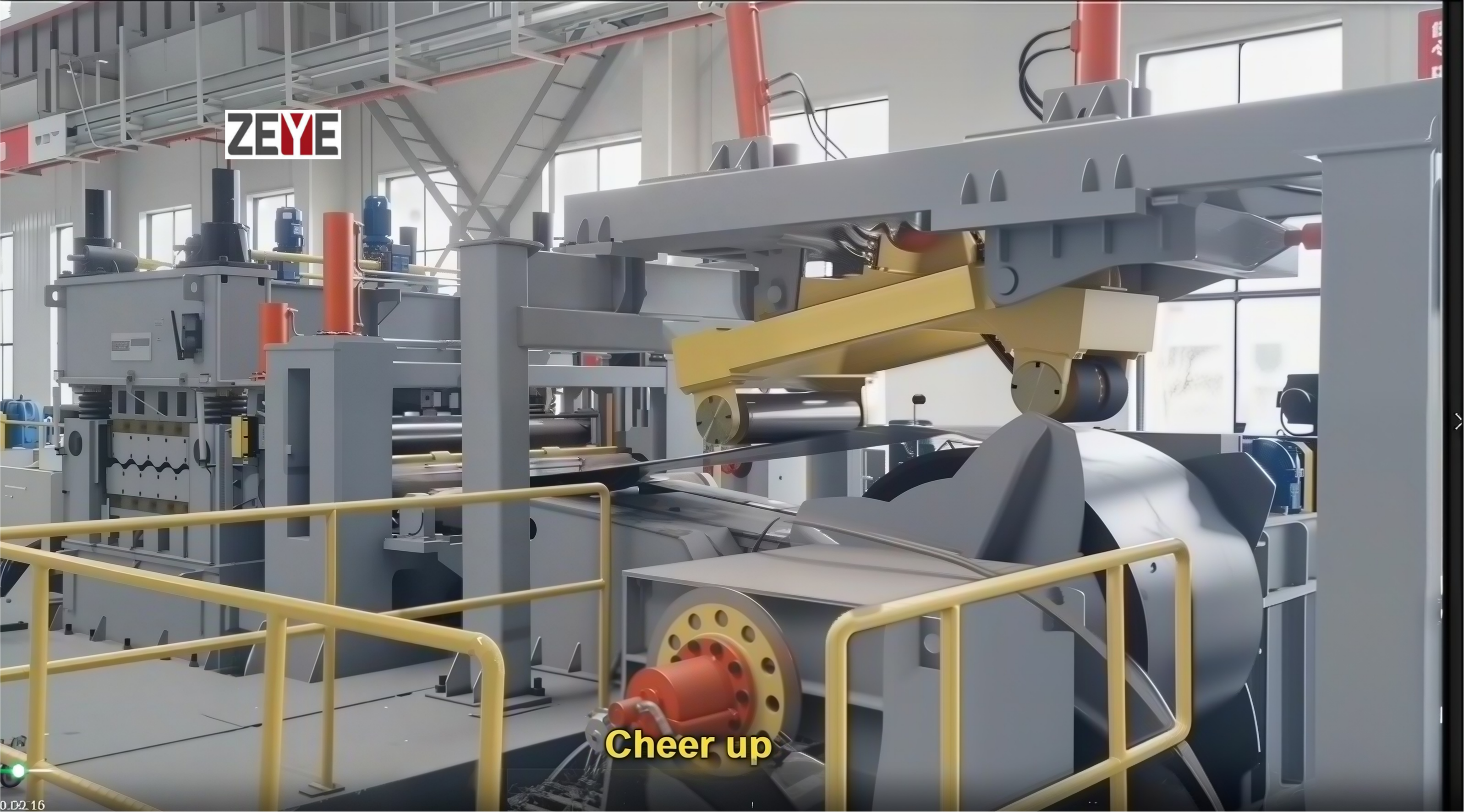

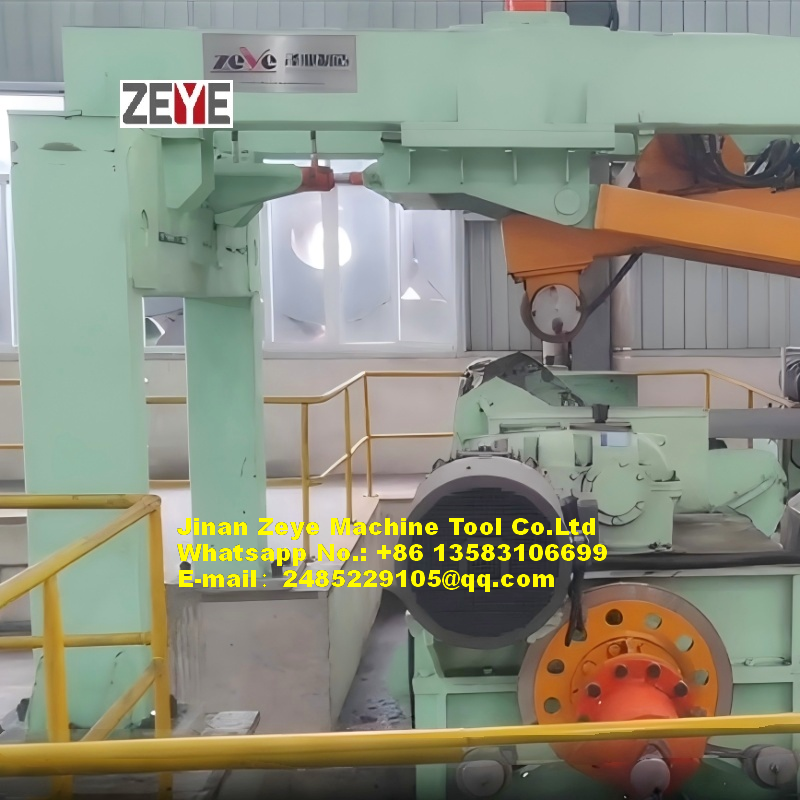

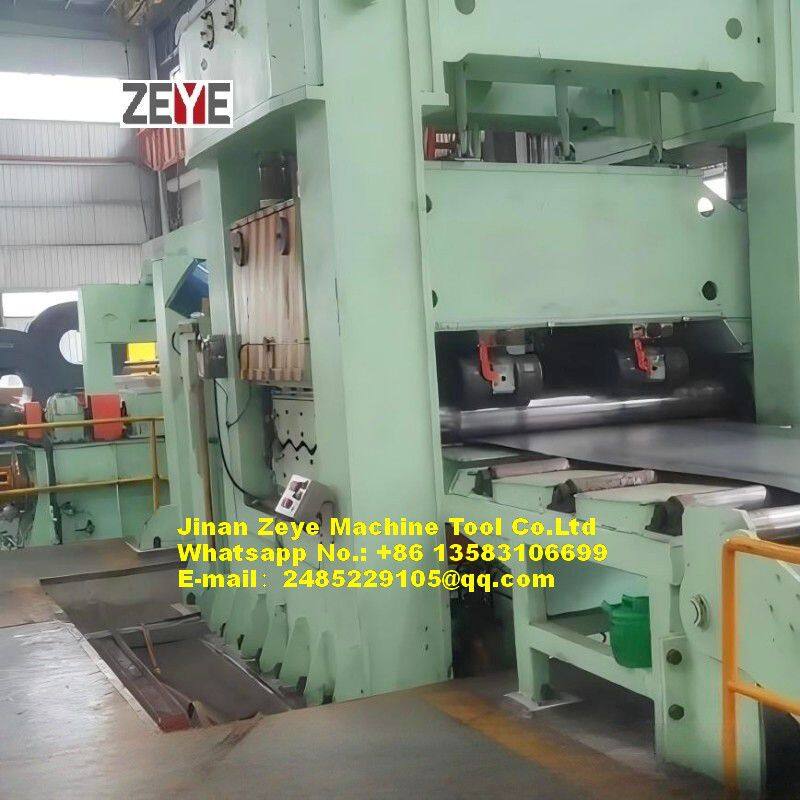

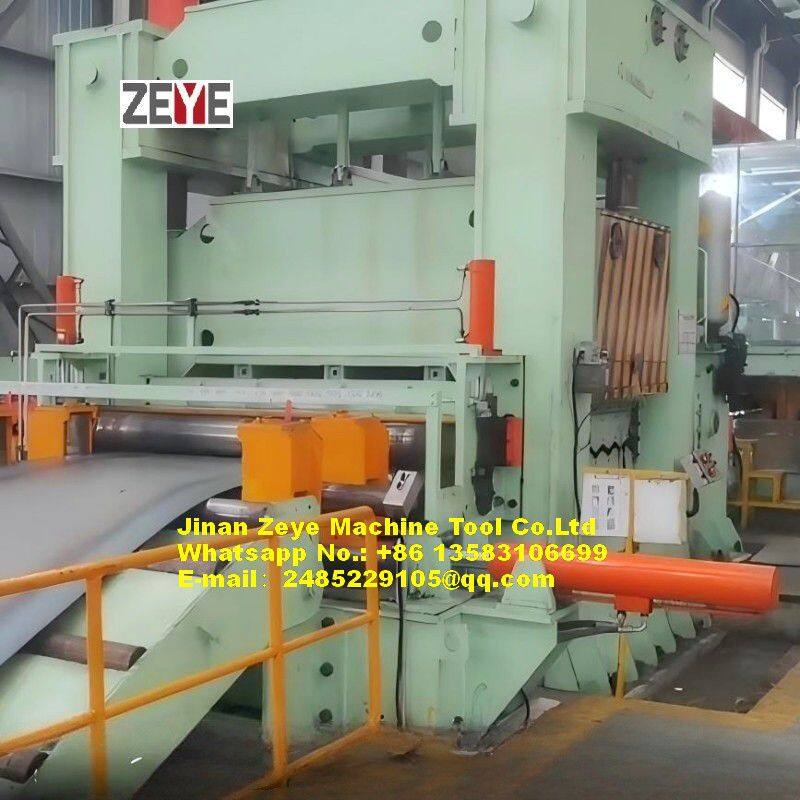

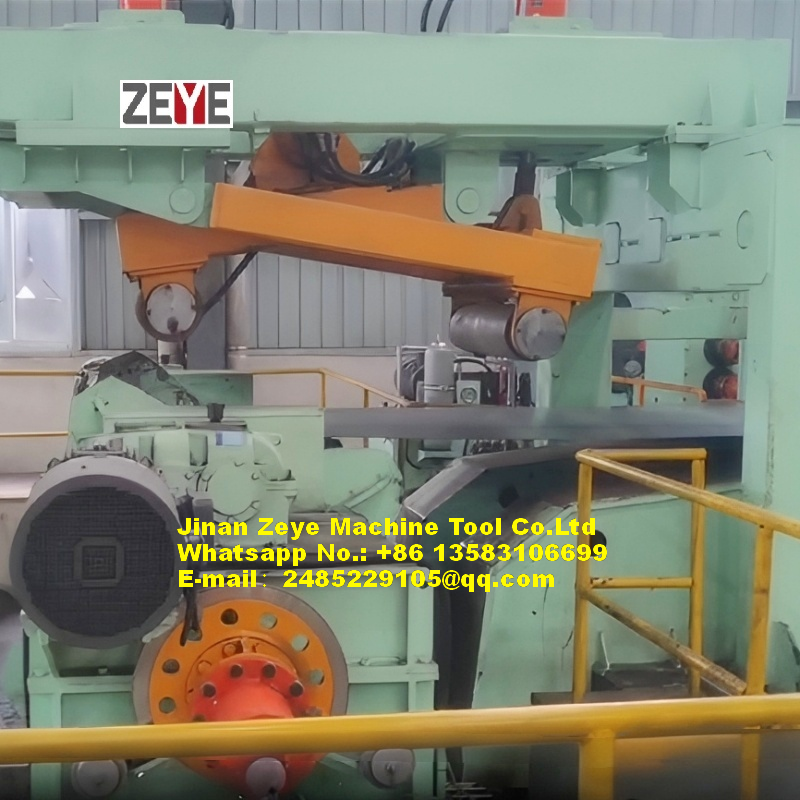

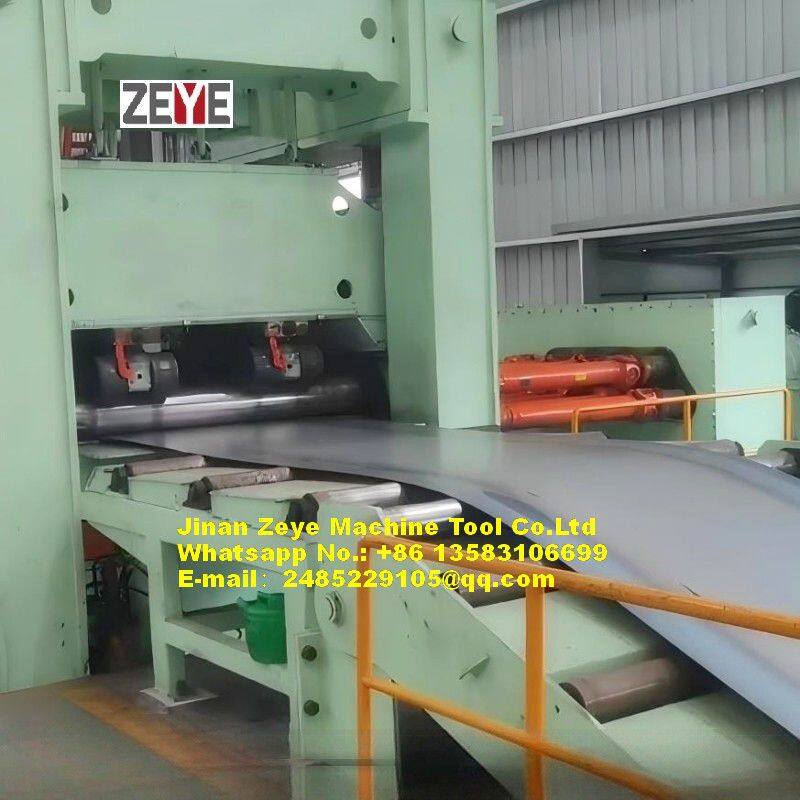

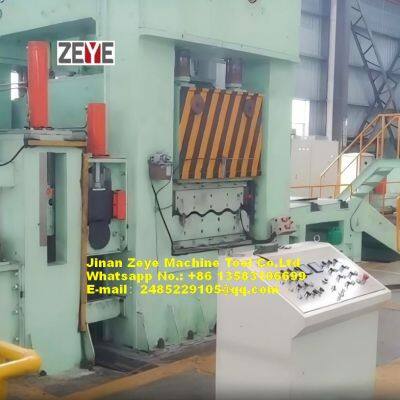

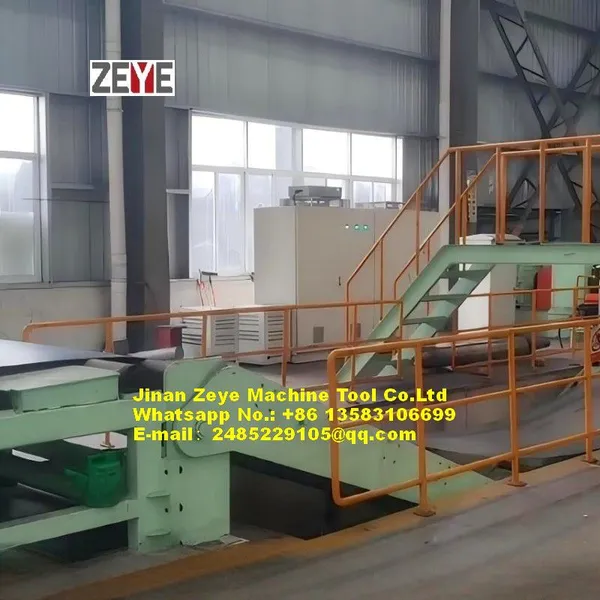

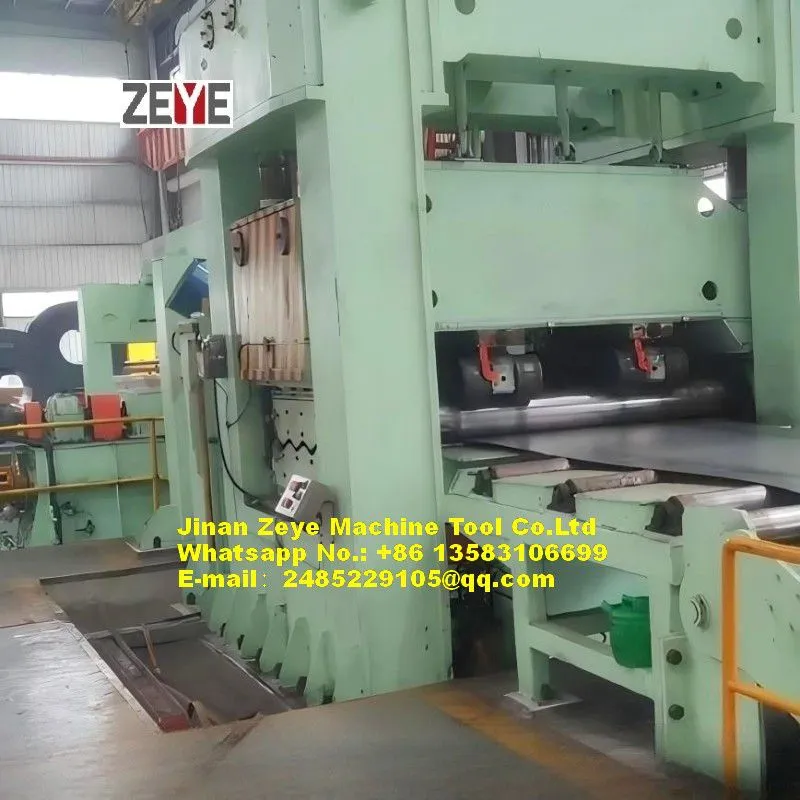

Hot rolled uncoiling-Levelling-Cutting-Stacking production line
Hot rolled plate,pickling palte,stainless steel plate,automobile plate,ship plate,ship plate.
Optional pre-leveler,flip type stacking machine,mobile shears.
Main Technical Parameters
Model |
ZCL-6 |
ZCL-8 |
ZCL-12 |
ZCL-16 |
ZCL-20/25 |
Material thickness |
1.5-6.0mm |
2-8 mm |
3-12 mm |
4-16 mm |
6-20/25 mm |
Material width |
800-2000 mm |
800-2000 mm |
800-2000 mm |
800-2200 mm |
800-2500 mm |
Finished length |
1000-6000 mm |
1000-8000 mm |
100-12000 mm |
2000-14000 mm |
2000-14000 mm |
Length accuracy |
±1.0 mm |
±1.0 mm |
±1.0 mm |
±1.0 mm |
±1.0 mm |
Diagonal accuracy |
±1.0 mm |
±1.0 mm |
±1.5 mm |
±1.5 mm |
±1.5 mm |
Leveling accuracy |
|||||
Line speed |
50 m/min |
40 m/min |
40 m/min |
40 m/min |
30 m/min |
Coil weight |
20,30 t |
20,30 t |
20,35 t |
20,35 t |
20,35 t |
Smooth Surface Sheet Flying Shear Cut Line/cut to length line
Gentle Feeding Moving Shear Production Line/cut to length machine
Model |
ZCL-1 |
ZCL-2 |
ZCL-3 |
ZCL-4 |
Material thickness |
0.2-1.0mm |
0.3-2.0 mm |
0.4-3.0 mm |
0.5-4.0 mm |
Material width |
300-1250 mm |
300-1600 mm |
300-1800 mm |
300-1800 mm |
Finished length |
300-3000 mm |
300-3000 mm |
300-4000 mm |
400-6000 mm |
Length accuracy |
||||
Diagonal accuracy |
||||
Leveling accuracy |
||||
Line speed |
70 m/min |
60 m/min |
60 m/min |
60 m/min |
Coil weight |
5,10,15 t |
10,15,20 t |
15,15,20 t |
20,25,30 t |
