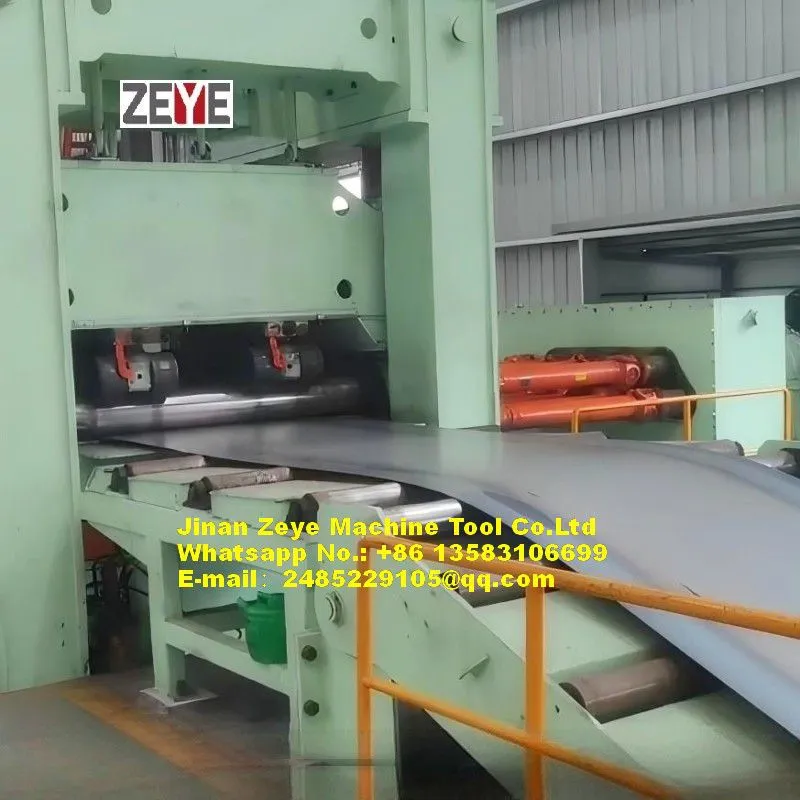

High Speed Automatic Moving Shear Cut-to-Length Line for Steel Coil
Heavy-Duty Servo Tracking Moving Shear for Metal Sheet Processing
PLC Controlled Precision Moving Shear Production Line with Leveling System
Customized Moving Shear Cross-Cut Line for Cold Rolled/Hot Rolled Steel
High Efficiency Moving Shear Line with Automatic Uncoiling & Stacking
ZeYe specializes in the R&D and manufacturing of metal coil processing equipment, including Cut-to-Length Lines, Slitting Lines, Rotary Shears, Moving Shears, Combined Slitting & Cut-to-Length Production Lines, Slitting & Recoiling Lines, Cut-to-Length Compound Lines, and Leveling Machines.
Our equipment is widely applicable for processing various metal materials such as cold-rolled steel, hot-rolled steel, carbon steel, galvanized steel, silicon steel, stainless steel, pre-painted steel, and aluminum. These products serve a broad range of industries, including sheet metal processing, home appliances, automotive manufacturing, pipe production, machinery, and hardware.
We have established long-term and friendly cooperative relationships with renowned enterprises worldwide, including POSCO, BAOSTEEL, ANSTEEL, SINOTRUK, CRRC, Siemens, and Samsung.
Model |
ZCL-6 |
ZCL-8 |
ZCL-12 |
ZCL-16 |
ZCL-20/25 |
Material thickness |
1.5-6.0mm |
2-8 mm |
3-12 mm |
4-16 mm |
6-20/25 mm |
Material width |
800-2000 mm |
800-2000 mm |
800-2000 mm |
800-2200 mm |
800-2500 mm |
Finished length |
1000-6000 mm |
1000-8000 mm |
100-12000 mm |
2000-14000 mm |
2000-14000 mm |
Length accuracy |
±1.0 mm |
±1.0 mm |
±1.0 mm |
±1.0 mm |
±1.0 mm |
Diagonal accuracy |
±1.0 mm |
±1.0 mm |
±1.5 mm |
±1.5 mm |
±1.5 mm |
Leveling accuracy |
|||||
Line speed |
50 m/min |
40 m/min |
40 m/min |
40 m/min |
30 m/min |
Coil weight |
20,30 t |
20,30 t |
20,35 t |
20,35 t |
20,35 t |
Model |
ZCL-1 |
ZCL-2 |
ZCL-3 |
ZCL-4 |
Material thickness |
0.2-1.0mm |
0.3-2.0 mm |
0.4-3.0 mm |
0.5-4.0 mm |
Material width |
300-1250 mm |
300-1600 mm |
300-1800 mm |
300-1800 mm |
Finished length |
300-3000 mm |
300-3000 mm |
300-4000 mm |
400-6000 mm |
Length accuracy |
||||
Diagonal accuracy |
||||
Leveling accuracy |
||||
Line speed |
70 m/min |
60 m/min |
60 m/min |
60 m/min |
Coil weight |
5,10,15 t |
10,15,20 t |
15,15,20 t |
20,25,30 t |
Company Mission
To provide customers with reliable, high-precision metal coil processing solutions and equipment.
We are committed to improving production efficiency, ensuring product quality, and creating long-term
value for our partners through continuous technological innovation and professional services.
1.Auto Coil Handling
Loads and unrolls metal coils (steel, aluminum, etc.) automatically. Prevents slipping or scratching to keep materials safe.
2.Smoothing & Straightening
Uses special rollers to flatten coils, removing bends or warps. Makes sheets smooth for later processing.
3.High-Speed Cutting
Cuts sheets while they're moving (no need to stop) with a fast, synchronized shear. Edges are clean, and sheet lengths are accurate (±1.0mm,based on 2m)(±2.0mmbased on 12m).
4.Easy Control
Operated by a simple system: set sheet length and quantity digitally. Save multiple settings for quick changes between jobs.
5.Auto Stacking
Conveys cut sheets to a stacking unit, which arranges them neatly automatically. Saves manual work and makes storage easier.
6.Safe Operation
Has emergency stops, protective covers, and overload protection. Shuts down automatically if there's a problem to keep people and equipment safe.
7.Works with Many Materials
Processes different metals (cold/hot-rolled steel, galvanized steel, stainless steel, aluminum) with thicknesses 0.3mm-25mm and widths up to 2800mm. Used in car, home appliance, and machinery industries.
