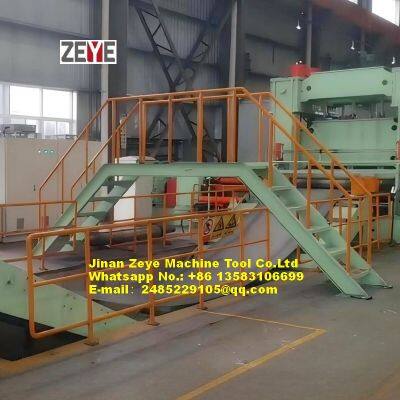

Cut To Length Machine for H-Type /Carbon Steel Coil ZCL-8X1800

Product Spotlights

Integrated Feeding ,Combined Flying Shear & Leveling Machine Line Multi-function, Coil high precision Straightening Moving Shear Cut-to-Length Line

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Warranty:

12 mouths

Cooling System:

Air Cooling

After-sales Service:

Liftlong time

Jinan Zeye Machine Tool Manufacturing Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

6 days

Warranty 12 mouths

Cooling System Air Cooling

After-sales Service Liftlong time

Application Home Appliance, Automotive Industry, Other, STEEL COILS

Structure Type Gantry Type

Technical Class Continuous Wave Laser

Laser Classification Free Electron Laser

Applicable Material Metal

Laser Technology Laser Control Fault Cutting

Transport Package Seaway packing

Specification Z2CL-12X2000

Trademark ZEYE

Origin CHINA

Jinan Zeye Machine Tool Co.,Ltd

Cell & Whatsapp no.:+86 13583106699

E-mail: 2485229105@qq.com

Jinan Zeye Machine Tool Co.,Ltd, Supply good quality steel coil slitting machine and cut to length line.

If you need cutter machine, please contact me directly.

Welcome you visit our company!

Hot rolled uncoiling-Levelling-Cutting-Stacking production line
Hot rolled plate,pickling palte,stainless steel plate,automobile plate,ship plate,ship plate.
Optional pre-leveler,flip type stacking machine,mobile shears.

Main Technical Parameters
Model	ZCL-6	ZCL-8	ZCL-12	ZCL-16	ZCL-20
Material thickness	1.5-6	2.0-8.0	3.0-12.0	4.0-16.0	6-20/25
Material Width	800-2000	800-2000	800-2000	800-2200	800-2500
Finished length	1000-6000	1000-8000	1000-12000	2000-14000	2000-14000
Length accuracy	1	1	1	1	1
Diagonal accuracy	1	1	1.5	1.5	1.5
Leveling accuracy	1	1	1.5	1.5	1.5
Line speed	50m/min	40m/min	40m/min	40m/min	30m/min
Coil Weight	20,30	20,30	20，35	20，35	20，35

Cold rolled uncoiling-Slitting-Recoiling Production Line
Cold-rolled plate,electrolytic galvanzied plate,hot dip galvanized plate,color-coated plate,aluminum plate,cooper plate.
Optional double seat slitting machine,unloading arm
Main Technical Parameters
Model	ZCL-1	ZCL-2	ZCL-3	ZCL-4
Material thickness	0.2-1	0.3-2.0	0.4-3.0	0.5-4.0
Material Width	300-1250	800-1600	800-1800	300-1800
Finished length	300-3000	300-3000	300-4000	400-6000
Length accuracy	0.3	0.3	0.3	0.3
Diagonal accuracy	0.5	0.5	0.5	0.5
Leveling accuracy	1	1	1	1
Line speed	70m/min	60m/min	60m/min	60m/min
Coil Weight	5.10.15	10.15.20	10.15.20	20.25.30
