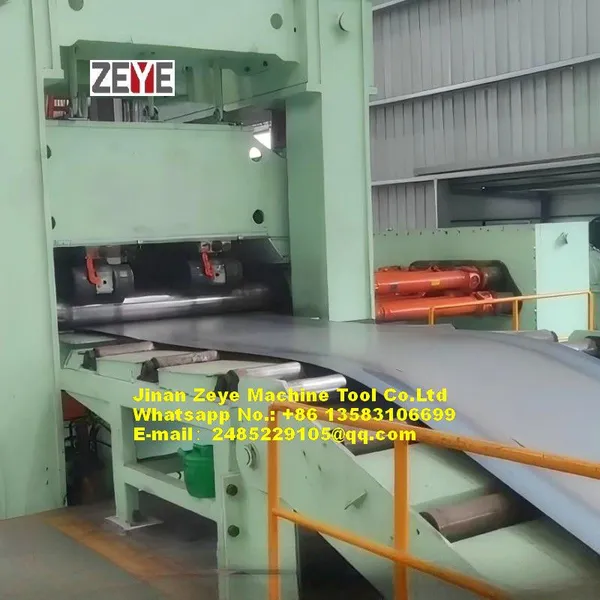

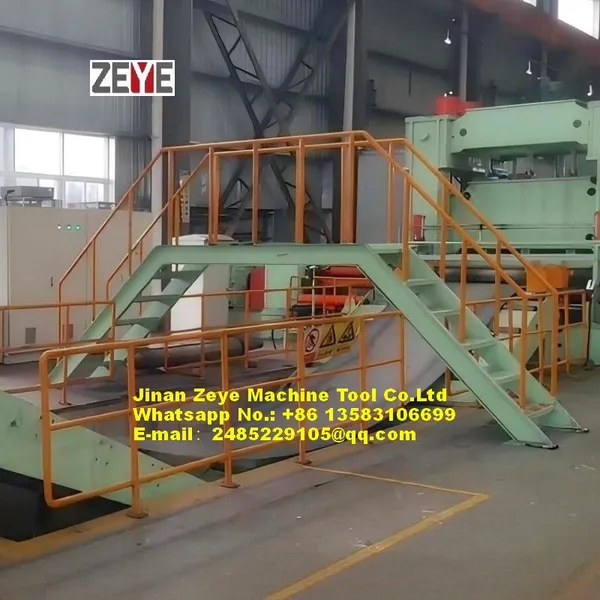

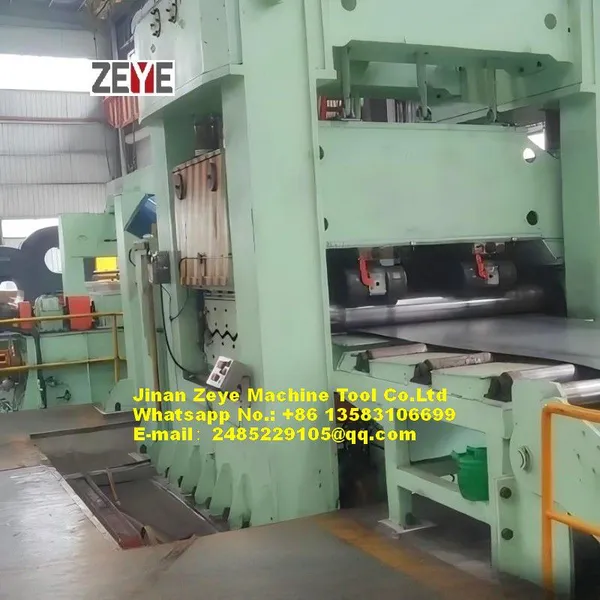

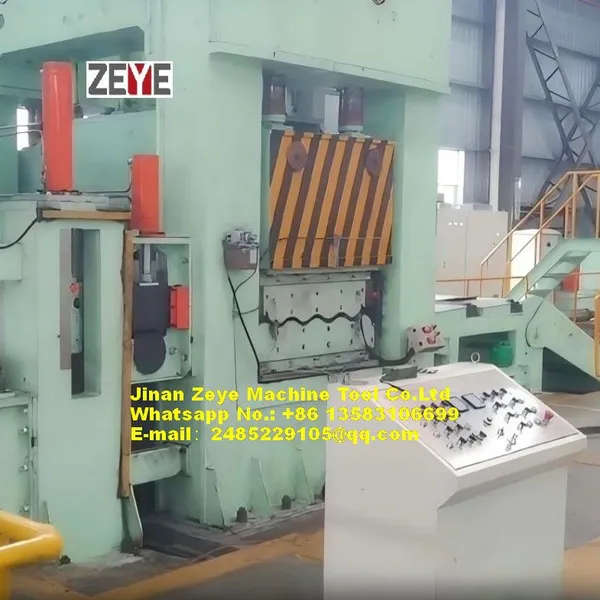

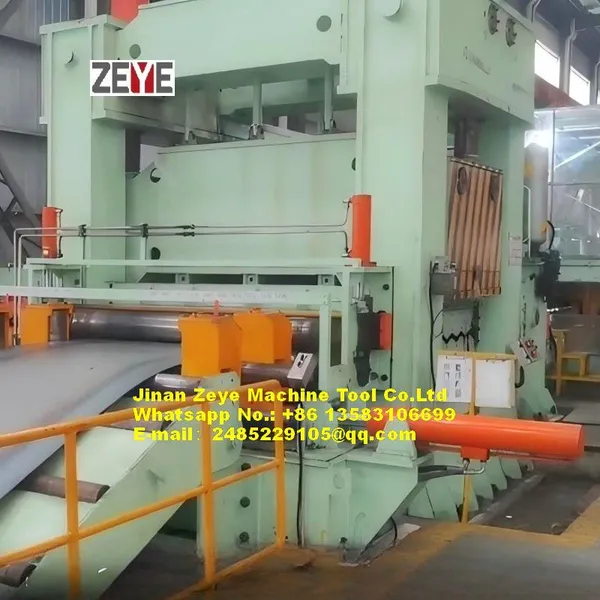

Help CenterAutomatic Thick Plate Steel Coil Cut To Length Machine For 700L, High-strength Steel, Silicon Steel Coils,
Product Spotlights
Related Products
-
Intelligent Factory High Duty Coils Cut to Length LineUS$ 80000MOQ: 1 Set -
High Accuracy Mass Production Flying Shear and Thick Plate Cut to Length LineUS$ 80000MOQ: 1 Set
-
Automatic High Speed Economical Steel Coil Cut To Length Line Z2CL-6X1600 For Titanium Coil, High-strength Steel, Silicon Steel CoilsNegotiableMOQ: 1 Set
-
Economical Steel Coil Cut To Length Line Z2CL-6X1600 For Titanium Coil, High-strength Steel, Silicon Steel CoilsNegotiableMOQ: 1 Set
-
Automatic Thick Plate Steel Coil Cut To Length Machine For 700L, High-strength Steel, Silicon Steel Coils,US$ 80000MOQ: 1 Set
Contact What app number is +8613583106699
ZEYE company website：
E-mail: 2485229105@qq.com , jiangy@cnzeye.com
Zeye Group consists of three affiliated companies.
Among them, Jinan ZeYe Machine Tool Co., Ltd. serves as the core manufacturing and engineering base, specializing in the R&D, design, production and assembly of metal coil processing equipment for 30 years
Shandong Zetian CNC Machine Tool Manufacture Co., Ltd. acts as the dedicated import and export entity, responsible for international sales, overseas market development, logistics arrangement and after-sales service support.
Together, the two core enterprises form a complete industrial system integrating R&D, manufacturing, sales and global service, providing customers with integrated solutions for cut-to-length lines, slitting lines, moving shear lines and related metal processing machinery.
Our company insist on the policy of 'qualityfirst, credit first, reasonable price, best servi ce' supply the best competitive products, win the bigger market.If you are interested in any of our products or would like to discuss a custom order,please contact us any time.We are I ooking forward to forming successful business relationships with new clients around the wo rld in the near future.
Strict management,superior quality,stressing reputation and paying attention to service.
Model |
ZCL-6 |
ZCL-8 |
ZCL-12 |
ZCL-16 |
ZCL-20/25 |
Material thickness |
1.5-6.0mm |
2-8 mm |
3-12 mm |
4-16 mm |
6-20/25 mm |
Material width |
800-2000 mm |
800-2000 mm |
800-2000 mm |
800-2200 mm |
800-2500 mm |
Finished length |
1000-6000 mm |
1000-8000 mm |
100-12000 mm |
2000-14000 mm |
2000-14000 mm |
Length accuracy |
±1.0 mm |
±1.0 mm |
±1.0 mm |
±1.0 mm |
±1.0 mm |
Diagonal accuracy |
±1.0 mm |
±1.0 mm |
±1.5 mm |
±1.5 mm |
±1.5 mm |
Leveling accuracy |
|||||
Line speed |
50 m/min |
40 m/min |
40 m/min |
40 m/min |
30 m/min |
Coil weight |
20,30 t |
20,30 t |
20,35 t |
20,35 t |
20,35 t |
Heavy duty slitting machine
Model |
ZSL-6 |
ZSL-8 |
ZSL-12 |
ZSL-16 |
ZSL-20/25 |
Material thickness |
1.5-6.0mm |
2.0-8.0 mm |
3.0-12 mm |
4.0-16.0 mm |
6.0-20/25 mm |
Material width |
300-1600 mm |
300-1800 mm |
300-2000 mm |
300-2000 mm |
300-2200 mm |
Slitting quantity |
30 |
25 |
25 |
20 |
20 |
Width accuracy |
±0.10 mm |
±0.10 mm |
±0.20 mm |
±0.20 mm |
±0.20 mm |
Cutting burr |
|||||
Winding split level floor |
|||||
Line speed |
120 m/min |
100 m/min |
80 m/min |
60 m/min |
60 m/min |
Coil weight |
20,30 t |
20,30 t |
20,35 t |
20,35 t |
20,35 t |
Q&A REFERENCE
Q: What is a cut-to-length line?
A: A cut-to-length line is a complete production line used to uncoil, level, feed and cut metal coils into flat sheets with fixed lengths.
2.Q: What materials can a standard cut-to-length line process?
A: It can process carbon steel, stainless steel, galvanized steel, aluminum and ST37 ST52 ST44 coils other metal coils.
3.Q: What are the main components of a cut-to-length line?
A: Main components include decoiler, straightener, feeder, shear machine, conveyor and stacking unit.
4.Q: What is the core function of the leveler in a cut-to-length line?
A: The leveler eliminates material camber, waves and internal stress to ensure flat finished sheets.
5.Q: What factors determine the cutting precision of a cut-to-length line?
A: Feeding accuracy, shear blade sharpness, line running stability and PLC control system.
