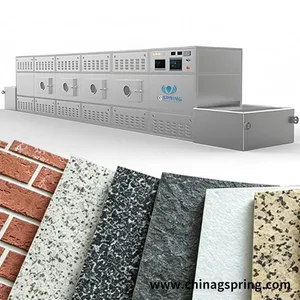

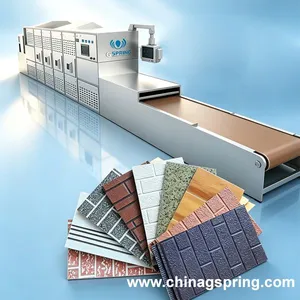

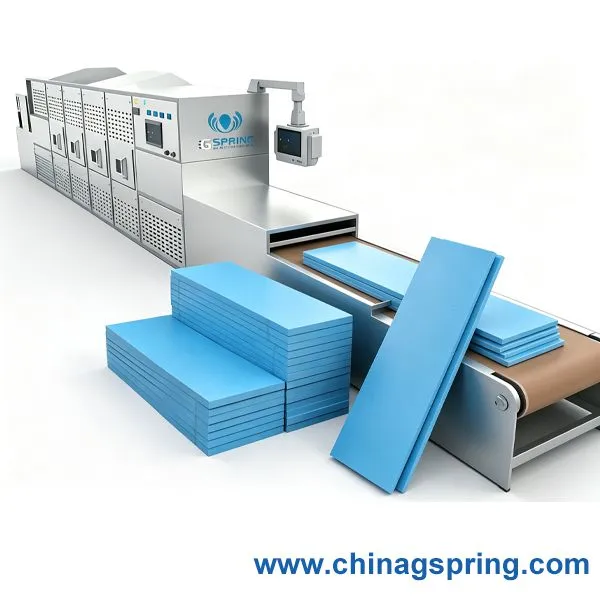

SUS304 Industrial Microwave Dryer for Insulation Board Industry Factory
Product Introduction：
The SUS304 Industrial Microwave Dryer is specially designed for continuous drying and moisture reduction of various insulation boards and thermal insulation materials. Using advanced microwave heating technology, the equipment enables rapid internal heating, uniform drying, improved production efficiency, and reduced operating costs compared with conventional hot air drying systems.
The system adopts food-grade and industrial-grade SUS304 stainless steel structure, ensuring excellent corrosion resistance, stable operation, easy cleaning, and long service life.Suitable for large-scale industrial production with continuous conveyor operation.
Main Features
1. Fast Microwave Heating Technology
Microwave energy directly penetrates into insulation board materials, generating heat internally and reducing drying time significantly.
2. Uniform Drying Performance
Compared with traditional surface heating, microwave drying achieves more even moisture distribution and minimizes cracking or deformation.
3. SUS304 Stainless Steel Construction
Entire machine adopts SUS304 structure for enhanced durability, corrosion resistance, and easier maintenance.
4. Continuous Automatic Production
Integrated conveyor system supports continuous operation and stable production output.
5. PLC Intelligent Control System
Equipped with automatic temperature adjustment, power regulation, conveyor speed control, and real-time monitoring.
6. Energy Saving & Eco-Friendly
Lower energy consumption and reduced heat loss help manufacturers improve production efficiency.
Application Industries
This industrial microwave drying equipment is suitable for:
Thermal insulation board
Construction insulation materials
Mineral wool board
Composite insulation panel
Foam insulation board
Decorative building materials
Lightweight wall panel production
Industrial sheet drying process
Working Principle
The insulation boards move continuously through the microwave tunnel by conveyor belt. Microwave energy penetrates directly into the material, causing water molecules to vibrate rapidly and generate heat from inside to outside. This process accelerates moisture evaporation while maintaining product quality and improving drying consistency.
Why Choose Our Industrial Microwave Dryer?
✓ SUS304 heavy-duty industrial design
✓ Continuous automatic operation
✓ Stable drying quality
✓ Lower labor requirements
✓ Energy-efficient production
✓ Customized capacity and layout
✓ Professional overseas installation support
Technical Specifications：
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
