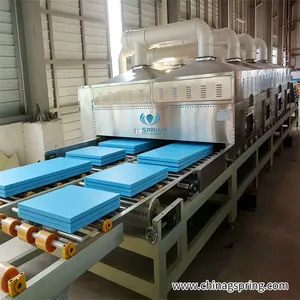

High Efficiency Industrial Microwave Dryer for Gypsum Board Drying and Moisture Removal System
Product Introduction
The High Efficiency Industrial Microwave Dryer for Gypsum Board is specially designed for rapid moisture removal and continuous drying in gypsum board manufacturing plants. Utilizing advanced microwave heating technology, the system directly heats water molecules inside the gypsum board, significantly reducing drying time while improving product quality and production efficiency.
Compared with traditional hot air drying systems, microwave drying offers faster heat transfer, lower energy consumption, uniform moisture distribution, and reduced production costs. It is an ideal solution for modern gypsum board production lines seeking higher productivity and consistent product quality.
Main Features of Industrial Microwave Gypsum Board Dryer
1. Fast and Efficient Drying
Microwave energy penetrates directly into the gypsum board and heats moisture from the inside out, greatly accelerating the drying process.
Benefits include:
Reduced drying time by 50%-80%
Increased production capacity
-
Faster product turnover
Continuous industrial operation
2. Uniform Moisture Removal
Traditional drying methods often create uneven moisture distribution, leading to warping or cracking.
The microwave drying system provides:
Uniform heating throughout the board
Stable moisture content
Improved product consistency
Reduced product defects
3. Energy Saving Technology
The industrial microwave dryer converts electrical energy directly into heat inside the material.
Advantages include:
Lower energy consumption
Reduced heat loss
Improved thermal efficiency
Lower operating costs
4. Intelligent PLC Control System
The equipment is equipped with an advanced PLC automatic control system.
Functions include:
Adjustable drying temperature
Conveyor speed control
Power regulation
Automatic fault diagnosis
Real-time operating monitoring
5. Continuous Conveyor Production
The continuous belt microwave drying design supports uninterrupted production.
Features:
Automatic feeding and discharging
Stable material transportation
High production efficiency
Suitable for large-scale gypsum board factories
6. Environmentally Friendly Operation
The microwave drying process produces no combustion emissions and requires no fossil fuel consumption.
Benefits:
Clean production process
Reduced carbon emissions
Improved workplace environment
Compliance with environmental standards
-
Technical Advantages
Microwave Frequency: 2450MHz
Power Range: 20KW-300KW (Customized)
Conveyor Type: Continuous Stainless Steel Belt
Control Mode: PLC Touch Screen Control
Drying Capacity: Customized According to Production Requirement
Material Contact Parts: Food-grade Stainless Steel
Heating Method: Microwave Dielectric Heating
Operation Mode: Continuous Automatic Production
Application Industries
The industrial microwave gypsum board dryer is widely used for:
Gypsum board manufacturing
Plasterboard drying
Construction material processing
Decorative panel production
Lightweight wall panel manufacturing
Calcium silicate board drying
Building material moisture reduction
Why Choose Microwave Drying for Gypsum Board?
✔ Faster drying speed than traditional hot-air systems
✔ Lower energy consumption and operating costs
✔ Uniform heating and moisture distribution
✔ Continuous automatic production
✔ Reduced floor space requirement
✔ Intelligent PLC control
✔ Stable product quality
✔ Customized solutions available
Working Principle
The industrial microwave dryer generates high-frequency electromagnetic waves that penetrate gypsum boards and interact directly with water molecules. The rapid molecular vibration generates heat internally, allowing moisture to evaporate quickly and evenly.
This inside-out heating method avoids surface overheating while ensuring thorough drying throughout the entire gypsum board thickness.
Customized Industrial Microwave Drying Solutions
We provide customized microwave drying systems based on:
Gypsum board dimensions
Moisture content requirements
Production capacity
Factory layout
Automation level
Power supply conditions
Our engineering team can design complete microwave drying lines tailored to your specific manufacturing needs.
Technical Specifications：
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
Industrial Microwave Dryer, Gypsum Board Dryer, Microwave Drying Machine, Gypsum Board Drying Equipment, Continuous Microwave Dryer, PLC Controlled Microwave Dryer, Plasterboard Dryer, Industrial Drying System, Building Material Dryer, Microwave Moisture Removal Equipment, Gypsum Board Production Line, Energy Saving Microwave Dryer, Continuous Belt Dryer, Industrial Microwave Heating System.
China Gspring Machinery are the manufactuer of Industrial microwave dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab
use or for small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt, Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for high quality industrial microwave oven if any questions about the machine, pls email grace@chinagspring.com
