Flanged Round Dust Collectors - High-Efficiency Industrial Dust Filtration Equipment
Short Description
Flanged Round Dust Collectors are professional industrial dust filters with cylindrical stainless steel body and integrated flange. Equipped with pulse-jet cleaning system and BIA/IFA-certified filter media, it features ≥99.9% filtration efficiency, low emission, easy maintenance, and wide industrial applicability.
Product Overview
Developed with decades of filtration experience, our Flanged Round Dust Collectors solve industrial dust pollution and meet global environmental standards. Its cylindrical flanged structure enables seamless integration with silos, conveyors or independent use, suitable for fine powders, abrasive and explosive dust.
Unique Core Advantages
1. Flanged Integrated Design: 304/316L stainless steel optional, stable installation, air-tight connection, easy integration with production systems.
2. High-Efficiency Filtration: Optional filter elements (round bags/cartridges), BIA/IFA-certified, ≥99.9% efficiency, ≤20 mg/m³ emission.
3. Intelligent Pulse-Jet Cleaning: 4~6 bar compressed air system, automatic cycle adjustment, continuous operation, low air consumption.
4. Safe & Versatile: Optional ATEX certification (zones 21/22), -20~80℃ working temperature, weather-proof for outdoor use.
5. Easy Maintenance: Optional large front door, tool-free filter replacement, 24-month maintenance interval.
6. Flexible Configuration: 1~48 m² filter surface, 60~6,000 m³/h air volume, customizable with/without suction fan.
7. Food-Grade Option: 304/316L body, FDA-compliant filters, suitable for food/feed/pharmaceutical industries.
Technical Specifications
Item |
Details |
Model |
Flanged Round Dust Collectors |
Body Material |
304/316L Stainless Steel / Carbon Steel (optional) |
Filter Elements |
Round bags / Elliptical bags / Cartridges / Poly pleat |
Filter Surface |
1~48 m² (11~517 sq ft) |
Air Volume |
60~6,000 m³/h (35~3,530 cfm) |
Filtration Efficiency |
≥99.9% |
Working Pressure |
4~6 bar (cleaning); ≤1 barg (operating) |
Working Temperature |
-20~80℃; up to 150℃ (high-temp optional) |
Certification |
ISO 9001, BIA/IFA, ATEX/FDA (optional) |
Installation Type |
Silo top / Stand-alone / Conveyor integration |
Application Scenarios
Widely used in: building materials (cement, fly ash), food/feed processing, chemical/pharmaceutical, mining, plastics/rubber, mechanical manufacturing, cosmetics/detergent production.
Why Choose Us
1. Professional filtration experience, reliable quality; 2. High efficiency & low emission, compliant with global standards; 3. Easy installation & maintenance; 4. Multi-scenario adaptation (ATEX/FDA); 5. Customizable, factory direct price; 6. 24-month warranty & 24/7 technical support.
Contact Information
Zhengzhou Tongjin Machinery Equipment Co., Ltd.

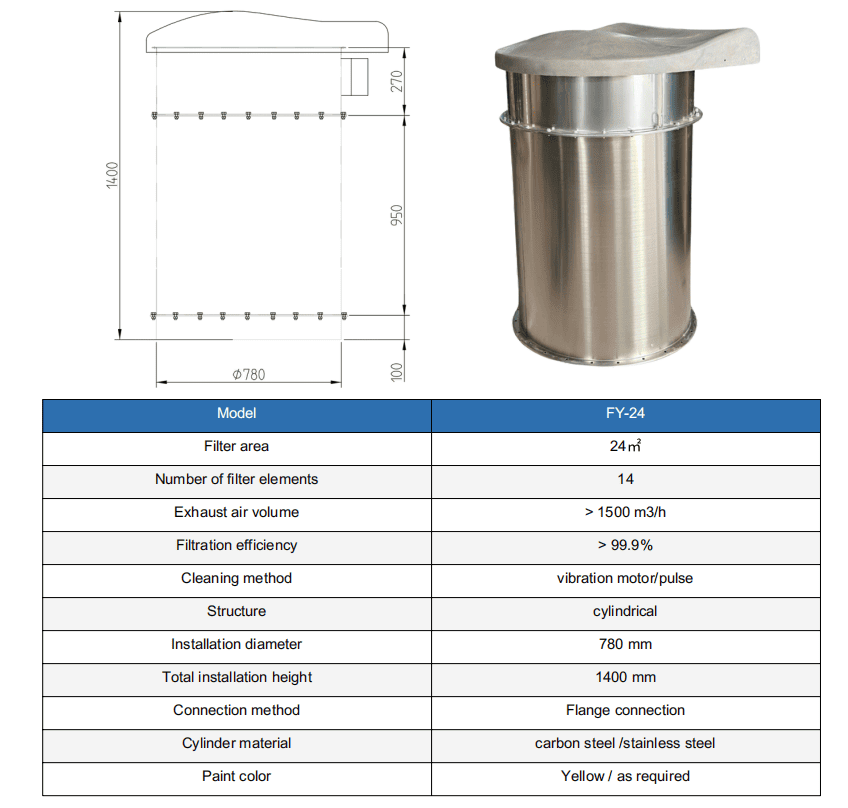

FY-24 Series Silo Venting Filter
Filter area: 24 m²; number of filter elements: 14; exhaust air volume: >1500 m³/h; filtration efficiency: >99.9%; cleaning method: vibration motor / pulse; structure: cylindrical; installation diameter: 780 mm; total installation height: 1400 mm; connection: flange; cylinder material: carbon steel / stainless steel.

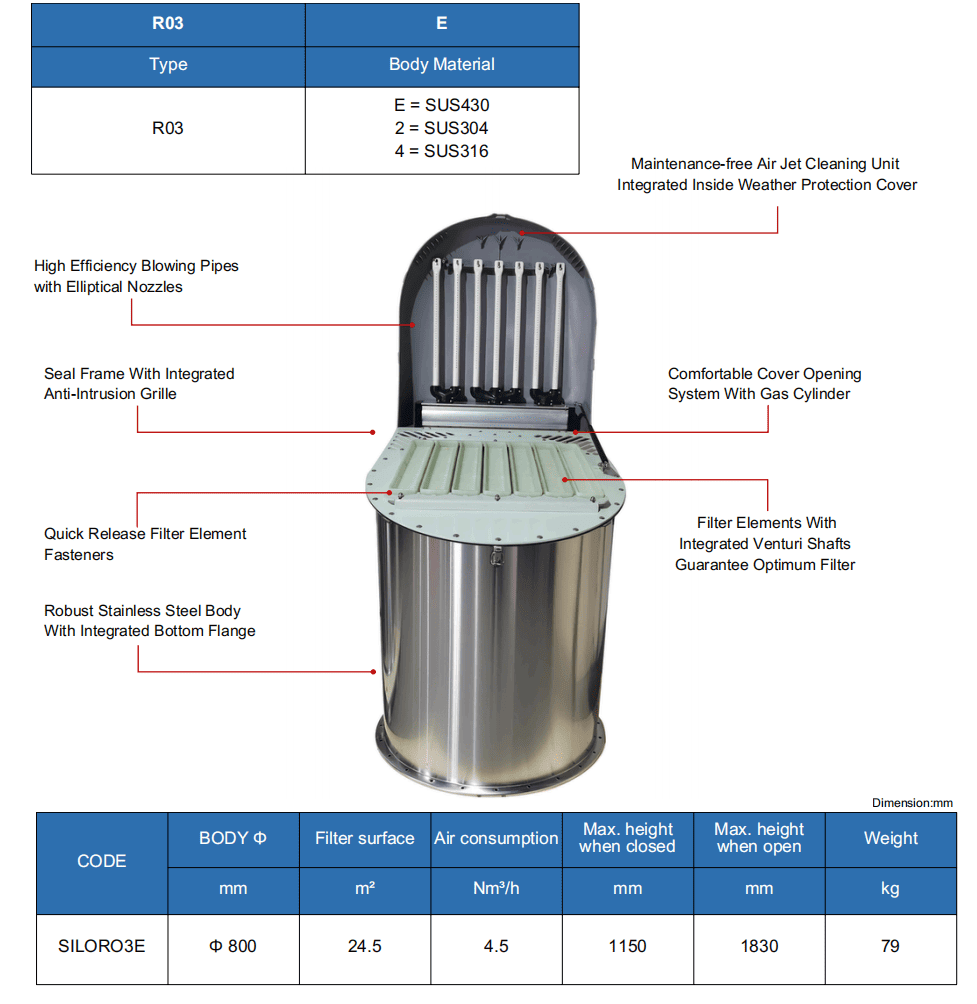

R03 Series Silo Venting Filter
Body diameter: Φ800 mm; filter surface: 24.5 m²; air consumption: 4.5 Nm³/h; max. height when closed: 1150 mm; max. height when open: 1830 mm; weight: 79 kg. Body material options include SUS430 / SUS304 / SUS316.

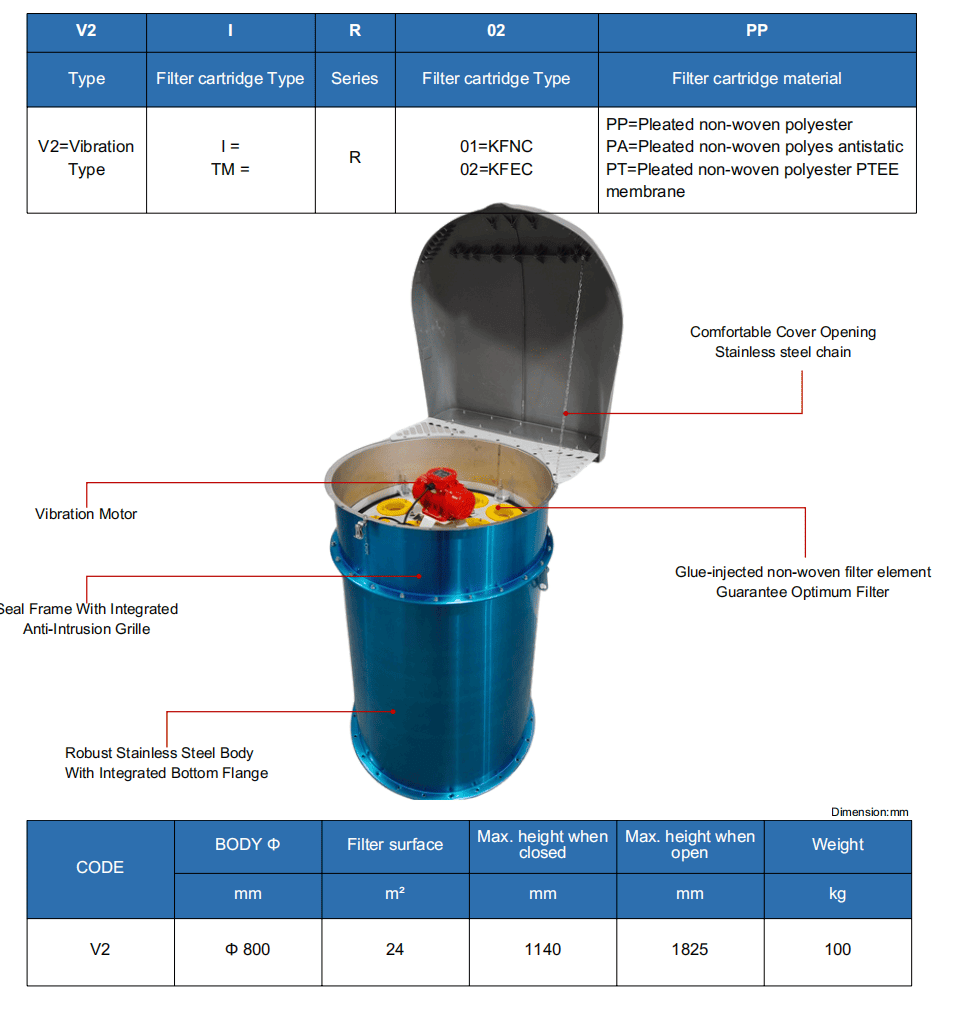

V2 Series Silo Venting Filter
Body diameter: Φ800 mm; filter surface: 24 m²; max. height when closed: 1140 mm; max. height when open: 1825 mm; weight: 100 kg. This model uses a vibration cleaning structure and stainless steel body with integrated bottom flange.

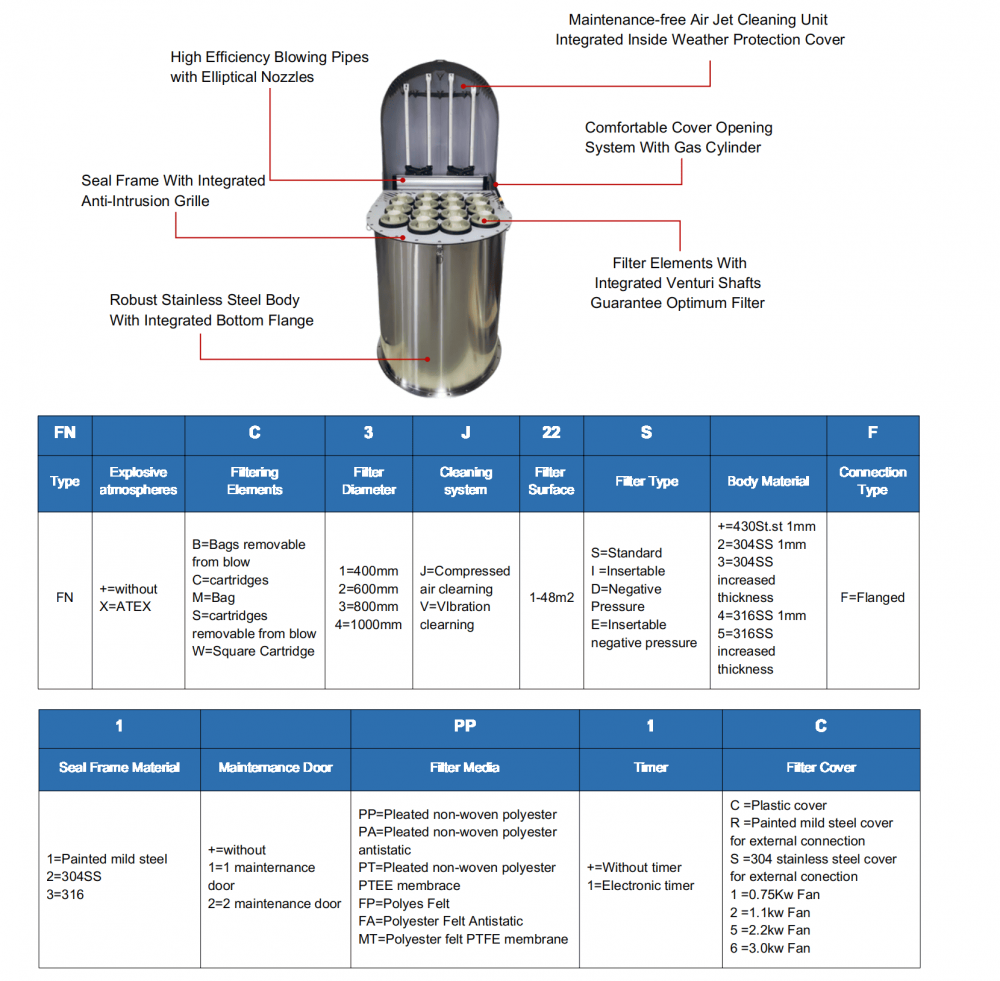

FN Series Silo Venting Filters
FN series are cylindrical dust collectors for pneumatically filled silos. The brochure shows configurable options including filter diameter 400 / 600 / 800 / 1000 mm, filter surface 1–48 m², compressed air or vibration cleaning, flanged connection, and body material options in 430 / 304 / 316 stainless steel.
