tongjinjin MVE Vibrator Industrial Vibrating Motor Detail Page
tongjinjin focuses on the R&D and production of industrial vibration equipment. As a core product, the MVE series vibrating motor rejects homogeneous and redundant descriptions, focusing on "high efficiency, stability and adaptability" to provide cost-effective vibration solutions for global industrial scenarios, replacing imported models and reducing enterprise operating costs.
Core Advantages · Address Industry Pain Points (tongjinjin Exclusive Technology)
✅ Maintenance-free & Cost-saving: Custom bearings by tongjinjin, lifelong lubrication, vacuum impregnated F-class insulation, S1 continuous working system, no additional maintenance manpower and material resources required.
✅ Stepless Vibration Force Adjustment: The angle of the eccentric block can be adjusted precisely, switching freely from 0 to full force, adapting to all scenarios such as screening, conveying and flow aiding without replacing equipment.
✅ Durable for All Working Conditions: IP65 dustproof and waterproof, stable operation at -20℃~+40℃, one-piece cast iron base by tongjinjin, impact-resistant and wear-resistant, suitable for harsh working conditions.
✅ Global Adaptability: ATEX/ETL explosion-proof certification, multi-voltage (12/24VDC, 220–690VAC) customization, meeting overseas project standards, with full technical support from tongjinjin.

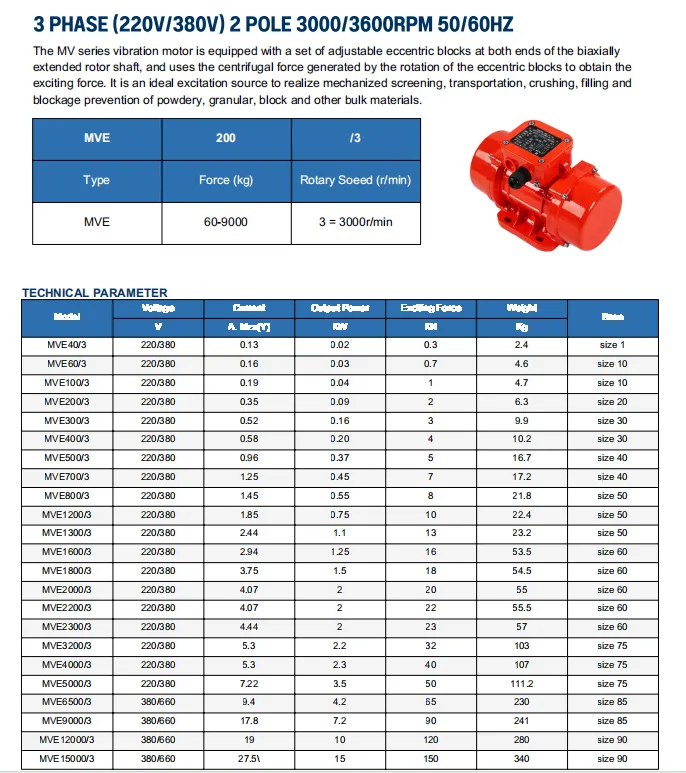

Accurate Parameters · Transparent & No Tricks
Parameter Name |
Specific Specifications |
Vibration Force |
20–30000kg (optional in grades, customizable by tongjinjin) |
Pole Number |
2/4/6/8 poles (corresponding speed 3000/1500/1000/750rpm) |
Voltage |
Single-phase 220V/Three-phase 380V; 12/24VDC; 230/400V, etc. (customizable adaptation) |
Protection/Insulation Class |
IP65 / Main class H, junction box class F |
Working System/Ambient Temperature |
Continuous (S1) / -20℃~+40℃ |
Application Scenarios · Full Industry Coverage
tongjinjin MVE Vibrator is widely used in mining and metallurgy, building materials and concrete, chemical industry and grain, casting and light industry and other fields. It is suitable for various equipment such as vibrating screens, feeders, silo flow aids and vibrating platforms, providing one-stop solutions for vibration needs such as material conveying, screening and compaction.
tongjinjin Brand Guarantee · Why Choose Us?
1. Factory Direct Supply: No middleman markup, cost performance far exceeds imported brands with the same configuration, reducing procurement costs;
2. In-stock Fast Delivery: Sufficient inventory for conventional models, quick response for customized models, shortening delivery cycle;
3. Lifelong Service: 12-month warranty, professional technical team of tongjinjin provides full-process support for installation, commissioning and working condition adaptation.
Order Information
Brand: tongjinjin | Product: MVE Series Vibrating Motor | Material: Cast iron base, aluminum alloy end cover, high-strength eccentric block
Certification: CE, ATEX, ETL | Customization: Support special customization of voltage, frequency and vibration force | After-sales: 12-month warranty + lifelong technical support
