Help CenterHigh SPEED Flying Shear Production Line/Cut to Length Machine
Product Spotlights
The control system supports quick storage and calling of processing parameters such as length, quantity, and cutting speed. Production specifications can be rapidly adjusted to meet small‑batch, multi‑variety order demands, enhancing production
Related Products
-
High SPEED Control Safe & User-Friendly Operation Flying Shear for Aluminum Plate and Stainless Steel CoilsNegotiableMOQ: 1 Combo -
High Precision Intelligent Factory Flying Shear Production Line/Cut to Length MachineUS$ 50000MOQ: 1 Combo
-
Excellent Dimensional Accuracy & Consistency Cut to Length Machine Z2CL-14X2000US$ 70000MOQ: 1 Set
-
High-Accuracy Fast-Response Flying Shear /Rotary Shear/Cut to Length MachineUS$ 80000MOQ: 1 Set
-
High-Precision Scratch-Proof Cut to Length Machine/Rotary ShearUS$ 80000MOQ: 1 Combo
Contact What app number is +8613583106699

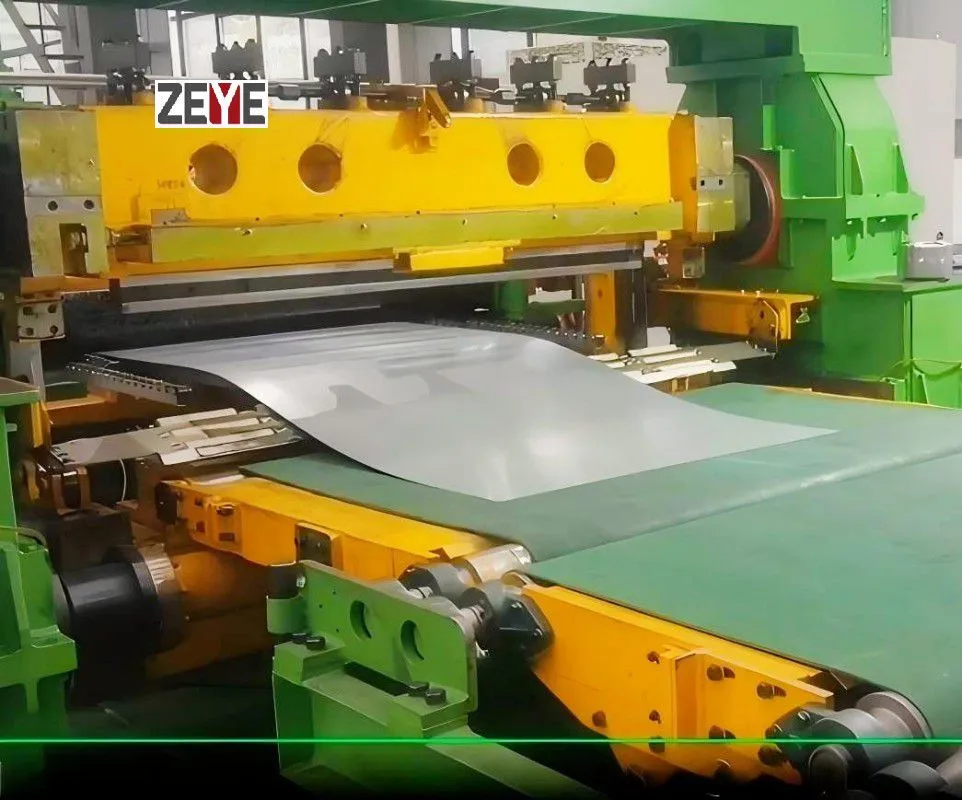

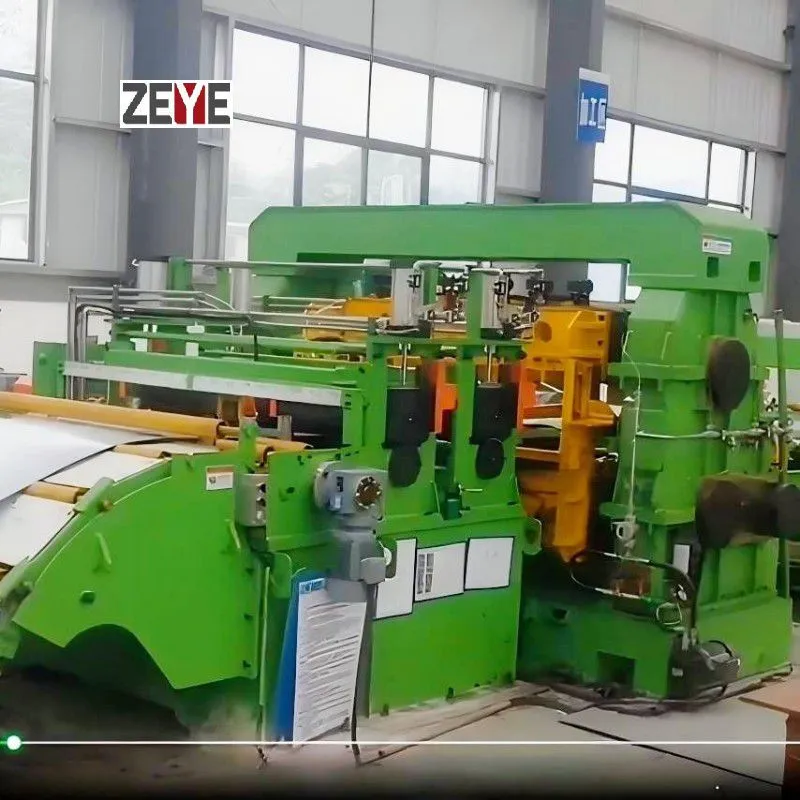

Rotary Shear Line ZFL series
Rotary shear line is mainly used for metail coil shear from decoiling leveling, rotary shear to stacker..
Appliction material:Alminum plate, cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, colour coated plate, stainless steel plate,etc.
Main Units
1.Entry coil car,
2.Uncoiler,
3.Precision Leveler,
4.Film applicator,
5.Measure the length roller,
6.Rotary shear machine,
7.Belt conveyor,
8.Stacker
Rotary Shear Line Layout
Main Technical Parameters
| Model | ZFL-1 | ZFL-2 | ZFL-3 | ZFL-4 |
| Material thickness | 0.1-1.0mm | 0.3-2 mm | 0.3-3 mm | 0.5-4 mm |
| Material width | 300-1250 | 300-1600 mm | 300-1800 mm | 300-1800 mm |
| Finished length | 300-2000 | 300-2000 mm | 400-4000 mm | 500-6000 mm |
| Length accuracy | ||||
| Diagonal accuracy | ||||
| Leveling accuracy | ||||
| Line speed | 90 m/min | 80 m/min | 75 m/min | 70 m/min |
| Coil weight | 10,15,20 t | 10,15,20 t | 15,20,25 t | 20,25,30 t |
Our advantages
1.High-speed continuous production：Cuts strip on-the-fly without stopping the line (up to 200 m/min), boosting productivity by 30–50% vs. stop-and-go shears.
2.Precision length control：Servo/CNC synchronization ensures tolerance ±0.3–0.5 mm, reducing material waste by 0.5–0.8%.
3.Versatile material compatibility：Processes carbon steel, stainless steel, coated steel (0.1–3.0 mm thick, 500–2200 mm wide).
4.High cut quality：Synchronized blade motion minimizes burrs, distortion, and surface scratches.
5.Automation & efficiency：Integrated with uncoiling, leveling, and stacking; lowers labor and maintenance costs.
Shandong ZEYE CNC Machine Tool Co., Ltd. (referred to as Shandong ZEYE), Jinan ZEYE Machine Tool Co., Ltd. (referred to as Jinan ZEYE) and Shandong ZETIAN CNC Machine Tool Co., Ltd. (referred to as ZETIAN) are sister enterprises.
ZETIAN specializes in import and export business, while the two ZEYE manufacturing factories focus on production and R&D. All our facilities are located in Jinan City, Shandong Province, China, with nearly 30 years of industry experience.
As professional manufacturers and a leading enterprise in the metal shearing and cutting industry, ZEYE is mainly committed to the R&D, production and sales of Cut-to-Length Lines, Slitting Lines, Rotary Shears, Moving Shears, Combined Slitting & Cut-to-Length Lines, Composite Slitting Recoiling / Cut-to-Length Lines, and Leveling Machines.
Our equipment is widely applied in industries including metal plate processing, home appliances, automotive manufacturing, pipe production, general machinery, hardware and more. It is suitable for processing cold-rolled steel, hot-rolled steel, carbon steel, galvanized steel, silicon steel, stainless steel, pre-painted steel, aluminum and various other metal materials.
