Application

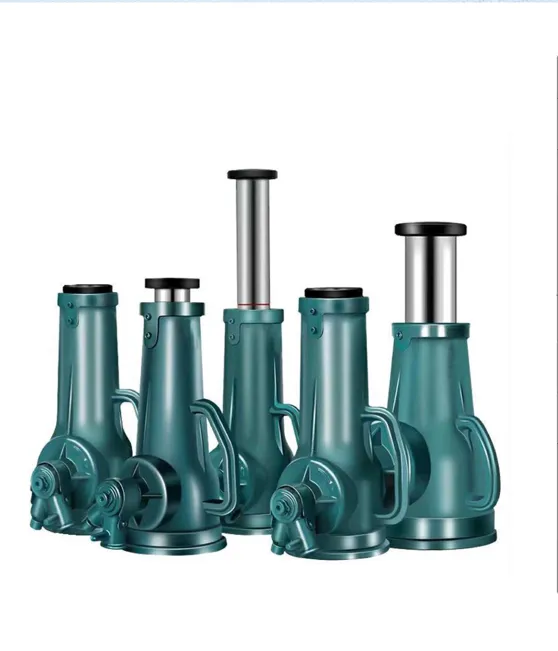

These mechanical screw jacks are designed for heavy-duty lifting, supporting, and leveling tasks in construction, vehicle maintenance, and industrial environments. They provide a reliable, maintenance-free solution for long-term load support.
Technical Specifications
The QL series includes ten models with varying capacities:
Capacities range from 3.2 tons to 100 tons, meeting diverse lifting needs.
Lifting heights span 110mm to 250mm, with overall heights from 210mm to 452mm.
Base diameters range from 93mm to 233mm, with top diameters from 52mm to 178mm, ensuring stability under heavy loads.
Design Features
Built with high-strength steel, these jacks feature a robust screw mechanism and a wide, stable base. The mechanical design eliminates the risk of hydraulic fluid leaks, making them ideal for outdoor and long-term use. The side-mounted handle allows for easy operation, while the compact form factor ensures portability.
Operational Advantages
The self-locking screw mechanism prevents the load from slipping, ensuring safety during use. With no complex hydraulic components, these jacks require minimal maintenance and offer long service life. The wide range of sizes makes them suitable for tasks from light vehicle repairs to heavy industrial equipment lifting.
| Model | Capacity (Ton) | Lifting Height (mm) | Overall Height (mm) | Base Diameter (mm) | Top Diameter (mm) |
|---|---|---|---|---|---|
| QL3.2 | 3.2 | 110 | 210 | 93 | 52 |
| QL5 | 5 | 130 | 250 | 110 | 55 |
| QL8 | 8 | 140 | 260 | / | / |
| QL10 | 10 | 150 | 280 | 118 | 60 |
| QL16 | 16 | 180 | 320 | 120 | 62 |
| QL20 | 20 | 180 | 325 | 127 | 65 |
| QL25 | 25 | 130 | 275 | 125 | 65 |
| QL32 | 32 | 200 | 395 | 145 | 75 |
| QL50 | 50 | 250 | 452 | 185 | 97 |
| QL100 | 100 | 200 | 452 | 233 | 178 |
