Product Overview
BW series single cylinder grout pump is a professional high-pressure mortar conveying and grouting equipment. It features stable pressure, uniform output and strong applicability, widely used in construction, tunnel, bridge, road and prestressed engineering.
Key Features
Single cylinder structure, high working pressure, strong grouting capacity.
Stable operation, uniform flow, long service life.
Compact design, easy to move and install on site.
Wide application for mortar, slurry and grouting works.
Low failure rate, easy maintenance.

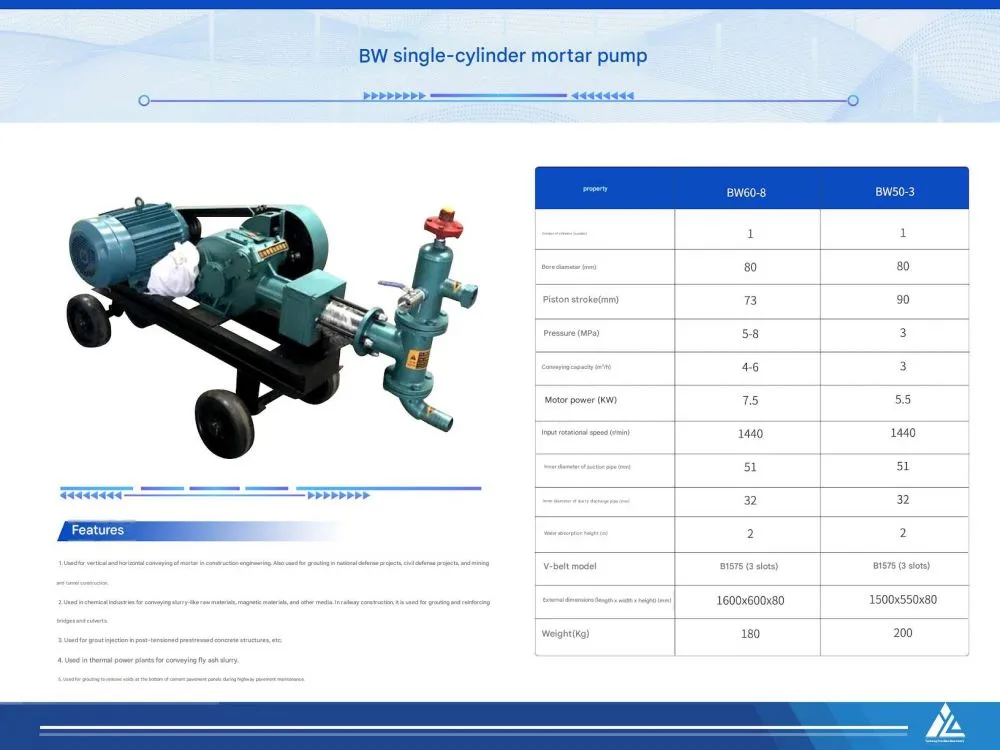

Technical Specifications
Model: BW60-8, BW50-3
Cylinder number: 1
Working pressure: 5-8MPa, 3MPa
Output: 4-6m³/h, 3m³/h
Motor power: 7.5kW, 5.5kW
Suitable for grouting and mortar conveying
Applications
Widely used in construction grouting, tunnel and mine reinforcement, bridge and culvert grouting, prestressed component grouting, highway road slab bottom void grouting.
