Product Overview
Prestressed anchorage is a key component for fixing and tensioning prestressed steel strands in concrete structures. It provides safe and reliable anchoring for PC strands, widely used in bridges, highways, railways, high-rise buildings, water conservancy, geotechnical anchorage and integral lifting of super heavy and super high components.
Key Features
High anchoring performance, stable and reliable for long-term use.
Suitable for 12.7mm, 12.9mm, 15mm, 15.7mm steel strands up to 2000MPa.
Supports 1 to 55 strands, customizable for special projects.

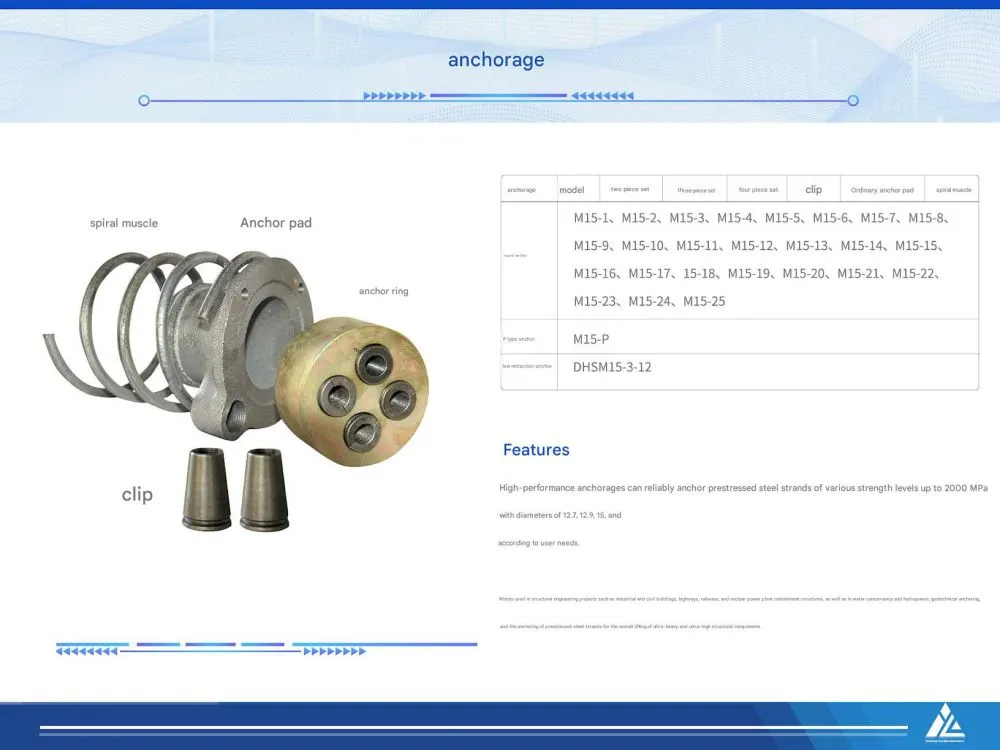

Complete set: anchor ring, wedges, anchor plate, spiral reinforcement.
Easy installation, high construction efficiency.
High strength, good fatigue resistance and durability.
Model Range
Round anchorage: M15-1 to M15-25
P-type anchorage: M15-P series
Low-retraction anchorage: DHSM15-3–12 series
Applications
Widely used in industrial and civil buildings, highways, railways, nuclear power containment, water conservancy, hydropower, geotechnical anchorage, integral lifting of super heavy and super high components and other prestressed projects.
