【Product Overview】

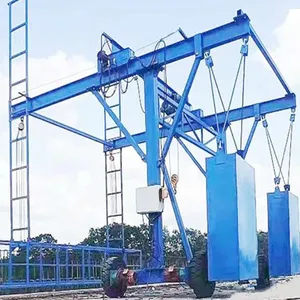

This Crash Barrier Formwork Trolley is a specialized construction equipment designed for highway and bridge projects, used for lifting, transporting, installing and dismantling anti-collision wall formworks. It integrates an electric hoist lifting system and a side hanging basket working platform, greatly improving construction efficiency and safety for bridge guardrail works.
【Key Features】
✅ Dual Capacity Options: Available in 1T and 2T rated lifting capacity, meeting different construction requirements.
✅ High Efficiency Movement: 15m/min longitudinal moving speed and 20m/min trolley moving speed, ensuring fast and flexible operation on site.
✅ Safe Working Platform: Integrated side hanging basket provides a stable working space for workers, reducing safety risks during high-altitude operations.✅ Sturdy Structure: Reinforced steel frame with 4.5m long chassis and 6m main beam, suitable for various construction conditions.
✅ Easy Operation: Equipped with electric hoist for formwork lifting, simple control and easy maintenance.

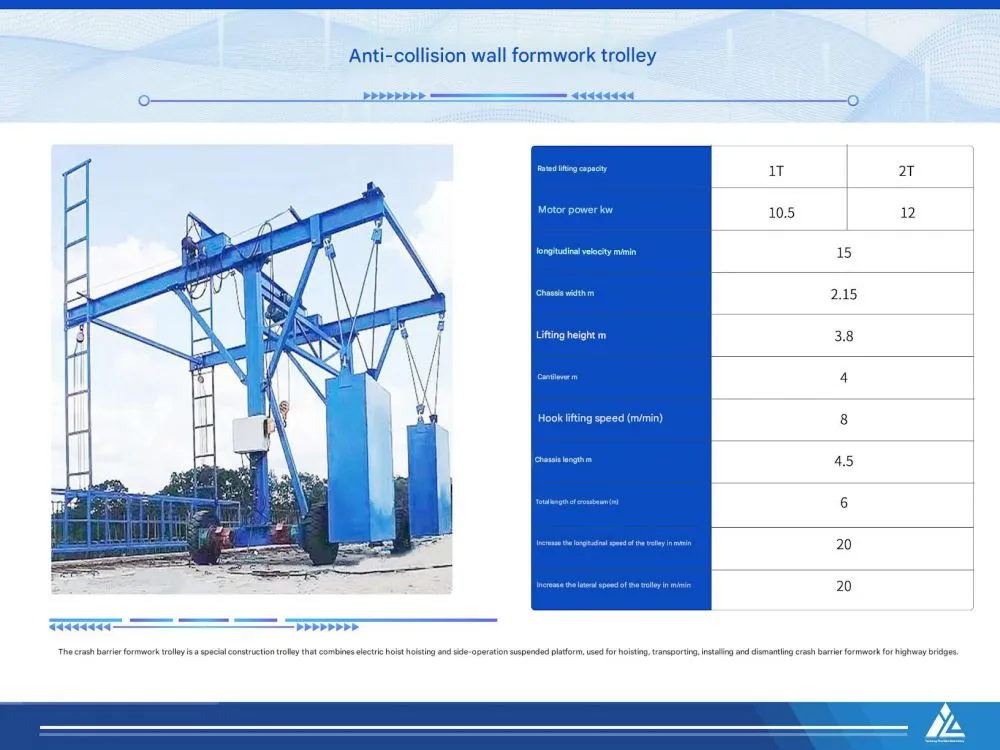

【Technical Specifications】
【Applications】
Anti-collision wall formwork installation for highway bridges, viaducts and overpasses
Guardrail construction works in municipal and road engineering projects
High-altitude formwork handling and installation for bridge side structures
