Help CenterGood Quality Hydraulic Car Lifter From China 1800mm 4 Post Car Lift 5000kg With Manual Unlock
Product Spotlights
suitable for car services and 4 wheel alignment;
safe and reliable insurance device;
optional aluminum box motor
Related Products
-
8/10/12/15/16 TON Hydraulic Car Lift Four Post Lifter for Large VehiclesUS$ 5300 - 7800MOQ: 1 Set -
Low Cost Manual Lock Release 4 Post Car Lift 4000kgs/1800mmUS$ 2200 - 2400MOQ: 2 Sets
-
Cheapr Price 2 Post Hydraulic Car Lift 3500kgs/1800mmUS$ 1050 - 1200MOQ: 3 Sets
-
New Design Wheel Alignment Scissor Car Lift 3500kgsUS$ 4100 - 4300MOQ: 2 Sets
-
Manual Lock Release Clear Floor Auto Lift 2 Post Gantry Car Lift 4000kgsUS$ 1250 - 1350MOQ: 3 Sets
5T Four Post Car Lift with 3D Wheel Alignment
Features
Hydraulic cylinder and steel rope drive make the lifting stable and quiet
Hydraulic power unit configuration throttling device, can adjust the rate of decline
Adopt manual mechanical linkage lock, four-points locking system, Easy to operate.
Can be locked at the required height operation, safe and reliable
Set the steel wire rope control safety lock, with a rope breaking protection function, operation more safety.
Runway spacing adjustable, suitable for different track vehicle.
Telescopic sliding beam and arm design.
Equipped with spiral tray, horizontal type tray and supporting board
CE approved.

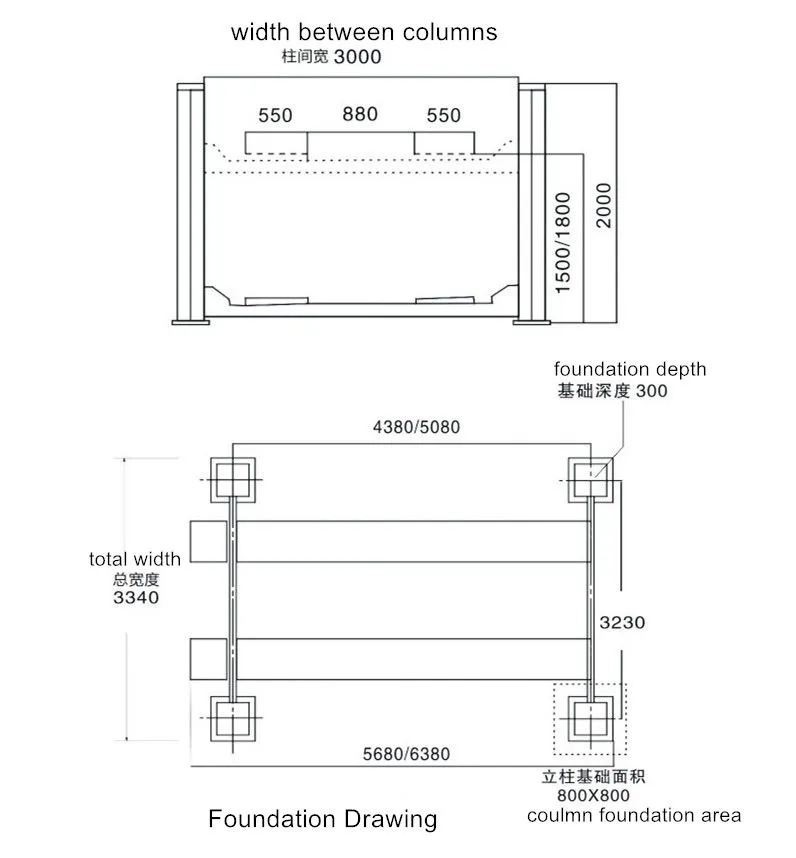

Technical Drawings
Technical Parameters
| Lifting capacity | 5000kg |
| Lifting height | 1800mm |
| Mini height | 220mm |
| Total length | 6380mm |
| Total width | 3340mm |
| Total height | 2000mm |
| Width between columns | 3000mm |
| Jack capacity/ height | 2000kgs/ 350mm |
| Motor power | 2.2/3KW |
| Power supply | 220V/380V, 1ph/3ph, 50/60Hz |

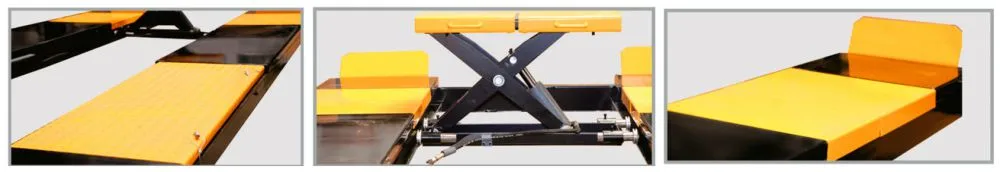

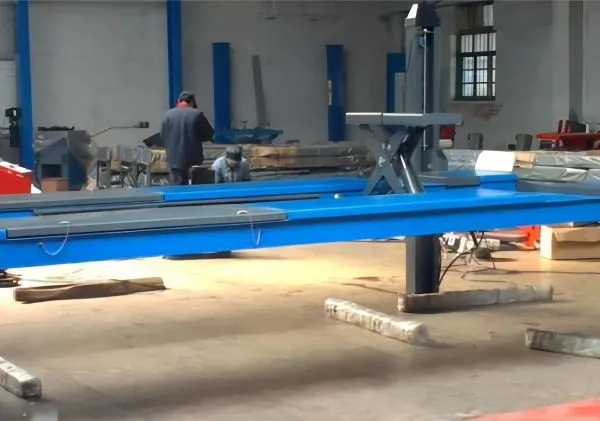

Detailed Pictures

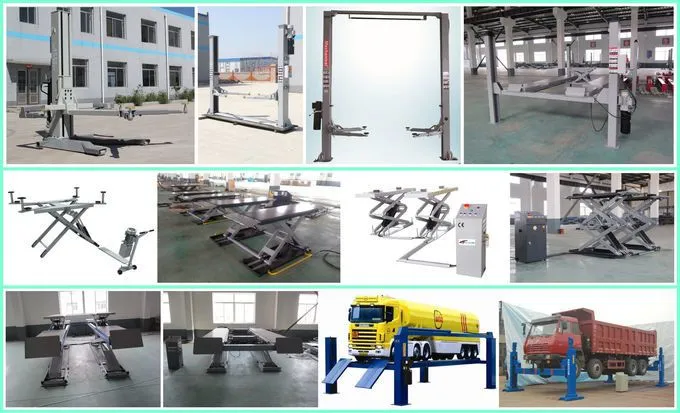

More Models for option
