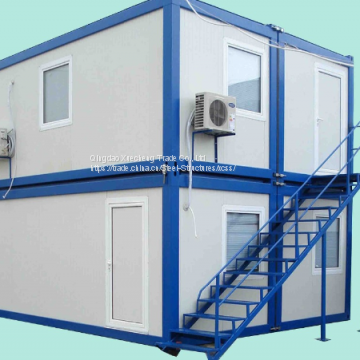

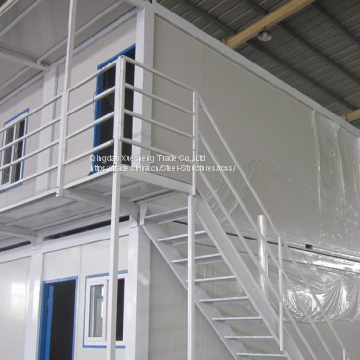

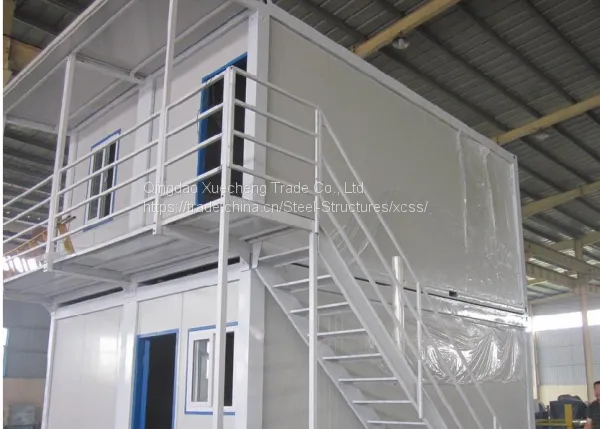

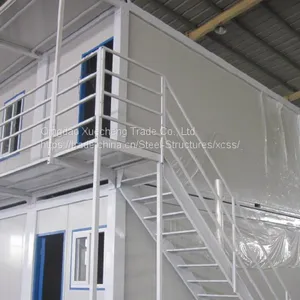

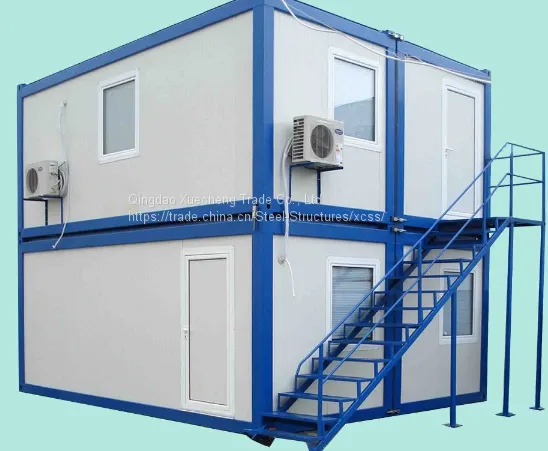

Prefabricated Sandwich Panel Steel Container House

Prefabricated Sandwich Panel Steel Container House

Characteristics

• Good ability to assemble and disassemble for several times without damage.

• Could be lifted, fixed and combined freely.

• Heatproof and waterproof.

• Cost saving and convenient transportation (Each 4 container house can be loaded in one standard container)

• Service life can reach up to 10 - 15 years

• We can provide the service of installation, supervision and training by extra.

Technical Parameters (standard prefabricated house)

• Wind resistance: Grade 11(wind speed≤111.5km/h)

• Earthquake resistance: Grade 7

• fire proof:B2 grade

Dimensions and Weight:

• Inner length /external length :5.81m/6.06m

• Inner width /external width: 2.188m/2.438

• Inner height/external height:2,410m/2.591m

• Weight: 2000kg per unit

Steel framework:

• Material: Light steel structure, steel material Q235

• Surface working: sand blasting, epoxy basic painting 55μm thick, final vinyl acrylic painting 55μm thick

• Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe

• Forklift openings: size 100*250mm, distance is 1200mm

Floor:

• External wainscot: Flat galvanized color steel sheet, 0.4mm thickness

• Floor structure: Girder made of 4mm steel. The purlin is square tube dimension 60x40x1.5mm.

• Warm proof Insulation layer: 75mm rock wool

• Floor: 15mm thick plywood panel for general room; 20mm thick cement board for WC and kitchen

• 1.5mm PVC floor leather for living rooms floor; 1.5mm anti-slip aluminum board for toilet floor.

• Permitted loading: 2.0KN/m2

• Coefficient of thermal conductivity: K=1.1 W/ (m·K)

Ceiling:

• Roof exterior layer: 1.2mm stamping steel plate,epoxy painting

• Warm proof insulation filling: 75mm rock wool between wooden purlins;

• Inner wainscot:  9mm MDF laminated decorative panel or 10mm glass magnesium fire-proof board

• Permitted live loading: 0.5 KN/m2

• Coefficient of thermal conductivity: K=0.55 W/ (m·K)

• Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm

Walls:

• Panel width: 1150mm; panel total thickness: 75mm

• External layer: Galvanized and painted (29μm) color steel sheet 0.5mm

• Internal layer: Galvanized and painted (29μm) color steel sheet 0.5mm.

• Warm proof insulation filling: 75mm EPS or rock wool or 50mm PU panel

• Insulation density: EPS is 12kg/ m3;rock wool is 120kg/ m3;PU is 45kg/ m3

• Permitted loading: 0.6KN/m2

• Coefficient of thermal conductivity: K=0.442 W/ (m·K)

Door:

• External door: sandwich panel door with opening dimension 850*2100mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.

Windows:

• Window material: PVC, white color, dimension 1130*1000mm, glass thickness: 3mm, aluminum alloy edge cover, sliding window with fly screen.

• Or PVC windows with rolling shutter.
