steel construction building China made light steel structure factory
Steel structure building
Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors. Light steel structure building is widely used in warehouses, workshops, large factories, and so on.
Specification
Dimension |
Length |
Hbeam:4000-15000mm |
Thicknes |
web plate:6-32mm wing plate:6-40mm |
|
Height |
200-1200mm |
|
Color |
according to customers |
|
Main components |
Main frame |
H beam |
Purlin |
C or Z section steel purlin |
|
Brace |
Anchor, ordinary, high strength bolt |
|
Bolt |
Sandwich panel or steel plate |
|
Roof & wall |
PVC or aluminum alloy door |
|
Door |
Sliding or rolling door |
|
Insulation panel |
EPS, XPS, Rock wool , PU sandwich |
|
Material |
Q235B,Q345B China standard steel |
|
Sheet |
0.5mm or 0.6mm galvanized sheet |

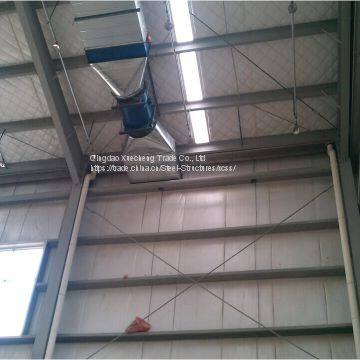

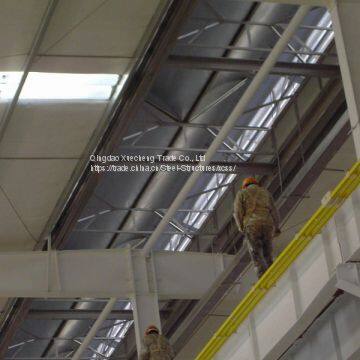

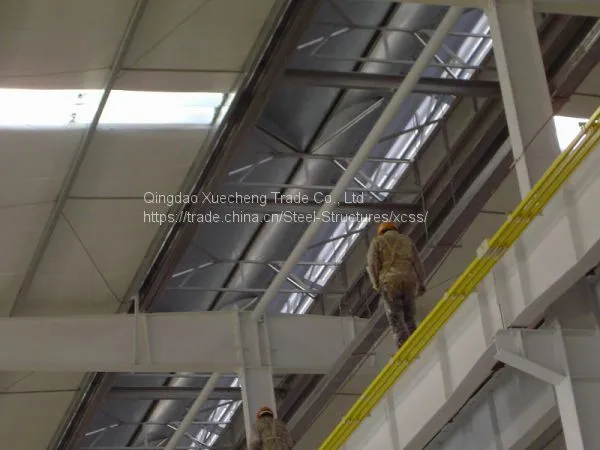

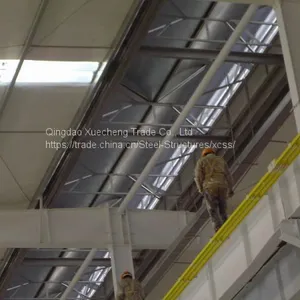

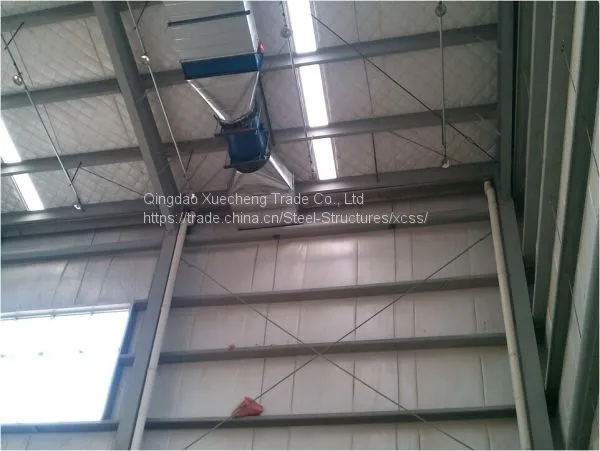

1. The main frame (columns and beams) is made of welded H-style steel.
2. The columns are connected with the foundation by pre-embedding anchor bolt.
3. The beams and columns, beams and beams are connected with high intensity bolts.
4. The envelop construction net is made of cold form C-style purlins.
5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.
6. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel and so on.
Material
Standards |
The Description of Codes and Regulations |
International standard |
Fe360B |
Chinese standard |
Q235B/ Q345B |
American standard |
ASTM GRADE 30/50 (A283GRC) |
European standard |
A37-2 |
Japanese standard |
SAPH38(G3133-87) |
Features
1. Wide span: single span or multiple spans, the max span is 36m without middle column.
2. Low cost: Unit price range from USD35/m2 to USD90/m2 as per customers' request.
3. Fast construction and easy installation.
4. Long using life: up to 50 years.
5. Easy construction, time-saving and labor saving.
6. Flexible layout, beautiful appearances, and higher space efficiency.
7. Environmental protection, stable structure, earthquake proofing, water proofing, and energy conserving.
Application

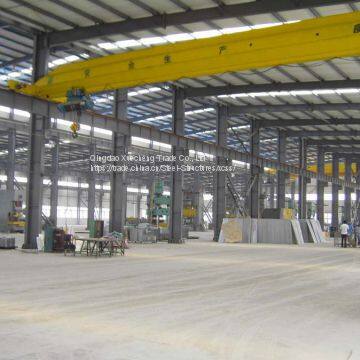

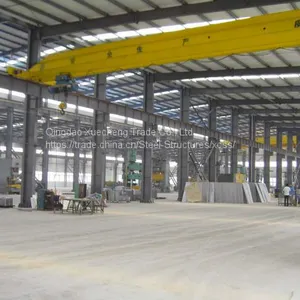

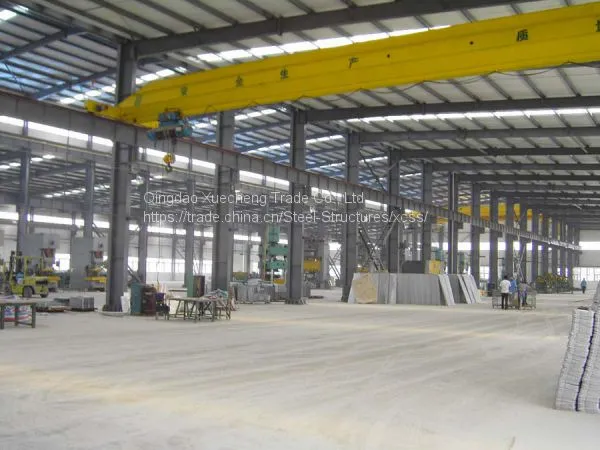

large-scale manufacturing factory, logistics, warehousing, supermarkets, entertainment centers and other large-scale construction
Packaging& Shipping
All the structure components, panels, bolts and sorts of accessories will be well packedwith standard package suitable for ocean transport and loaded into 40’HQ,40HC,40OT
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged.
Service
Give us your own drawings to enable us construct as per your request, or just provide your requirements, If you want us to design it for you, pls provide the following parameters together with detail size:
load on roof(KN/M2), live load on second floor(KN/M2) if have
d speed(KM/H) or wind load(Kn/M2)
3.snow load (Kn/M2) if have
4.earthquake load if have
5.crane (if have): crane span, crane type, crane quantity, crane lift height, max lift capacity, max wheel pressure and min wheel pressure.
Our engineers can design the project based on your ideas.
Company Profile
Xuecheng Steel Structure is one professional steel structure company with special qualification of steel structure, located in Qingdao, we are mainly specialized in light&heavy steel structure designing, manufacturing& installing.
We own the light/ heavy H steel production line, C/Z production line and various types of profiling steel sheet machines.
We have 7 year's experience in steel structure products manufacture and export, and our products have been successfully exported to Australia, North America, South America, Eastern Europe, Southeast Asia, Africa, etc
