Features
Clear floor design makes the operator work easier under the vehicle.
Adopt double cylinder, plate chain and steel rope balance system to make lifting stable
Hydraulic power unit configuration throttling device, can adjust the rate of decline.
Manual lock release from single side, more convenient.
The two stage arm design is suitable for different kinds of vehicle chassis.
Retractable tray with three screw designed, adjustment range from 85mm to 115mm
With 24V limit switch;
Preventing rubber pad and foot protection.
Safety guard
Adopt 360°circumferential teeth of limit lock, strengthen the tensile strength and reliability.
Pass 115% dynamic and 150% static loading test.
CE approved.
Technical Drawings
Technical Parameters
Lifting capacity: 4000KG
Lifting height: 1900mm
Minimum height: 85mm
Lifting time: 45-45S/50S
Overall height: 3780mm
Overall width: 3420mm
Width between columns: 2820mm
Motor power: 2.2KW
Power supply: 220V/240V/380V/415V

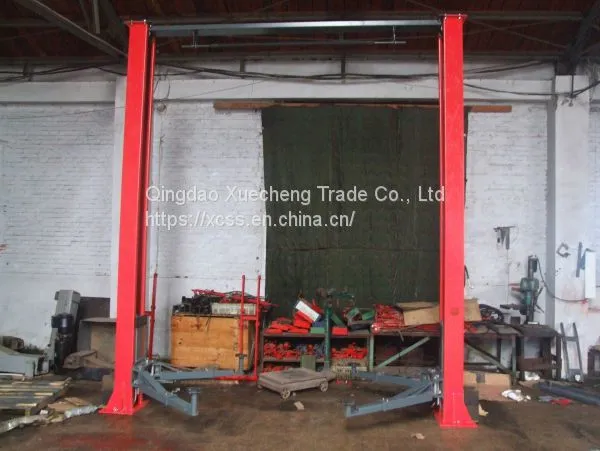

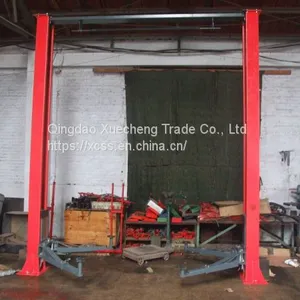

Detailed Pictures
