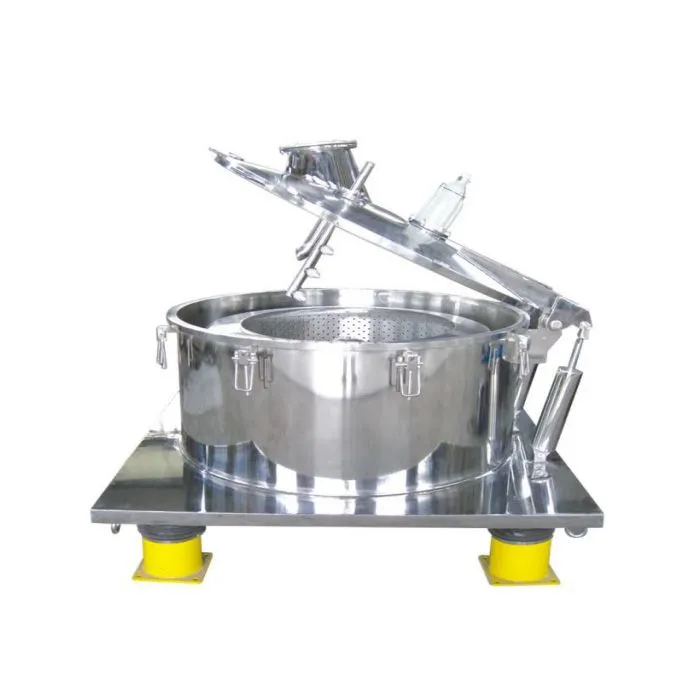

PBL series flat plate direct-coupled centrifuge industrial vertical centrifuge factory
The PBL series is a centrifuge specifically designed and produced for sterile room production in accordance with the requirements of the national Good Manufacturing Practice (GMP) for pharmaceuticals. It is equipped with a dedicated explosion-proof motor for centrifuges paired with a variable frequency speed regulator, enabling stepless speed regulation of the centrifuge. The braking unit and braking resistor provide electrical braking, with no vulnerable parts. It can complete a working cycle with dynamic or static feeding.
Performance and application
The machine features a compact structure, elegant appearance, and a fully enclosed design, which prevents cross-contamination of materials and enhances the working environment. Its flat structure facilitates easy cleaning. It is suitable for solid-liquid separation of suspensions and can be used for the separation of toxic, harmful, flammable, and explosive materials.
Main Features
1. Large flip-up structure, easy to clean.
2. The liquid damping shock absorption system has a small impact on the surrounding area.
3. No wearing parts, compact structure.
4. It is particularly suitable for production in sterile rooms.

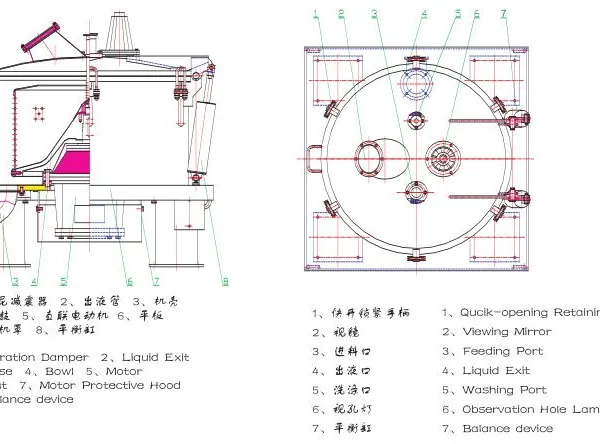

Schematic
Technical Parameters
| Items | PBL300 | PBL450 | PBL600 | PBL800 | PBL1000 | PBL1200 | PBL1250 |
| Drum diameter (mm) | 300 | 450 | 600 | 800 | 1000 | 1200 | 1250 |
| Drum height (mm) | 160 | 300 | 320 | 400 | 420 | 500 | 500 |
| Drum speed (r / mm) | 2845 | 2000 | 1500 | 1500 | 1000 | 1000 | 1000 |
| Separation factor (Fr) | 1360 | 1008 | 756 | 1008 | 560 | 672 | 700 |
| Working volume (L) | 5 | 20 | 45 | 100 | 140 | 250 | 300 |
| Loading limit (kg) | 7.5 | 30 | 70 | 135 | 200 | 350 | 400 |
| Motor power (kw) | 0.75 | 3 | 4 | 7.5 | 11 | 18.5 | 18.5 |
| Dimensions (L × W × H) mm | 630 × 630 × 640 |
900 × 900 × 1000 |
1000 × 1000 × 1070 |
1200 × 1200 × 1180 |
2000×1500× 1950 | 1800 × 1800 × 1380 |
1800 ×1800 × 1380 |
| Weight (kg) | 250 | 600 | 1000 | 1500 | 2000 | 3000 | 3500 |
| Opening height (mm) | 1030 | 1470 | 1700 | 1940 | 2250 | 2590 | 2650 |
