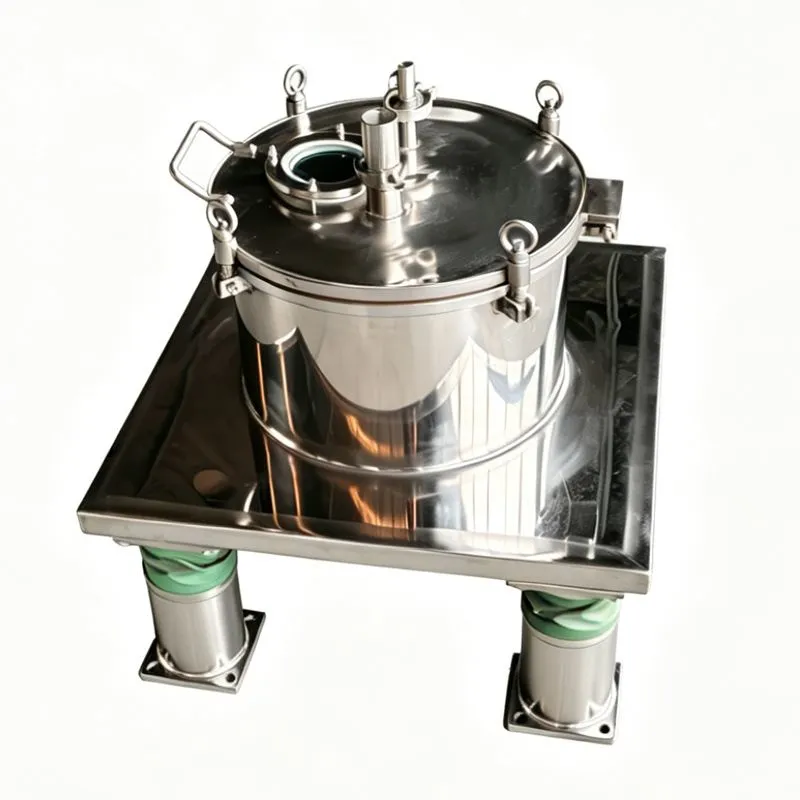

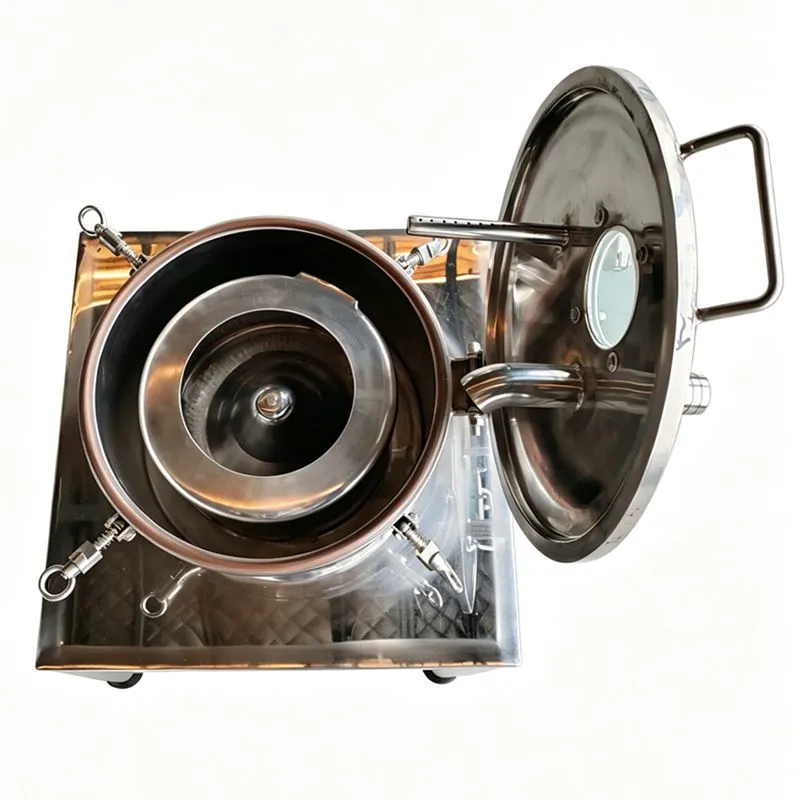

PBL Stainless Steel Vertical Laboratory Centrifuge Manual Top Discharge Mini Centrifuge for Lab

PBL Stainless Steel Vertical Laboratory Centrifuge Manual Top Discharge Mini Centrifuge for Lab thumbnail-1
PBL Stainless Steel Vertical Laboratory Centrifuge Manual Top Discharge Mini Centrifuge for Lab thumbnail-2
PBL Stainless Steel Vertical Laboratory Centrifuge Manual Top Discharge Mini Centrifuge for Lab thumbnail-3
PBL Stainless Steel Vertical Laboratory Centrifuge Manual Top Discharge Mini Centrifuge for Lab photo-1
PBL Stainless Steel Vertical Laboratory Centrifuge Manual Top Discharge Mini Centrifuge for Lab photo-2
PBL Stainless Steel Vertical Laboratory Centrifuge Manual Top Discharge Mini Centrifuge for Lab photo-3

Product Spotlights

This centrifuge is very small, its high rotation speed is 2845RPM
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Centrifuge
Warranty:
1 year
Installation:
Other, four-corner support feet
Contact Supplier Request Quote Chat Now
Bengbu Jinggong Pharmaceutical Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
50 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Centrifuge
Warranty 1 year
Installation Other, four-corner support feet
Pressure Low Pressure
After-sales Service install and set up
Object Other, Pharma and Chemical Industry
Separation Mode Filter Type
Operating Type Intermittent Type
Centrifuge Type Other, vertical centrifuge
Distillation Equipment Type Other
Extraction Tower Type Other
Condition New
Transport Package with pallet
Specification PBL-300
Origin China

PBL Stainless steel vertical laboratory centrifuge manual top discharge mini centrifuge for lab


This centrifuge drive motor is installed at the bottoom of centrifuge directly, the motor is connected directly with spindle of the centrifuge.

  1. It is matched INVT VFD, to guarantee it run smoothly.

  2. the design is easy to clean.

  3. You can choose stainless steel ,304,316L,2205, Titanium material, Hastelloy alloy.

  4. It can be customized with PTFE sealing ring, lined with Halar, lined with plastic.

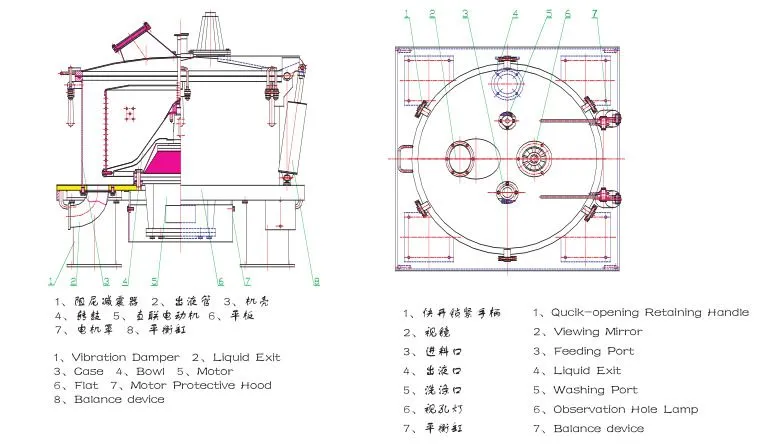

Schematic




Technical Parameters


Items PBL300 PBL450 PBL600 PBL800 PBL1000 PBL1200 PBL1250
Drum diameter (mm) 300 450 600 800 1000 1200 1250
Drum height (mm) 160 300 320 400 420 500 500
Drum speed (r / mm) 2845 2000 1500 1500 1000 1000 1000
Separation factor (Fr) 1360 1008 756 1008 560 672 700
Working volume (L) 5 20 45 100 140 250 300
Loading limit (kg) 7.5 30 70 135 200 350 400
Motor power (kw) 0.75 3 4 7.5 11 18.5 18.5
Dimensions (L × W × H) mm 630 × 630
× 640		 900 × 900
× 1000		 1000 × 1000
× 1070		 1200 × 1200
× 1180		 2000×1500× 1950 1800 × 1800
× 1380		 1800 ×1800
× 1380
Weight (kg) 250 600 1000 1500 2000 3000 3500
Opening height (mm) 1030 1470 1700 1940 2250 2590 2650




Product Tags: centrifuge , Laboratory centrifuge , mini centrifuge
