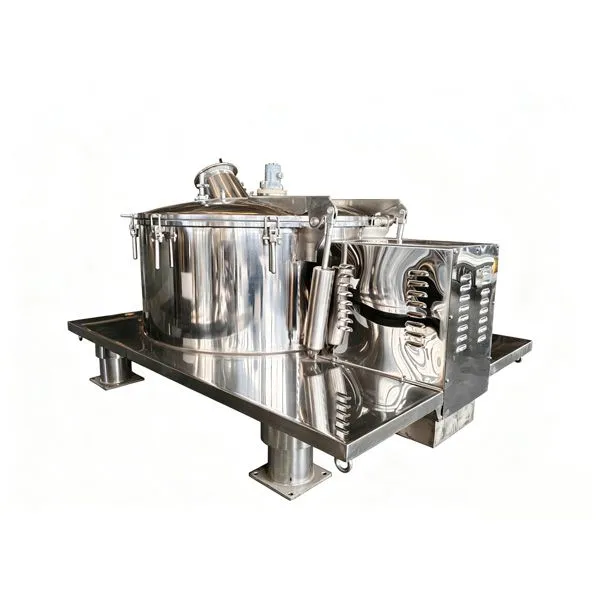

PB Manual top discharge centrifuge Industrial flat centrifuge Chemical Pharmaceutical New Materials
Working principle
PB series centrifuge is a closed operation, intermittent working centrifuge designed according to the requirements of national pharmaceutical production GMP regulations. The structure design of the large flip cover, the machine cover is equipped with a mechanical balance device, opening the cover is safe and labor-saving, and the closed operation. The materials are added from the feeding tube on the machine cover, separated by a high-speed rotating drum, and the materials are washed. After the separation is completed, the cover is opened and discharged manually.
Performance and use
Fully-sealed structural design to avoid cross-contamination of materials and improve the environment. Flat structure, easy to clean. It is suitable for solid-liquid separation of suspension, and can also be used for dehydration of fibrous materials. It is widely used in toxic, harmful, flammable, explosive and other places.

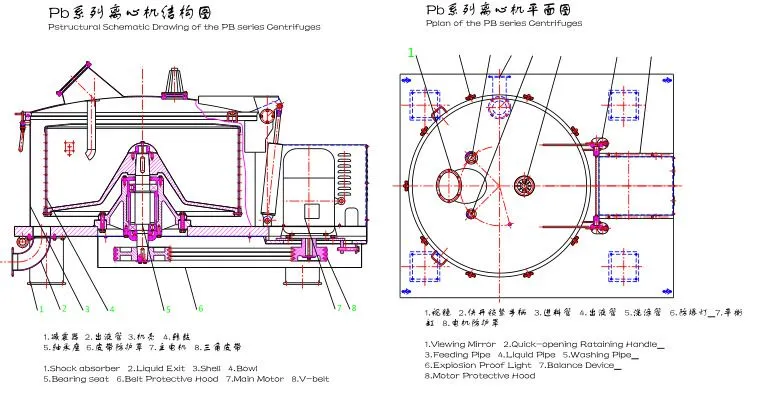

Schematic
Technical Parameters
| Item | PB450 | PB600 | PB800 | PB1000 | PB1200 | PB1250 | PB1250A |
| Drum diameter (mm) | 450 | 600 | 800 | 1000 | 1200 | 1250 | 1250 |
| Drum height (mm) | 300 | 320 | 400 | 420 | 500 | 500 | 600 |
| Drum speed (r / mm) | 2000 | 1600 | 1200 | 1000 | 1000 | 1000 | 1000 |
| Separation factor | 1008 | 860 | 645 | 560 | 670 | 700 | 700 |
| Working volume (L) | 20 | 45 | 100 | 140 | 250 | 300 | 360 |
| Loading limit (kg) | 30 | 70 | 135 | 200 | 350 | 400 | 500 |
| Motor power (kw) | 2.2 | 3 | 5.5 | 11 | 11 | 15 | 18.5 |
| Dimensions (L × W × H) mm | 1200×900 ×1000 |
1400×1000 ×1040 |
1600×1150 ×1180 |
2000×1500 ×1240 |
2200×1800 ×1400 |
2200×1800 ×1400 |
2200×1800 ×1500 |
| Weight (kg) | 650 | 1100 | 1500 | 2500 | 3200 | 3500 | 3800 |
| Opening height (mm) | 1430 | 1680 | 1930 | 2270 | 2560 | 2590 | 2700 |
