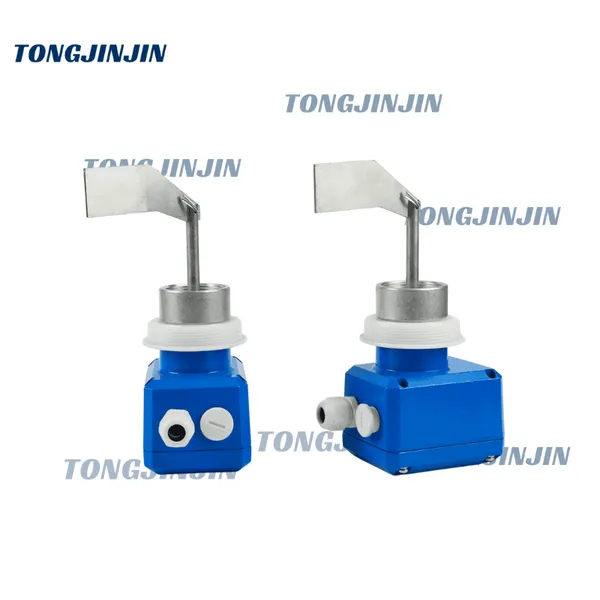

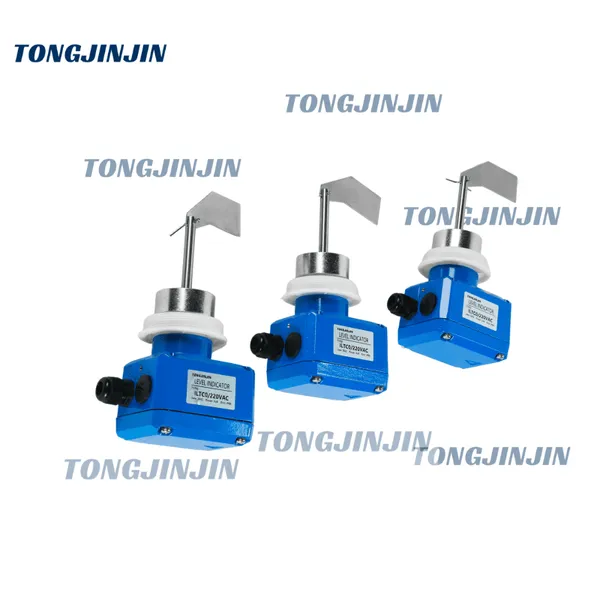

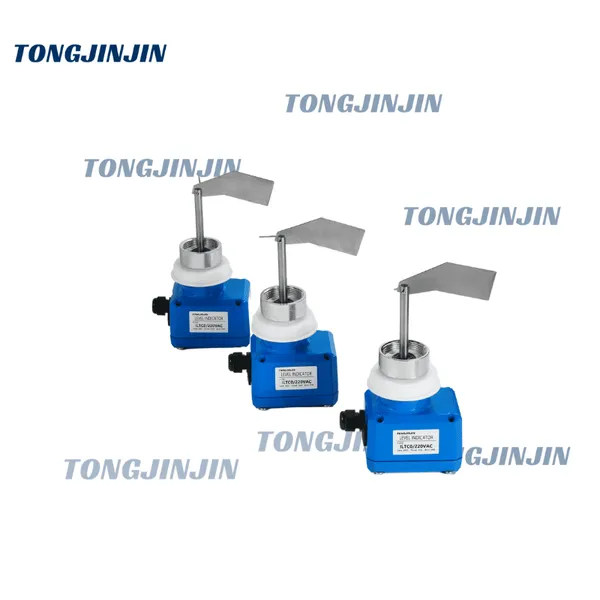

ILT Paddle Level Indicator
Rotary Paddle Level Switch for Silos, Bins & Hoppers
Precision Level Sensing | Dust‑Proof IP65 | All‑Material Stable Detection
The ILT Paddle Level Indicator is a heavy‑duty electromechanical point level switch engineered for high‑reliability limit detection of powder, granular, pellet, and bulk materials in silos, hoppers, bins, and conveying systems. It uses slow‑speed rotary paddle detection to trigger level signals, ensuring stable operation even in dusty, vibrating, or high‑moisture industrial environments.
Unique Core Advantages
✦ Slow‑Speed 1 RPM Paddle, Zero Material Damage
Operates at only 1 revolution per minute with gentle mechanical contact. No impact, no crushing, no material segregation—ideal for fragile, light, or abrasive bulk solids.
✦ IP65 Fully Sealed & Dust‑Proof Structure
Dual‑layer shaft seal and fully enclosed housing block fine powder and dust intrusion. Stable in long‑term cement, fly ash, chemical, grain, and plastic granule applications, almost maintenance‑free.
✦ Built‑in Overload Protection & Self‑Reset
Integrated slip clutch protects the gear and motor from sudden impact or overload. Automatic reset when material level drops, no manual intervention needed, ensuring 24/7 stable operation.
✦ Ultra‑Wide Compatibility for All Densities
Works reliably with materials from light powder to heavy granules. Sensitivity optimized for consistent triggering, no false alarms or missed signals across cement, lime, flour, plastic pellets, sand, and grain.
✦ Quick Installation & Universal Thread Mount
Standard threaded connections (G 1¼”, G 1½”, G 2½”) for top or side mounting. Retrofit friendly on existing silos and bins without modification, plug‑and‑play commissioning.
✦ Wide Temperature & Pressure Adaptability
Stable operation from -20°C to +80°C process temperature and up to 0.8 bar internal pressure. Suitable for indoor, outdoor, and harsh industrial sites.
✦ Multi‑Voltage & Reliable Signal Output
Supports AC 110V/220V, AC 24V/48V, DC 24V power inputs. Standard SPDT relay output for direct connection to PLC, alarm, or control system, strong anti‑interference performance.
Technical Specifications
| Item | Parameter |
|---|---|
| Model | ILT Series |
| Working Principle | Rotary paddle level detection |
| Paddle Speed | 1 rpm |
| Response Delay | Approx. 1.3s |
| Protection Grade | IP65 |
| Process Pressure | ≤ 0.8 bar (11.5 PSI) |
| Process Temp | -20°C ~ +80°C |
| Ambient Temp | -20°C ~ +70°C |
| Paddle Material | Stainless Steel |
| Process Connection | G 1¼”, G 1½”, G 2½” |
| Signal Output | SPDT mechanical switch |
| Contact Rating | AC 250V/2A, DC 300V/2A |
| Weight | 1.2 kg |
Application Scenarios
Cement & fly ash silos
Lime, gypsum, and building material bins
Food flour, starch, milk powder, grain silos
Plastic granules, chemical powder hoppers
Sand, gravel, and granular material bins
Conveying system limit level control
Why Choose TONGJINJIN ILT Level Indicator
True mechanical reliability: No calibration, no drift, unaffected by humidity or dust
Long service life: Sealed design, low wear, low failure rate
Cost‑effective: Low power use, minimal maintenance, easy retrofit
Factory direct supply: Stable quality, fast delivery, professional technical support
Fully interchangeable: Compatible with mainstream silo level systems
