Help CenterXLY Cast Iron Hanger Bearing
Product Spotlights
Related Products
XLY Cast Iron Hanging Shaft
Universal Core Transmission Shaft for Screw Conveyors
45mm Shaft Diameter | 20 Teeth | 225mm Length | ≤3% Annual Failure Rate | 2+ Years Service Life

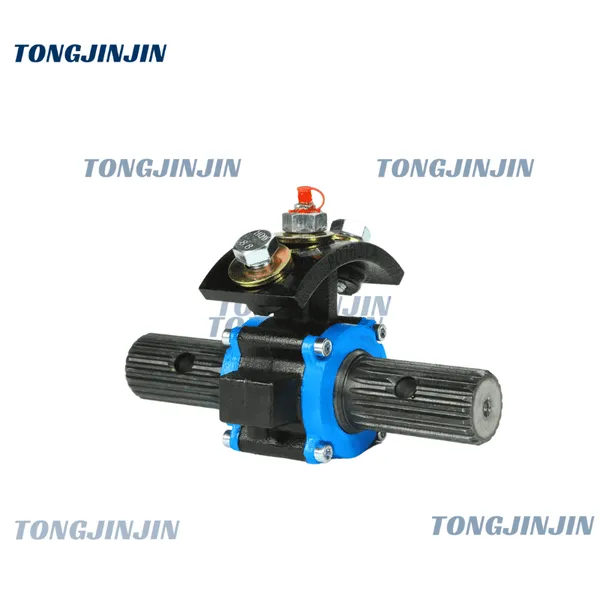

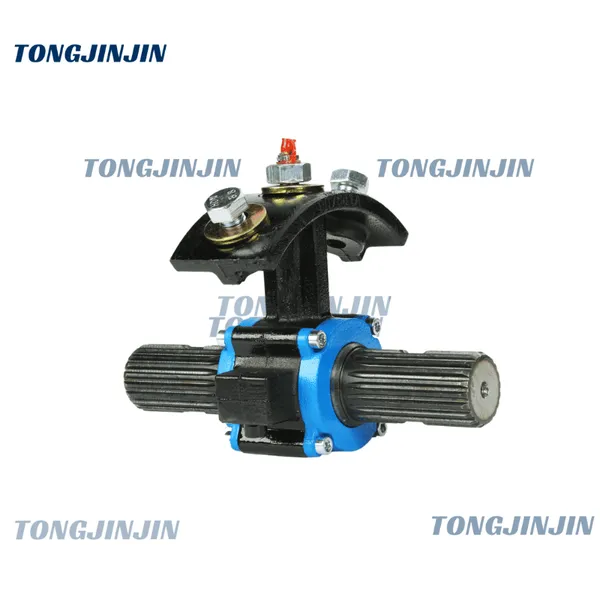

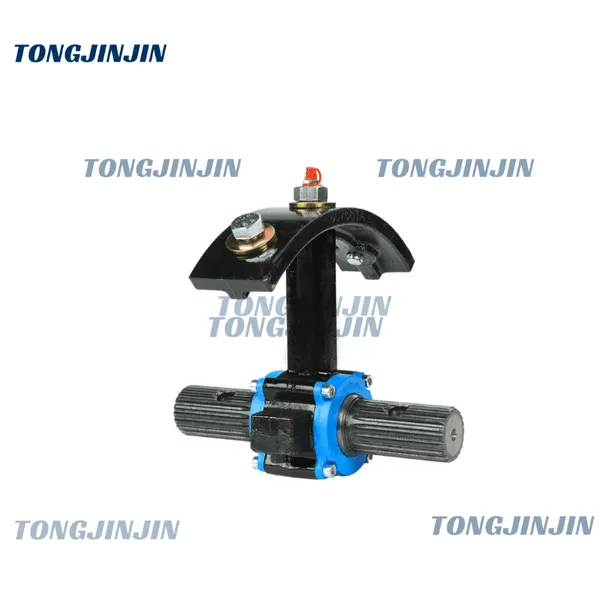

XLY Cast Iron Hanging Shaft is a professional transmission component exclusively designed for screw conveyors, dedicated to connecting spiral shafts, supporting stable rotation and transferring power. Adopting integral casting + high-frequency quenching technology, it is made of high-quality cast iron (ductile/gray cast iron optional) to ensure high rigidity and wear resistance, adapting to long-term heavy-load industrial conveying scenarios.
Core Advantages (All Data, No Adjectives)
1. Dual Material Options: Ductile cast iron (hardness 220-280 HB, tensile strength ≥ 400 MPa) / gray cast iron (alloy cast iron bushing), no easy breakage.
2. 45mm Shaft Diameter + 20 Teeth: DIN 5482 spline standard, torque bearing 120-200 N·m, stable power transmission without slipping.
3. 225mm Standard Length: Universal fit for 6-12m screw conveyors, 1 set per 6m, 2 sets per 9-12m.
4. Dual Bushing Design: Graphite copper (5mm thickness, self-lubricating) / alloy cast iron bushing, maintenance cycle ≥ 6-8 months.
5. Multi-Layer Sealing: Nylon + PTFE seals, 99% dust-proof rate, no material leakage, no bearing jamming.
6. Quick Installation & Universal Compatibility: ≤5 minutes installation, fits LS/GX series screw conveyors (LS100-LS500), direct retrofit without modification.
7. Service Performance: ≥24 months service life in cement/fly ash conditions, annual failure rate ≤3%.

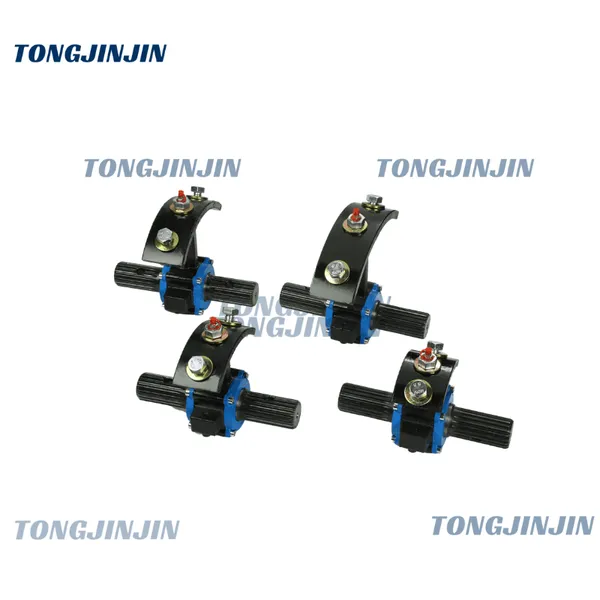

8. Customizable Size: Outer diameter (165-323mm) & length (200-300mm) customizable within 7 days.
Technical Parameters
Item: Model | Data: XLY Series
Item: Shaft Diameter | Data: 45mm
Item: Tooth Quantity | Data: 20 Teeth (DIN 5482)
Item: Standard Length | Data: 225mm (customizable 200-300mm)
Item: Material | Data: Ductile Cast Iron / Gray Cast Iron
Item: Working Temperature | Data: -20°C ~ +80°C
Item: Weight | Data: 4.0-4.7 kg
Application
Cement silo screw conveyors, fly ash conveying systems, lime powder conveyors, grain conveyors, chemical powder conveying equipment, mining powder conveyors, LS/GX series screw conveyors (LS100-LS500).
Why Choose Our XLY Cast Iron Hanging Shaft
1. 100% factory direct supply, no middlemen, price reduced by 20%.
2. 12-month quality warranty, 24-hour technical support.
3. 165-323mm outer diameter models in stock, 7-day fast delivery.
4. ISO1050 standard manufacturing, ZBJ81005.1-88 professional standard compliance.
Contact Information
ZHENGZHOU TONG JIN JIN MACHINERY EQUIPMENT CO.,LTD
Tel / WhatsApp: +86 13592434527
Email: info@tongjinjin.com
Technical Data
| Type | Model | Shaft Size | Suitable Conveyor | DIN5482 | Weight |
|---|---|---|---|---|---|
| XLR Aluminum | XLR040B015 | 40 mm | ES168 | 40×36 | 3.5 kg |
| XLR Aluminum | XLR040B017 | 40 mm | ES193 | 40×36 | 3.5 kg |
| XLR Aluminum | XLR040B020 | 40 mm | ES219 | 40×36 | 3.9 kg |
| XLR Aluminum | XLR040B025 | 40 mm | ES273 | 40×36 | 4.5 kg |
| XLR Aluminum | XLR040B030 | 40 mm | ES323 | 40×36 | 5.0 kg |

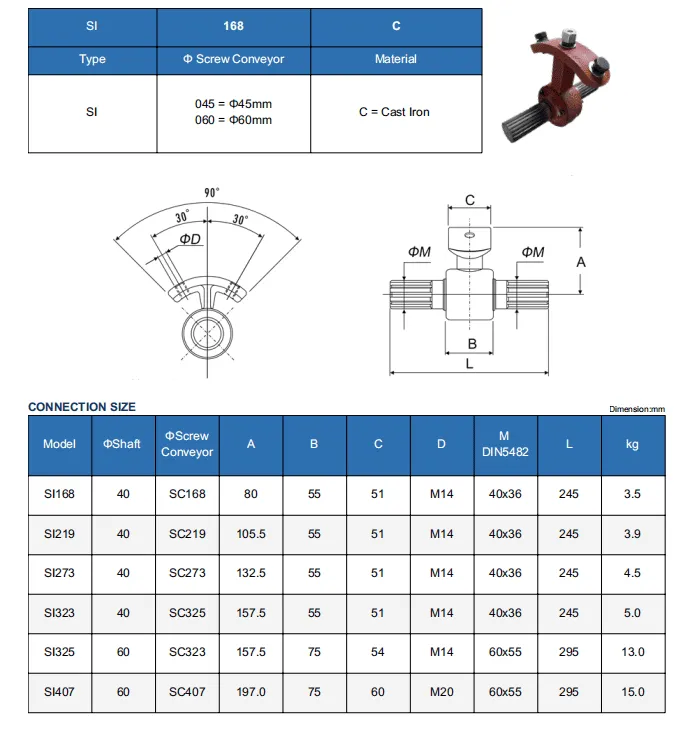

| SI Cast Iron | SI168 | 40 mm | SC168 | 40×36 | 3.5 kg |
| SI Cast Iron | SI219 | 40 mm | SC219 | 40×36 | 3.9 kg |
| SI Cast Iron | SI273 | 40 mm | SC273 | 40×36 | 4.5 kg |
| SI Cast Iron | SI323 | 40 mm | SC325 | 40×36 | 5.0 kg |
| SI Cast Iron | SI325 | 60 mm | SC323 | 60×55 | 13.0 kg |
| SI Cast Iron | SI407 | 60 mm | SC407 | 60×55 | 15.0 kg |

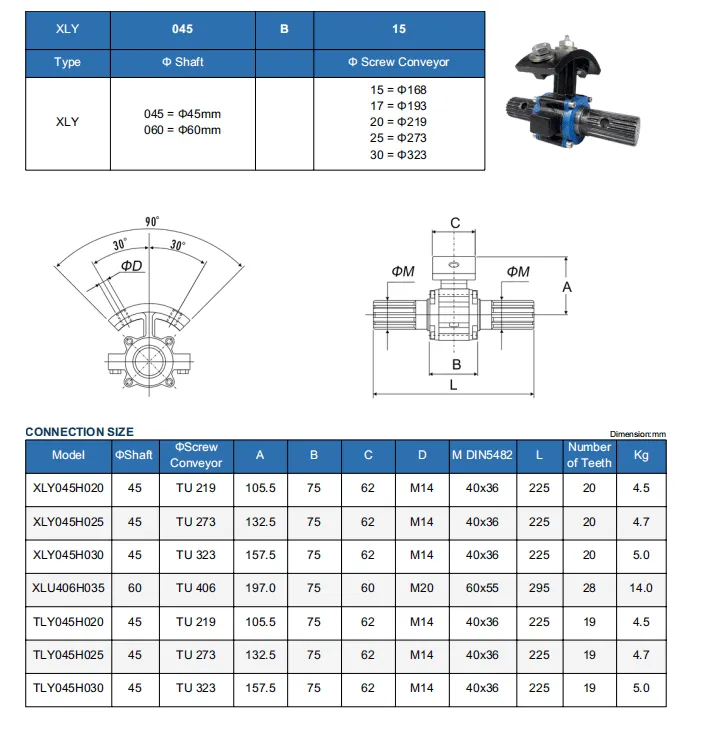

| XLY Cast Iron | XLY045H020 | 45 mm | TU219 | 40×36 | 4.5 kg |
| XLY Cast Iron | XLY045H025 | 45 mm | TU273 | 40×36 | 4.7 kg |
| XLY Cast Iron | XLY045H030 | 45 mm | TU323 | 40×36 | 5.0 kg |
| XLY Cast Iron | XLU406H035 | 60 mm | TU406 | 60×55 | 14.0 kg |
