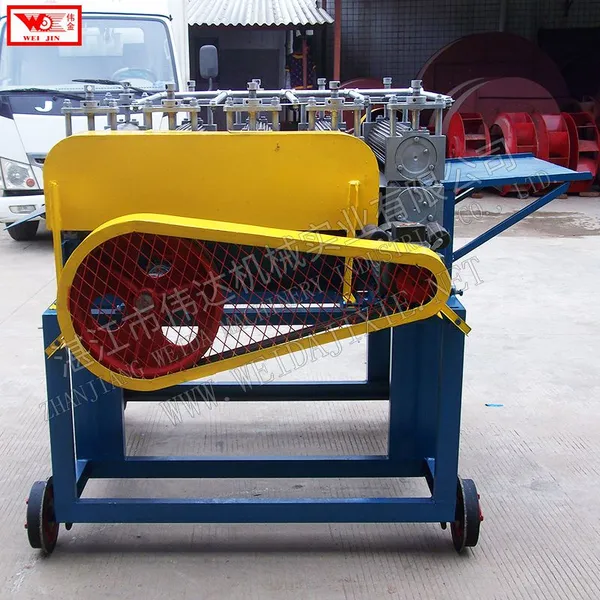

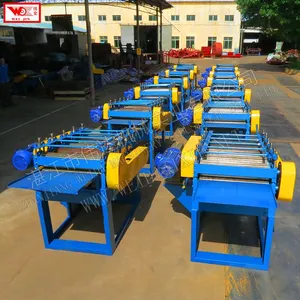

Five-in-One Sheeting Machine (5YP-150×650) Detailed Description
Product Overview
The Five-in-One Sheeting Machine is a specialized piece of equipment designed for the processing of coagulated natural latex. It is a core machine in the production line for manufacturing Ribbed Smoked Sheets (RSS), commonly known as smoked rubber sheets.
This all-in-one machine replaces the traditional multi-step process by integrating five pairs of continuous rollers, completing dewatering, thinning, sheeting, and pattern forming in a single pass. It is ideal for small to medium-sized rubber plantations and processing factories aiming for high efficiency and consistent output.
Working Principle
Coagulated latex blocks are fed into the hopper and pass through five pairs of rollers in sequence. Each subsequent pair of rollers applies increasing pressure to squeeze out excess moisture and gradually reduce the thickness of the rubber. The surface of the rollers is precision-machined with grooves, which press a characteristic diamond pattern onto the rubber sheet. This pattern increases the surface area, accelerating drying and preventing the sheets from sticking together. The finished product is a uniformly thin, textured rubber sheet ready for the smoking process.
Core Specifications
| Item | Specification |
|---|---|
| Model | 5YP-150×650 |
| Roller Length | 650 mm |
| Roller Diameter | 152 mm |
| Motor Power | 4 kW |
| Max. Input Size (Thickness × Width) | 35 mm × 280 mm |
| Finished Sheet Thickness | 3 – 5 mm |
| Production Capacity | 1000 kg/h (Dry Rubber Sheet) |
| Number of Rollers | 5 pairs (10 rollers total) |
Key Features & Advantages
High-Efficiency Gear Transmission: High-precision gear drive provides strong torque, ensuring stable operation and consistent pressing force.
Heavy-Duty Solid Steel Rollers: Made of high-strength solid steel for rigidity and durability, delivering smooth, uniform sheets.
Anti-Slip Groove Design: Cross-groove feeding rollers ensure strong grip, preventing slippage and material jams.
All-in-One Integrated Design: Combines five pressing stages into one machine, saving space and labor costs.
Easy Operation & Maintenance: Simple controls and safety guards for user-friendly operation and easy maintenance.
Applications
Primary Use: Processing coagulated natural latex into ribbed smoked sheets (RSS).
End Markets: Smallholder rubber plantations, regional latex processing cooperatives, and medium-sized rubber factories in Southeast Asia, Africa, and Latin America.
After-Sales Support
Warranty: 12 months warranty against manufacturing defects.
Technical Support: English-language operation manuals, video tutorials, and online technical support are provided.
Spare Parts: Critical spare parts are kept in stock for quick delivery.
For more professional rubber processing solutions, please visit our official website:
For more details about our full range of rubber processing machinery,welcome to visit our official website:
