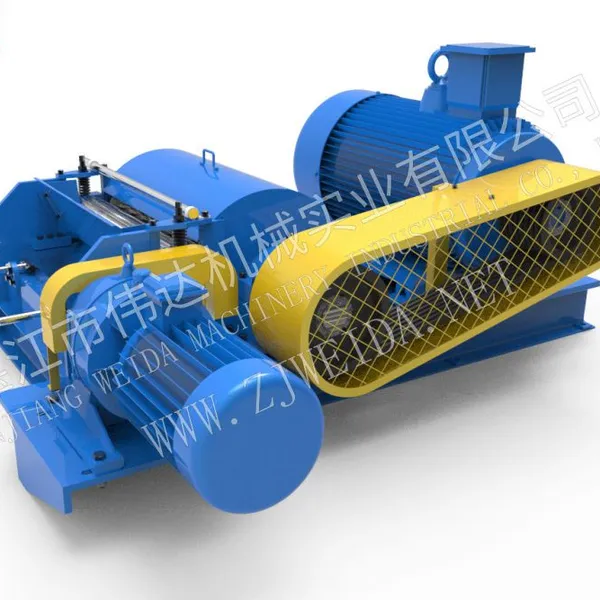

Help CenterSL Series Rubber Shredder | Natural Rubber Crepe to Granules Processing Machine
Product Spotlights
2.Alloy cast steel rollers, SPC belt pulleys, reinforced bearing seats for long service life.
3.Compact structure, sensitive rotation, low downtime and labor cost.
Related Products
-
Twin Helix Breaking Crushing Cleaning Machine for Natural Rubber ProcessingNegotiableMOQ: 1 Unit -
WEIJIN SINGLE HELIX BREAKING CRUSHING CLEANING MACHINE for Natural Rubber ProcessingNegotiableMOQ: 1 Unit
-
Horizontal Hydraulic Rubber Cutting Machine for Natural/Compound RubberNegotiableMOQ: 1 Unit
-
Automatic Hydraulic Rubber Packing Machine for Natural Rubber ProcessingNegotiableMOQ: 1 Unit
-
High Efficiency Five in One Sheeting Machine for Natural RubberNegotiableMOQ: 1 Unit
SL Series Rubber Shredder - Weida Machinery
Product Overview
The SL series rubber shredder is one of the main processing equipment for granulation in natural rubber standard rubber and crumb rubber production lines. It is specially designed to process crepe rubber (after dewatering by creper) into uniform rubber granules, which is convenient for subsequent drying.
The machine works by extruding and shearing the rubber sheet between the high-speed rotating breaking roller with diagonal pattern and the fixed blade block, forming qualified rubber particles.
Working Principle
The breaking roller rotates driven by the main motor through belts, while the feeding roller rotates at a low speed driven by the cycloidal gear reducing motor through chains. The rubber sheet is fed into the gap between the breaking roller and the fixed blade. The high-speed rotating breaking roller with diagonal pattern brings the rubber sheet in, extrudes and shears it with the fixed blade block, forming rubber particles that meet the requirements.
Core Structure
Motor: Provides stable power for continuous operation
Breaking Roller: Alloy cast steel material, with diagonal pattern, high rigidity and wear resistance
Belt Pulley: SPC European standard cone sleeve type, high efficiency and stable transmission
Feeding Reducer & Feeding Roller: Ensures stable feeding of rubber sheet
Fixed Blade Plate: Cooperates with the breaking roller to complete shearing and granulation
Bearing Seat: Reinforced structure, sensitive rotation, easy maintenance
Frame: Thick steel plate welding, stable and reliable
Model & Data
| Model | Roller Working Diameter×Length | Feeding Roller Working Diameter×Length | Power | Production Capacity |
|---|---|---|---|---|
| 300×600 | 300×600mm | 156×595mm | 45kw + 3kw | 1t/h |
| 365×760 | 365×760mm | 156×745mm | 75kw + 5.5kw | 3t/h |
| 420×800 | 420×800mm | 180×795mm | 110/132kw + 7.5/11kw | 5t/h |
| 508×800 | 508×800mm | 180×795mm | 132/160kw + 15kw | 8t/h |
| 560×800 | 508×800mm | 180×795mm | 160kw + 15kw | 8t/h |
Design Highlights
✅ Premium Material: The breaking roller is made of alloy cast steel, with high rigidity, hardness, sensitive rotation, uniform granulation, and super strong wear and corrosion resistance.
✅ Reinforced Structure: Every detail is carefully crafted, with excellent load-bearing performance, compact structure, sensitive rotation, convenient installation and maintenance, greatly reducing the time and cost of frequent replacement of inferior bearings.
✅ High-efficiency Transmission: Adopts high-quality SPC European standard cone sleeve type belt pulley, with superior quality, convenient disassembly and assembly, stable operation, high efficiency, can effectively reduce transmission loss.
✅ Customized Solution: Different models are available to meet the production needs of different scales, and we provide tailor-made design according to customer requirements.
Application
This rubber shredder is widely used in:
Natural rubber standard rubber production line
Crumb rubber production line
Natural rubber processing factory
Rubber granulation and drying line
