Essential Oil Distillers introduction
This unit is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.

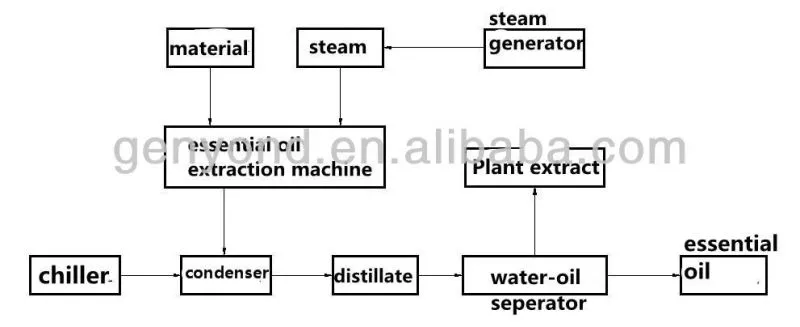

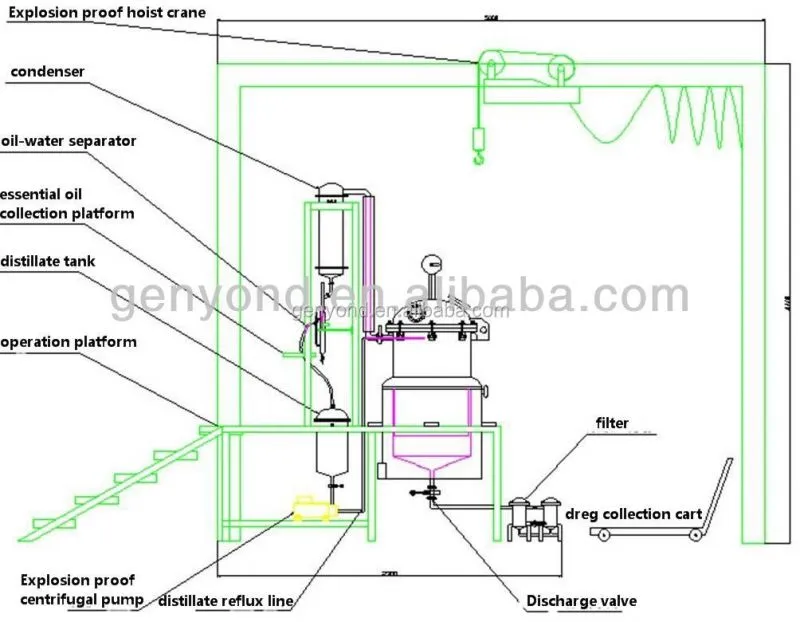

Flow chart of essential oil production process

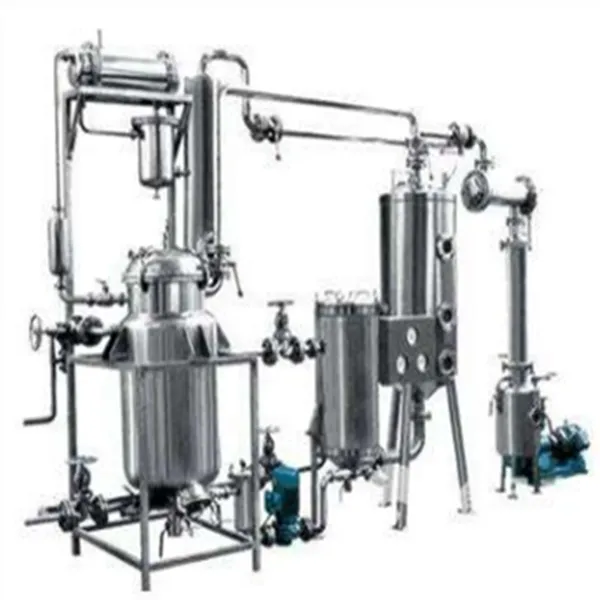

Essential Oil Distillers Main equipment
1, Extracting tank 2, Oil-water separator 3, Receiver 4, Oil cooling system 5, Plate distillation system
6, Vacuum system 7, Frame 8, Pipes 9, Valves 10, Digital temperature sensor.
GENYOND Essential Oil Distillers Advantage
1. This equipment is made of SUS304 stainless steel with special frame.
2. It has three layers SS Plate distillation system which can extract the oil efficiently.
3. This machine equips Digital control system and Touch screen display control system.
4. Easy operation,one people can operate this machine easily.
5. Compact structure,it covers only about 1.5 square meter.
6. We can also make it according to your request.
Essential Oil Distillers Models for our small machine
|
Model |
Capacity (L/3-4hr) |
Power (KW/H) |
Supply Power |
Dimension(mm) |
|||
|
Voltage |
Phase |
Length |
Width |
Height |
|||
|
EO-10 |
10 |
4.5 |
380/220 |
3 |
1300 |
550 |
1800 |
|
EO-20 |
20 |
5.5 |
380/220 |
3 |
1200 |
700 |
1700 |
|
EO-30 |
30 |
6 |
380/220 |
3 |
1300 |
800 |
1700 |
|
EO-40 |
40 |
7.3 |
380/220 |
3 |
1400 |
700 |
1800 |
|
EO-50 |
50 |
7.5 |
380/220 |
3 |
1600 |
850 |
1800 |
|
EO-60 |
60 |
8 |
380/220 |
3 |
1600 |
850 |
1850 |
|
EO-80 |
80 |
9 |
380/220 |
3 |
1700 |
850 |
1900 |
|
EO-100 |
100 |
12 |
380/220 |
3 |
1700 |
900 |
2100 |
|
EO-150 |
150 |
18 |
380/220 |
3 |
1800 |
900 |
2100 |
|
EO-200 |
200 |
25 |
380/220 |
3 |
1800 |
1000 |
2100 |
|
EO-300 |
300 |
38 |
380/220 |
3 |
1900 |
1000 |
2100 |
|
Note: Besides the above model, we also have 500L,1000L,1500L,2000L,3000L and above.
1. Steam extraction part is popular with the structure of basket-in-water 2. Operation part has adopted PLC or touch screen control system, this accords to customer’s demand. 3. This unit is automatically operate. 4. All kinds of plants can be the material of automatic rose oil extraction equipment . |
|||||||
Raw material can be use to extract essential oil as below for reference:
Conventional plant mosaic: roses, osmanthus, Wild chrysanthemum, lavender, wormwood, rosemary, bloom, SJ, see the May grass, mint, thyme;
Plant roots: aloes, ginger, aloe vera, cloves, Atractylodes;
Plant fruit: passion fruit, pepper, castor bean, star anise, grape seed, lemon, Litsea, pine nuts.
