Factory Genyond Automatic Citrus Peel Grinder Grinding Equipment Orange Skin Essential Oil Extractor Machine Extraction Line
US$ 16500.00
≥1 Set
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Engine, Bearing, Gear
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cold Press Citrus Fruit Oil Extraction MachineUS$ 16500.00MOQ: 1 Set -
5L 10L 20L Home & Lab Use Small Commercial Use Shop Display Essential Oil Distillation Distiller Equipment Extraction MachineUS$ 980.00 - 1380.00MOQ: 1 Set
-
50-100L Magnolia Flower Essential Oil Extractor Machine Essential Oil Distillation Extraction MachineUS$ 8000.00MOQ: 1 Set
-
100L - 500L Honeysuckle Plant Flower Leaf Essential Oil Extractor Extraction Machine Essential Oil Distillation EquipmentUS$ 4500.00MOQ: 1 Set
-
Factory High Efficiency Stainless Steel Short Path Wiped Film Molecular Distiller Machine Molecular Distillation Unit EquipmentUS$ 8000.00MOQ: 1 Box
video outgoing-inspection
Provided
machinery test report
Provided
core components
Engine, Bearing, Gear
place of origin
Shanghai, China
brand name
Genyond
type
fruit process
voltage
380V 50Hz
power(w)
3kw
weight
600 KG
dimension(l*w*h)
as per model
warranty
2 Years
Application
Fruit
Function
Multifunctional
Material
SUS304
Capacity
500-1000kg/h
Feature
High Efficiency Easy Operate
MOQ
1 Set
Advantage
Environment-friendly
Suitable for
citrus fruit
After-sales Service Provided
Online support
Certification
ISO CE
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
Showroom Location
None
Marketing Type
Ordinary Product
Warranty of core components
2 Years
Condition
New
Year
2021
Product Description
Citrus fruit skin oil grinder is suitable for the skin grinding oil of all kinds citrus fruits, like orange, lemon, tangerine,
tangerine, grapefruit, and other fruits Structure characteristics and working principle of lemon oil mill:

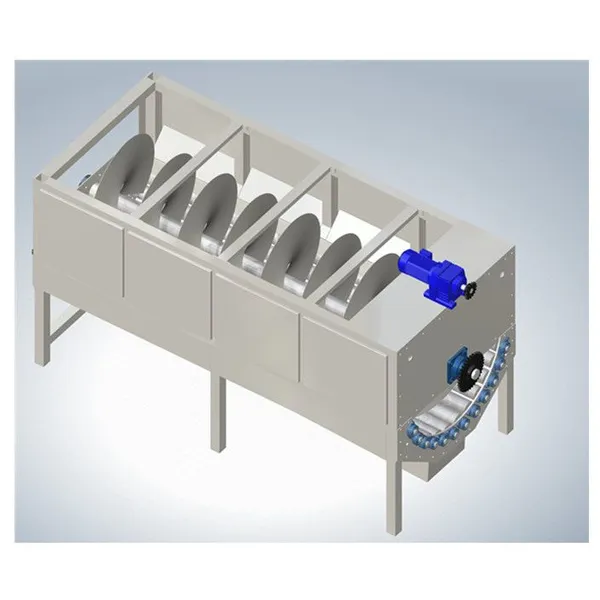

The equipment is composed of spiral, grinding roller, inlet and outlet hopper, spray pipe, water collection trough, etc. When
working, the material enters the middle of the spiral and moves to the discharge port through the spiral. Rub with the barbed grinding roller at the bottom to achieve the effect of oil grinding. At the same time, the high-pressure water of the upper spray pipe washes the oil away into the sump and enters the next separation process;
It is mainly composed of two parts, a stainless steel toothed roller and a toothed screw shaft. When working, the citrus fruit moves axially along the toothed roller under the advancement of the screw shaft and rolls. The stainless steel tooth pierces the oil cell and the oil is washed away by high-pressure water at the same time. , Enter the post-separation process.
It is widely used in oil grinding conditions in large citrus processing plants.

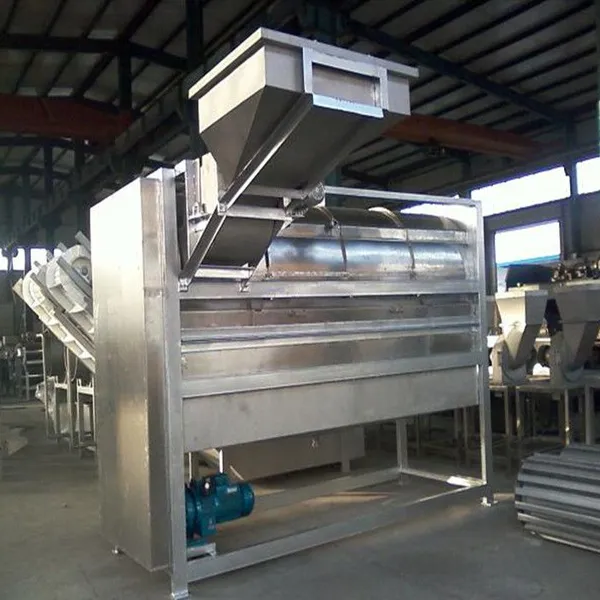

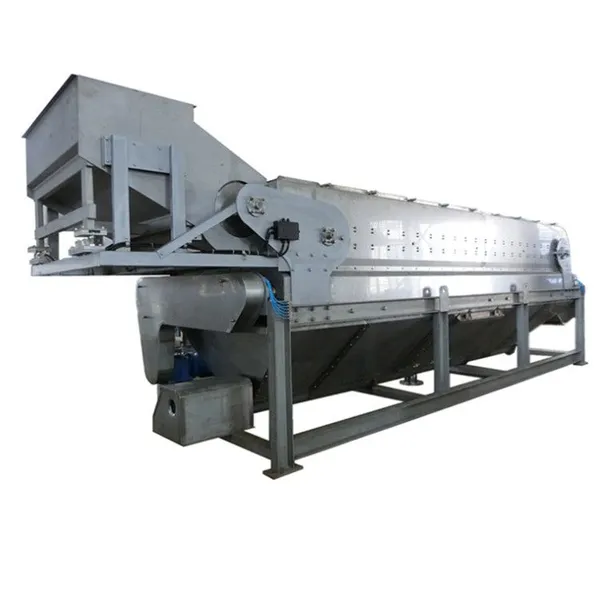

The equipment is that the oranges and tangerines move forward and roll under the rotation of the stainless steel needled drum.
At the same time, the stainless steel needle pierces the oil cells, so that the oil in the oranges and orange peels flows out, and the oil is removed under the action of high-pressure spray water. Flush, so as to achieve the effect of oil separating.
The machine is composed of frame, reducer, reducer sprocket, sprocket cover, transmission sprocket and other components. Whenworking, the stainless steel needled drum rotates under the drive of the drive sprocket, so that the fruit in the drum rolls at 306 degrees and advances forward, which is conducive to the stainless steel needle piercing the fruit oil cells, causing the oil in the fruit skin to flow out, and the high-pressure water will The oil is washed away, so that the oil on the surface of the fruit can be quickly separated to achieve the effect of oil removal.
tangerine, grapefruit, and other fruits Structure characteristics and working principle of lemon oil mill:
The equipment is composed of spiral, grinding roller, inlet and outlet hopper, spray pipe, water collection trough, etc. When
working, the material enters the middle of the spiral and moves to the discharge port through the spiral. Rub with the barbed grinding roller at the bottom to achieve the effect of oil grinding. At the same time, the high-pressure water of the upper spray pipe washes the oil away into the sump and enters the next separation process;
It is mainly composed of two parts, a stainless steel toothed roller and a toothed screw shaft. When working, the citrus fruit moves axially along the toothed roller under the advancement of the screw shaft and rolls. The stainless steel tooth pierces the oil cell and the oil is washed away by high-pressure water at the same time. , Enter the post-separation process.
It is widely used in oil grinding conditions in large citrus processing plants.
The equipment is that the oranges and tangerines move forward and roll under the rotation of the stainless steel needled drum.
At the same time, the stainless steel needle pierces the oil cells, so that the oil in the oranges and orange peels flows out, and the oil is removed under the action of high-pressure spray water. Flush, so as to achieve the effect of oil separating.
The machine is composed of frame, reducer, reducer sprocket, sprocket cover, transmission sprocket and other components. Whenworking, the stainless steel needled drum rotates under the drive of the drive sprocket, so that the fruit in the drum rolls at 306 degrees and advances forward, which is conducive to the stainless steel needle piercing the fruit oil cells, causing the oil in the fruit skin to flow out, and the high-pressure water will The oil is washed away, so that the oil on the surface of the fruit can be quickly separated to achieve the effect of oil removal.
Specification
Model |
Capacity |
Power( kw) |
Dimension (mm) |
MYJ-0.5 |
0.5T/H |
3 |
2200X800X1600 |
MYJ-1 |
1-2T/H |
3.7 |
2600×900×1800 |
MYJ-2 |
2-3T/H |
7.0 |
3200×1000×2000 |
MYJ-5 |
5T/H |
18 |
4000X1200X2000 |
MYJ-10 |
10T/H |
22 |
5500X1400X2500 |
