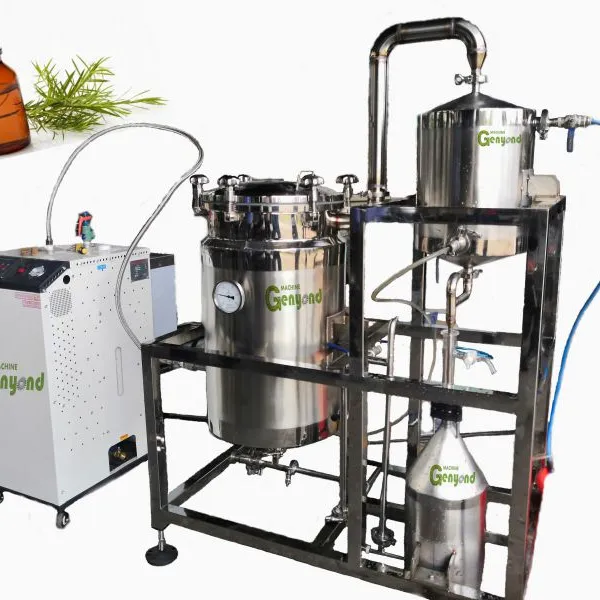

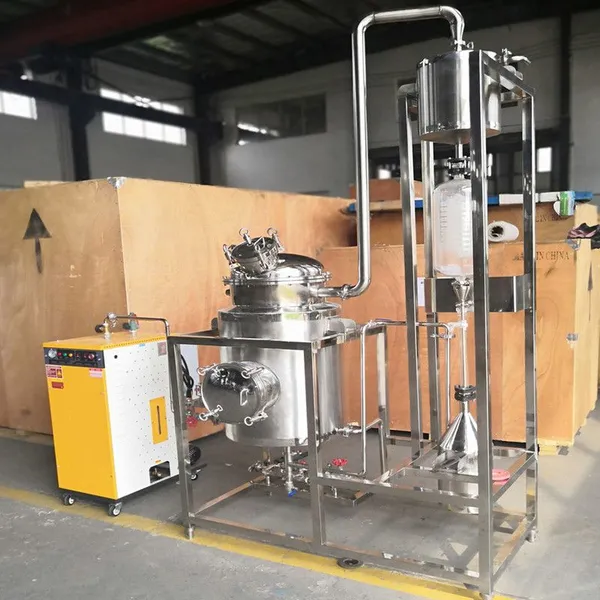

50-100L Magnolia Flower Essential Oil Extractor Machine Essential Oil Distillation Extraction Machine
US$ 8000.00
≥1 Set
Key Specifications
Get Latest Price
brand name:
GENYOND
place of origin:
Jiangsu,China
condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100L - 500L Honeysuckle Plant Flower Leaf Essential Oil Extractor Extraction Machine Essential Oil Distillation EquipmentUS$ 4500.00MOQ: 1 Set -
Factory High Efficiency Stainless Steel Short Path Wiped Film Molecular Distiller Machine Molecular Distillation Unit EquipmentUS$ 8000.00MOQ: 1 Box
-
100L - 500L Jojoba Oil Essential Oil Distillation Equipment Extraction Equipment Distiller Extractor MachineUS$ 3600.00MOQ: 1 Set
-
Household Portable 30L 50L 100L 200L Essential Oil Still Plant Oil Extracting Machine Essential Oil Distillation MachineUS$ 8000.00MOQ: 1 Box
-
8" 12" Oil Extraction Wiped Film Still Molecular DistillationUS$ 8000.00MOQ: 1 Box
brand name
GENYOND
place of origin
Jiangsu,China
condition
New
dimension(l*w*h)
customized
Key Selling Points
High Productivity
voltage
220V/50HZ
warranty
1 Year
weight
300 KG
power(w)
0.6-0.8
Applicable Industries
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Food & Beverage Shops, Other
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
2 Years
Core Components
PLC, Engine
Marketing Type
Hot Product 2024
Year
2024
Product Description
The essential oil extracting machine uses distillation technology and chemical separation,which can extract plant components efficiently by steam distillation,and have good effect in collecting essential oil from plants,flowers,leaves,wood, such as rose,lavender,eucalyptus leaves,lemongrass citronella,sandalwood,etc.
Working Principle:
By steam distillation or water distillation, the steam passes through plants material and vapourises oil,mixtures of steam and oil vapors go into the condenser.After the cooling,oil formed.This is the ideal device for you to make essential oil no matter for laboratory use or batch production.
By steam distillation or water distillation, the steam passes through plants material and vapourises oil,mixtures of steam and oil vapors go into the condenser.After the cooling,oil formed.This is the ideal device for you to make essential oil no matter for laboratory use or batch production.
different raw material
1. for the essential oil extraction :
1.1Flowers:Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage; achillea millefolium; osmanthus; peony;
1.2 Leaves:Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil.
1.3 Roots:Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
1.4 Grasses :Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose.
1.5 Wood: Sandalwood; cedar wood; rosewood; Birch; holly; camphor; melaleuca; sassafras.
1.6 Citrus: Bergamot; grapefruit; lemon; orange; lime; tangerine .
1.7 bark:Cinnamon.
1. for the essential oil extraction :
1.1Flowers:Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage; achillea millefolium; osmanthus; peony;
1.2 Leaves:Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil.
1.3 Roots:Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
1.4 Grasses :Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose.
1.5 Wood: Sandalwood; cedar wood; rosewood; Birch; holly; camphor; melaleuca; sassafras.
1.6 Citrus: Bergamot; grapefruit; lemon; orange; lime; tangerine .
1.7 bark:Cinnamon.
Processing flow

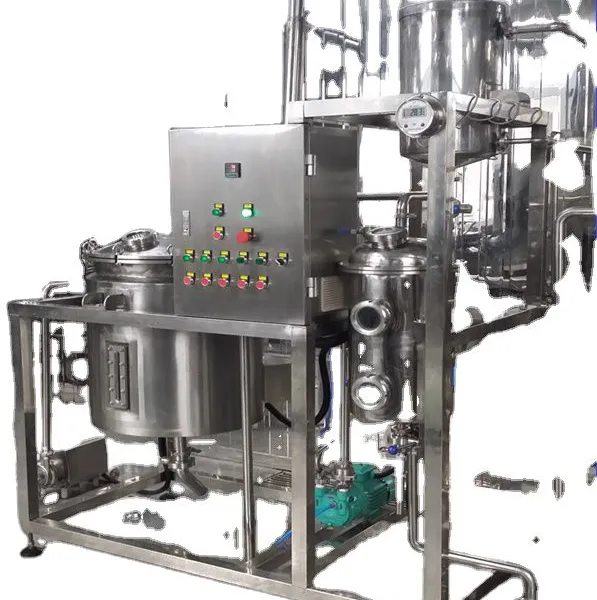

Detail Pictures
Specification
Small & Medium size Essential Oil Distiller (Electricity or steam) |
||||||||||||
Model |
Size |
Power |
Diameter of Condenser |
Material |
Heating Area of Extraction Tank |
Condensing Area of Condenser |
||||||
GYC10 |
10L |
4KW |
102mm |
SUS304 |
0.3M2 |
0.7M2 |
||||||
GYC20 |
20L |
4.5KW |
102mm |
SUS304 |
0.4M2 |
0.75M2 |
||||||
GYC30 |
30L |
5KW |
133mm |
SUS304 |
0.45M2 |
0.8M2 |
||||||
GYC50 |
50L |
11KW |
133mm |
SUS304 |
0.5M2 |
0.85M2 |
||||||
GYC100 |
100L |
15KW |
133mm |
SUS304 |
1.05M2 |
0.95M2 |
||||||
GYC150 |
150L |
17KW |
133mm |
SUS304 |
1.45M2 |
1.25M2 |
||||||
GYC200 |
200L |
20KW |
133mm |
SUS304 |
1.85M2 |
1.50M2 |
||||||
HEC300 |
300L |
25KW |
133mm |
SUS304 |
1.95M2 |
2.00M2 |
||||||
Large Customized Machines (steam ) |
||||||||||||
Model |
Size |
Temperature display |
Cooling water circulation pump |
Crane system |
Console |
Boiler |
||||||
GYC500 |
500L |
Digital temperature control system, with steam stop valve,drain valves, steam traps, etc. |
Cooling water circulation pump, 20tons/H, the cooling water through the pipe into the condenser |
750kg |
Carbon steel rust treatment table |
The gas coal electric boilers according customer local conditions to select |
||||||
GYC1000 |
1000L |
1000kg |
||||||||||
GYC1500 |
1500L |
1000kg |
||||||||||
GYC2000 |
2000L |
1000kg |
||||||||||
GYC3000 |
3000L |
1500kg |
||||||||||
GYC4000 |
4000L |
2000kg |
||||||||||
GYC5000 |
5000L |
2000kg |
||||||||||
Structure: A: up charging and up discharging (Crane system needed) B: up charging and side discharging C: up charging and bottle discharging |
||||||||||||
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
