Home > Industrial Equipment & Components > Universal Hardware Parts > Tungsten Carbide Cold Heading Dies

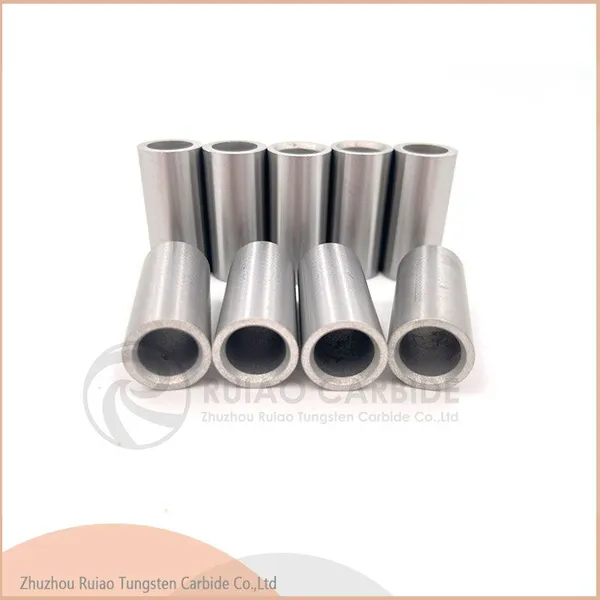

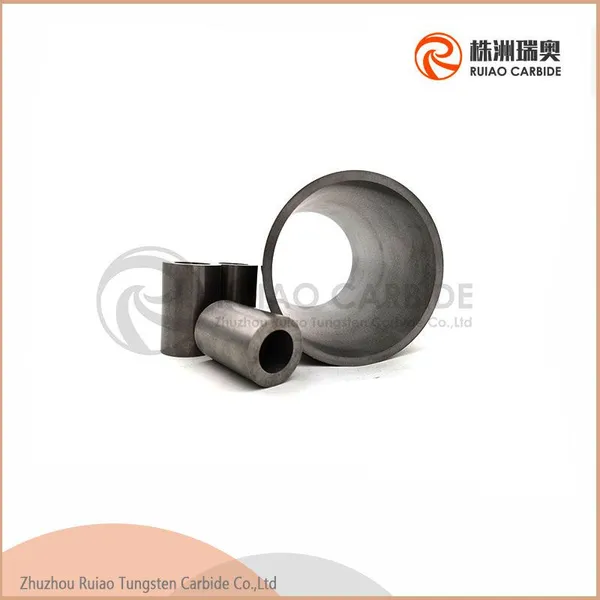

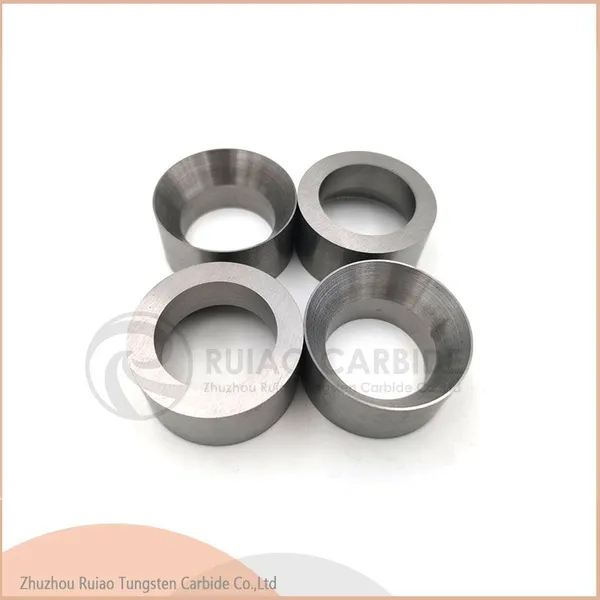

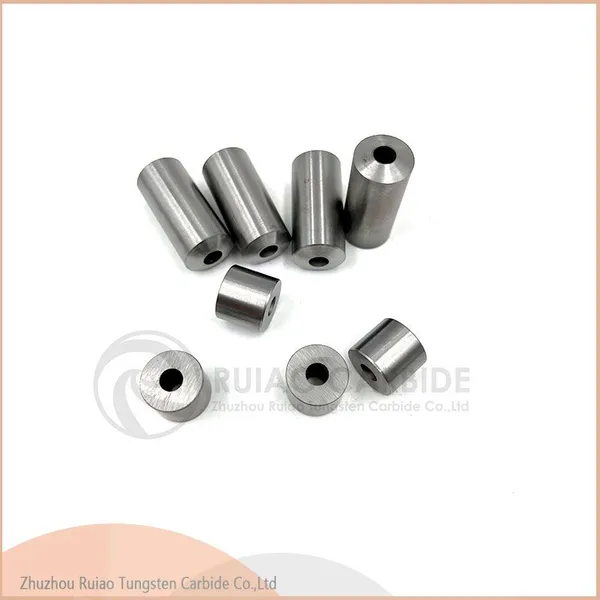

Tungsten Carbide Cold Heading Dies
Product Spotlights
Tungsten carbide dies for cold punching and heading of screws and nuts.
They are designed for copper, aluminum, steel standard component, screw nail, rivet,
etc. With high impact resistance, toughness, wear resistance, and quality consistency.
They are designed for copper, aluminum, steel standard component, screw nail, rivet,
etc. With high impact resistance, toughness, wear resistance, and quality consistency.
US$ 5 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Material:
Alloy
Type:
Other
Certification:
CE, ISO, Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China Port
Delivery Detail:
15 days
Related Products
Material
Alloy
Type
Other
Certification
CE, ISO, Other
Color
Other
Standard
International
Customized
Customized
Transport Package
Carton
Specification
12*75mm
Trademark
RA Carbide
Origin
China
Application of carbide dies :Cemented carbide wire drawing die as a tool material has been increasingly used for cutting tools, wear-resistant tools, impact-resistant tools, and other products with special purpose. Cemented carbide was first used in stretching mold area and has gone though cast iron mold, alloy steel mold, diamond dies, cemented carbide dies, polycrystalline module die and other developmental stages. With the property of high wear resistance, good polishing performance, low friction coefficient, etc., cemented carbide drawing die has been a substitute of steel mould which is used to stretching steel and non-ferrous metal.
Grades |
Density(g/cm³) | Hardness(HRA) | T·R·S(N/mm2) | Application |
| YG4C | 15.00 | 89.5 | 1800 | Maily used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG6 | 14.80 | 89.5 | 1700 | Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8 | 14.70 | 88.5 | 2300 | Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8C | 14.70 | 88.0 | 2300 | Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG9C | 14.50 | 87.0 | 2400 | Maily used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
| YG11C | 14.40 | 86.5 | 2450 | Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
| YG13C | 14.30 | 86.0 | 2500 | Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
| YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
| YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
| YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
Send Inquiry to This Supplier
Location
Zhuzhou, Hunan, China
