Help CenterHigh Purity Sapphire Crystal Watch Face Customized Size Polished Surface
Product Spotlights
Related Products
-
UV&IR Calcium Fluoride (CaF2) WindowsNegotiableMOQ: 10 Blades -
Customized Size 8 Inch Sapphire Wafer SubstrateNegotiableMOQ: 25 Blades
-
Synthetic AL2O3 Sapphire Crystal Sapphire Glass Tube and PipeNegotiableMOQ: 10 Pieces
-
200mm 8inch Al2O3 Sapphire Optical Windows , Silicon Substrate SSP DSP 1.0mm C – AxisNegotiableMOQ: 10 Blades
-
12inch C-aixs Al2O3 Sapphire Wafer Double Side PolishedNegotiableMOQ: 10 Blades

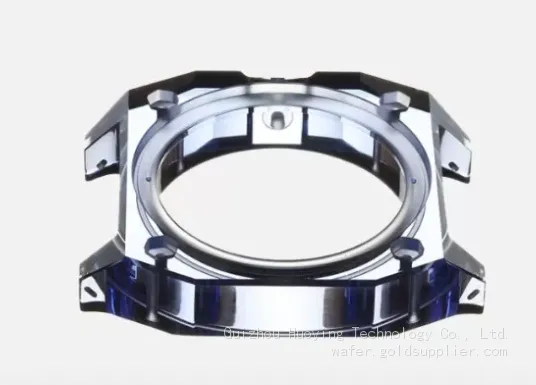

sapphire watch case
Properties of sapphire
| Physical | |
| Chemical formula | Al2O3 |
| Density | 3.97 g/cm3 |
| Hardness | 9 Mohs |
| Melting point | 2050oC |
| Max. use temperature | 1800-1900oC |
| Mechanical | |
| Tensile strength | 250-400 MPa |
| Compressive strength | 2000 MPa |
| Poisson’s ratio | 0.25-0.30 |
| Young’s Modulus | 350-400 GPa |
| Bending strength | 450-860 MPa |
| Rapture Modulus | 350-690 MPa |
| Thermal | |
| Linear expansion rate (at 293-323 K) | 5.0*10-6K-1(⊥ C) |
| 6.6*10-6K-1(∥ C) | |
| Thermal conductivity (at 298 K) | 30.3 W/(m*K)(⊥ C) |
| 32.5 W/(m*K)(∥ C) | |
| Specific heat (at 298 K) | 0.10 cal*g-1 |
| Electrical | |
| Resistivity (at 298 K) | 5.0*1018 Ω*cm(⊥ C) |
| 1.3-2.9*1019 Ω*cm(∥ C) | |
| Dielectric constant (at 298 K, in 103-109 Hz interval) | 9.3 (⊥ C) |
| 11.5 (∥ C) |
The Advantage of Sapphire Crystal Glass
– High hardness – 9H
– Scratch resistance
– Abrasion resistance
– High mechanical strength
– High temperature resistance
– Good thermal stability
– High optical production rate

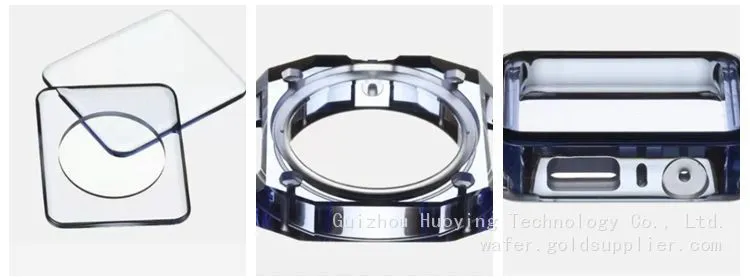

Sapphire Glass
Sapphire Glass
Synthetic sapphire is transparent single crystal 99.99% pure Al2O3 that exhibits a unique combination of physical, chemical, electrical and optical properties: high thermal conductivity, high strength and scratch resistance, hardness (9 on the Mohs scale), transparent in wide range of wavelength, chemical inertness.
High crystal perfection, low reactivity, and appropriate unit cell size make sapphire an excellent substrate in the semiconductor industry for blue light-emitting diodes (LED).
Since Nobel Laureate in Physics Shuji Nakamura used the sapphire substrate in 1990s for LED, the demand of sapphire crystal has been growing rapidly.
It drives development of new markets like general lighting, backside lighting in TV-sets, displays, consumer appliances, aerospace and defense, and other applications
Sapphire Applications
Substrates for LED manufacturing
Viewports for vacuum/high temperature/pressure chamber of furnaces, semiconductor equipment etc.
Watch glasses/Windows for bar code reader
Phone, smartphone, smart watch cover screens
Polarized windows for LCD projectors/Xenon lamp windows
Components for infrared optics
Thermocouples protection NMR tubes
Tubes for plasma etching process in semiconductor industry
HPLH pistons /Light guide for thermometry
Dosing and filling pumps in pharmaceutical, cosmetic and food industries.
Medical implants/Endoscope lenses
Q1: How can I get the price and consult for product details?
A1: Send enquiry via Email, Skype, Wechat or Call us directly.
Q2: What is your main product? OEM/ODM ?
A2:Thermal interface material, Sapphire Glass products, Die cut service for industrial etc.
&OEM/ODM is available. For details, please kindly contact the sales persons.
Q3: What is your service?
A3: 24 hours online service is our promise.
Q4: How is your quality of products and quality guarantee policy?
A2: 100% full test before shipping and 100% compliance with the request of clients.
Q4: What is the payment method?
A3: T/T, Western Union, L/C, Paypal,Etc.
Q5: What is the delivery time?
A5: Normally 20-40 working days after payment received. But it depends on exactly situation.
Q6: What package do you use for the products?
A6: Safe and standard packing for export shipment (PE film cover, kraft paper/bubble bags parcel, and pack into carton or wooden box).
