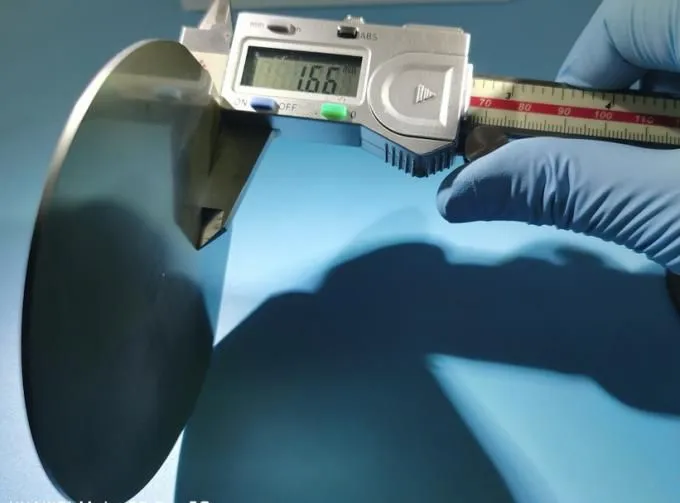

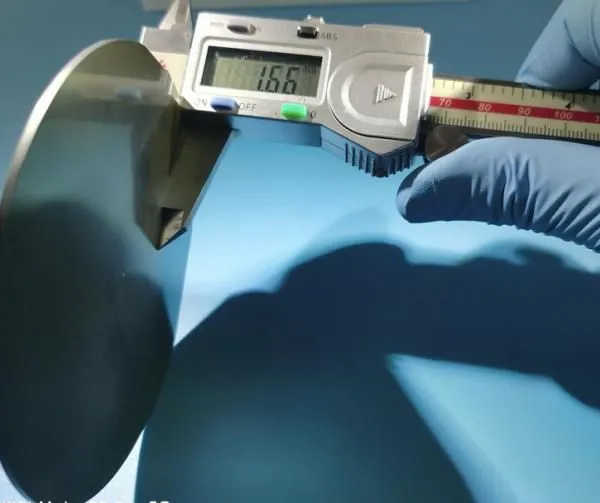

4Inch Prime Grade 4H-N 1.5mm SIC Silicon Carbide Wafer
Product Spotlights
4Inch prime Grade 4H-N 1.5mm SIC Silicon Carbide Wafer
Negotiable
MOQ: 10 Blades (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Guiyang, Guizhou, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SOI Wafers Three Layer StructureNegotiableMOQ: 25 Boxes -
12 Inch Sapphire Substrate Dia 300mm C Plane Quartz Wafers BF33NegotiableMOQ: 10 Blades
-
6 Inch N Type Polished Silicon Wafer DSP SiO2 Silicon Oxide WaferNegotiableMOQ: 10 Pieces
-
ZnSe Window Zinc Selenide Optical WaferNegotiableMOQ: 10 Blades
-
ZnTe Crystal Substrate Orientation 110 10x10x0.5mm 10x10x1mmNegotiableMOQ: 10 Blades
SIC Silicon Carbide Wafer
Silicon carbide (SiC), also known as carborundum, is a semiconductor containing silicon and carbon with chemical formula SiC. SiC is used in semiconductor electronics devices that operate at high temperatures or high voltages, or both. SiC is also one of the important LED components, it is a popular substrate for growing GaN devices, and it also serves as a heat spreader in high-power LEDs.
| Property | 4H-SiC, Single Crystal | 6H-SiC, Single Crystal |
| Lattice Parameters | a=3.076 Å c=10.053 Å | a=3.073 Å c=15.117 Å |
| Stacking Sequence | ABCB | ABCACB |
| Mohs Hardness | ≈9.2 | ≈9.2 |
| Density | 3.21 g/cm3 | 3.21 g/cm3 |
| Therm. Expansion Coefficient | 4-5×10-6/K | 4-5×10-6/K |
| Refraction Index @750nm | no = 2.61 ne = 2.66 |
no = 2.60 ne = 2.65 |
| Dielectric Constant | c~9.66 | c~9.66 |
| Thermal Conductivity (N-type, 0.02 ohm.cm) | a~4.2 W/cm·K@298K c~3.7 W/cm·K@298K |
|
| Thermal Conductivity (Semi-insulating) | a~4.9 W/cm·K@298K c~3.9 W/cm·K@298K |
a~4.6 W/cm·K@298K c~3.2 W/cm·K@298K |
| Band-gap | 3.23 eV | 3.02 eV |
| Break-Down Electrical Field | 3-5×106V/cm | 3-5×106V/cm |
| Saturation Drift Velocity | 2.0×105m/s | 2.0×105m/s |

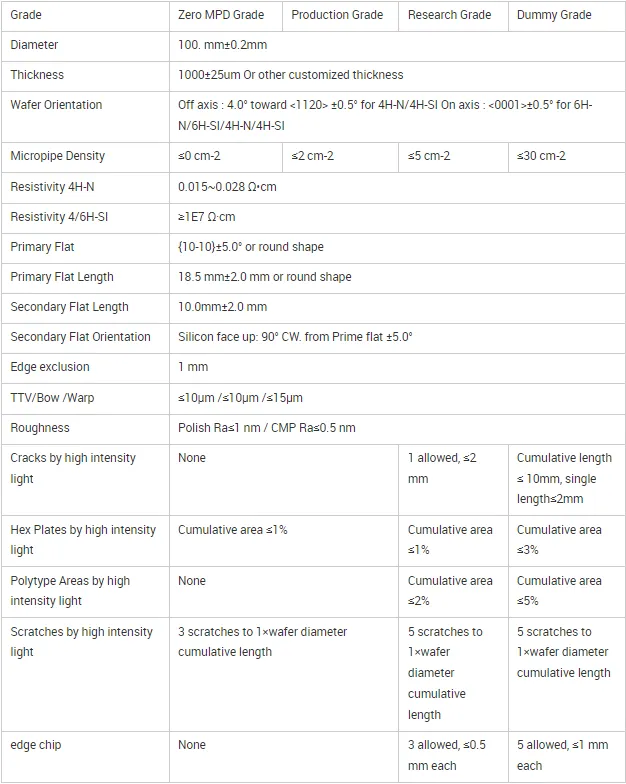

sic parameter
