Product Description

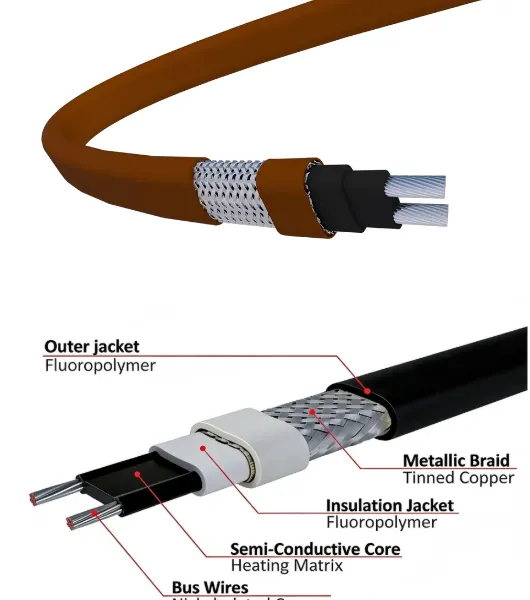

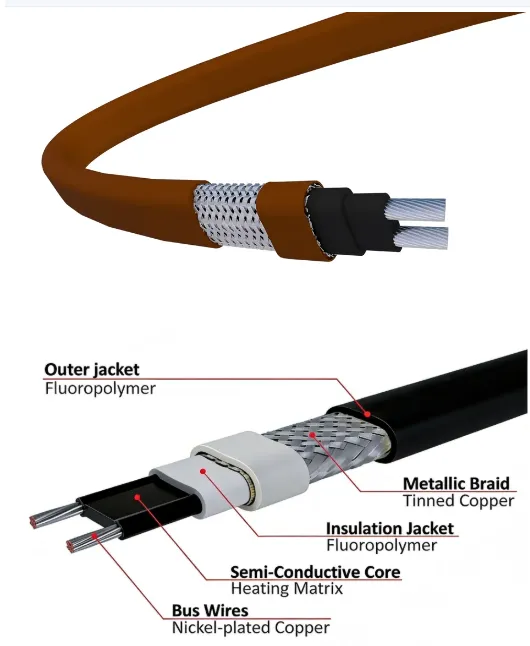

ZWK-Self-Regulating Heating Cable
The medium temperature self-regulating electric heating series developed by our company is widely used in the heating, anti-coagulation and anti-freezing of pipelines and storage tanks of civil solar energy, geothermal heating, fire protection, petroleum, chemical, steel, electric power and environmental protection industries. The electric heating cable is suitable for general areas, hazardous areas and corroded areas.
The Huaning ZWK self-regulating heating cables is designed for pipe heat tracing in industrial applications.
ZWK heating cables maintain process temperatures up to 90±5 °C and can withstand intermittent exposure to temperatures up to 125°C.
The heating cables are configured for use in nonhazardous and hazardous locations, including areas where corrosives may be present.

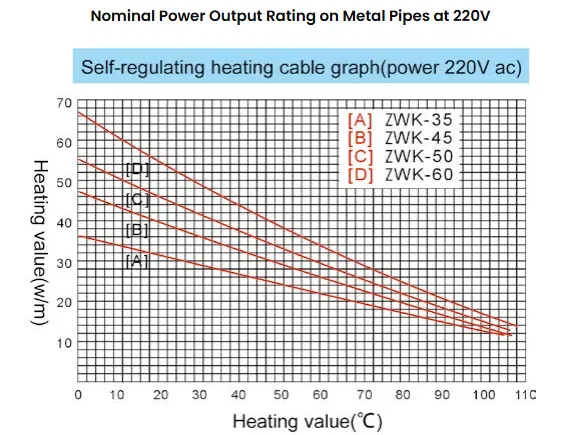

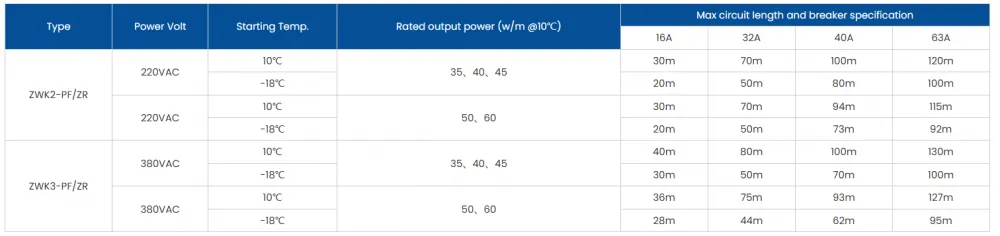

Specification
Maximum maintain or continuous exposure temperature |
90±5°C(195°F) |
Maximum intermittent exposure temperature |
125°C(-257°F) |
Minimum installation temperature |
- 40°C(-76°F) |
Minimum bend radius |
25.4mm at-20°C and 35mm at-30°C |
Copper core bus wire size |
7×0.50, 19×0.32 |
Out jacket color |
brown |
Starting current |
≤0.6A/m |
Thermal stability |
90% |
Certifications

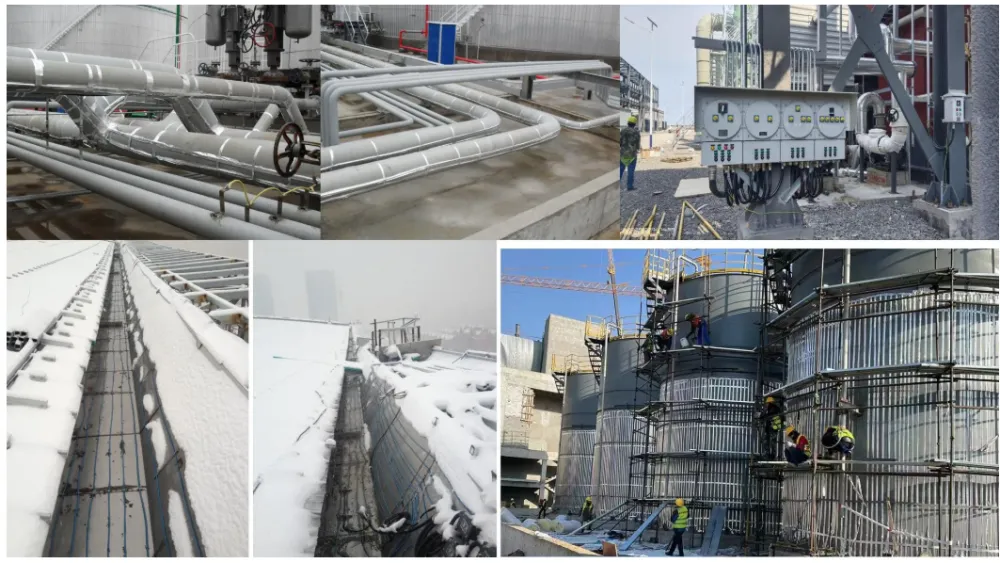

Application
Packaging & Shipping
Our Customers
