Self-Regulating Electric Heat Tracing Cable for Safety China Huaning for High Temp
Product Spotlights

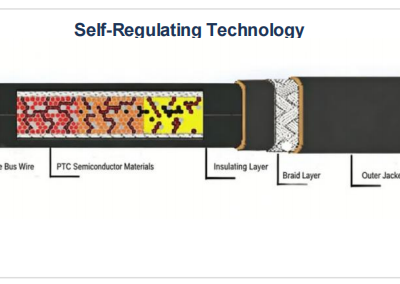

High temperature, Self-Regulating Heating Cable, Conductive Polymer (PTC), Copper conductor, certified IECEX and EAC
US$ 1.6 - 2.5
MOQ: 100 Meters
Key Specifications
Get Latest Price
Transport Package:
in drum
Specification:
40*40*20
Trademark:
XINHUANING
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Related Products
-
Gwk (II) Electric Heating Cable With Advanced Fluoropolymer Jacket for Optimal Tracing Wire-Iecex and EAC CertifiedUS$ 1.6 - 2.5MOQ: 100 Meters -
Flexible Gwk (II) High Temperature Heat Tracing Wire and Electric Heating Cable for Easy Installation-Iecex and EAC CertifiedUS$ 1.6 - 2.5MOQ: 100 Meters
-
Reliable Gwk (II) Heat Tracing Wire for Optimal Heating Solutions-Iecex and EAC CertifiedUS$ 1.6 - 2.5MOQ: 100 Meters
-
High Temperature Gwk (II) Electric Heating Cable With Modified Polyolefin-Iecex and EAC CertificationUS$ 1.6 - 2.5MOQ: 100 Meters
-
Gwk (II) Electric Heating Cable for Efficient Temperature Control-Iecex and EAC CertifiedUS$ 1.6 - 2.5MOQ: 100 Meters
Transport Package
in drum
Specification
40*40*20
Trademark
XINHUANING
Origin
China
Product Description
Specification
Maximum Maintain Temperature |
120°C ( 248°F) |
Maximum Intermittent Exposure Temperature |
200°C ( 392°F) |
Minimum Installation Temperature |
-60°C (-76°F) |
Voltage Range |
220V, 230V,380V |
Power Output (at 10°C) |
16W/m to 66W/m |
Min.Bending Radius |
30mm @ 20°C 50mm @ -40°C |

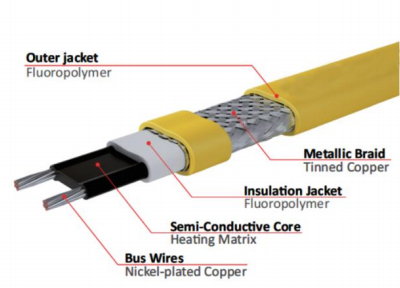

Components & Material
High-quality, customized
Conductors |
Copper (7×0.50mm) |
Heating Core |
Conductive Polymer (PTC) |
Insulation |
Fluropolymer |
Shielding |
Tinned Copper Braid (80% coverage) |
Outer Jacket |
Fluoropolymer |
Dimensions |
11.15mm × 5.13 mm |
Power Output Ratings
Model; Voltage; Power Output @ 10°C; Max Circuit Length; Application
16GWK |
230V |
16W/m |
other products seen in figure below |
33GWK |
230V |
33W/m |
|
49GWK |
230V |
49W/m |
|
66GWK |
230V |
66W/m |
