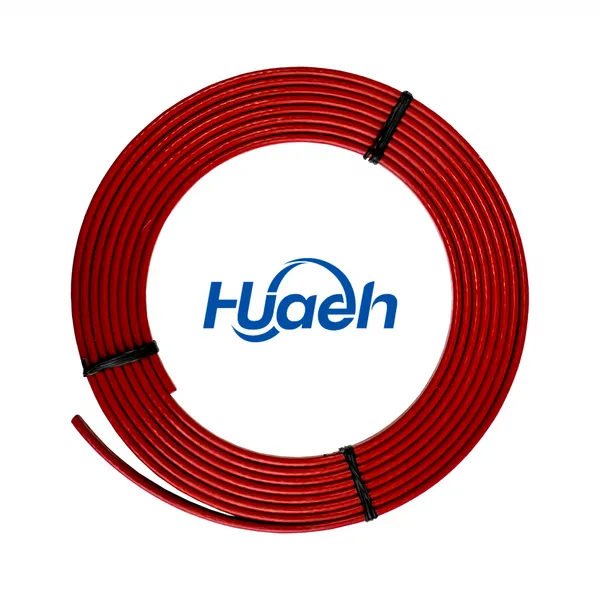

Help CenterFlexible Gwk (II) High Temperature Heat Tracing Wire and Electric Heating Cable for Easy Installation-Iecex and EAC Certified
Product Spotlights
Related Products
-
Reliable Gwk (II) Heat Tracing Wire for Optimal Heating Solutions-Iecex and EAC CertifiedUS$ 1.6 - 2.5MOQ: 100 Meters -
High Temperature Gwk (II) Electric Heating Cable With Modified Polyolefin-Iecex and EAC CertificationUS$ 1.6 - 2.5MOQ: 100 Meters
-
Gwk (II) Electric Heating Cable for Efficient Temperature Control-Iecex and EAC CertifiedUS$ 1.6 - 2.5MOQ: 100 Meters
-
FEP Insulated Self-Regulating Heating Cable for Residential and Commercial PipeworkNegotiableMOQ: 100 Meters
-
Self-Regulating Heat Trace Cable With Plug for Deicing and Roof Gutter ApplicationsNegotiableMOQ: 100 Meters
Specification
Maximum Maintain Temperature |
150°C ( 302°F) |
Maximum Intermittent Exposure Temperature |
250°C ( 482°F) |
Minimum Installation Temperature |
-60°C (-76°F) |
Voltage Range |
220V, 230V |
Power Output (at 10°C) |
16W/m to 66W/m |
Min.Bending Radius |
30mm @ 20°C 50mm @ -40°C |

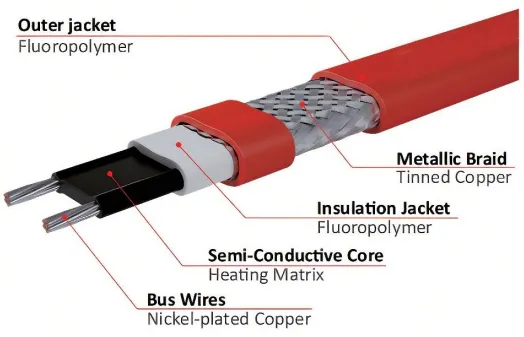

Components & Material
Premium, tailored solutions
Conductors |
Copper (7×0.50mm) |
Heating Core |
Conductive Polymer (PTC) |
Insulation |
Fluropolymer |
Shielding |
Tinned Copper Braid (80% coverage) |
Outer Jacket |
Fluoropolymer |
Dimensions |
13.03mm × 5.05mm |

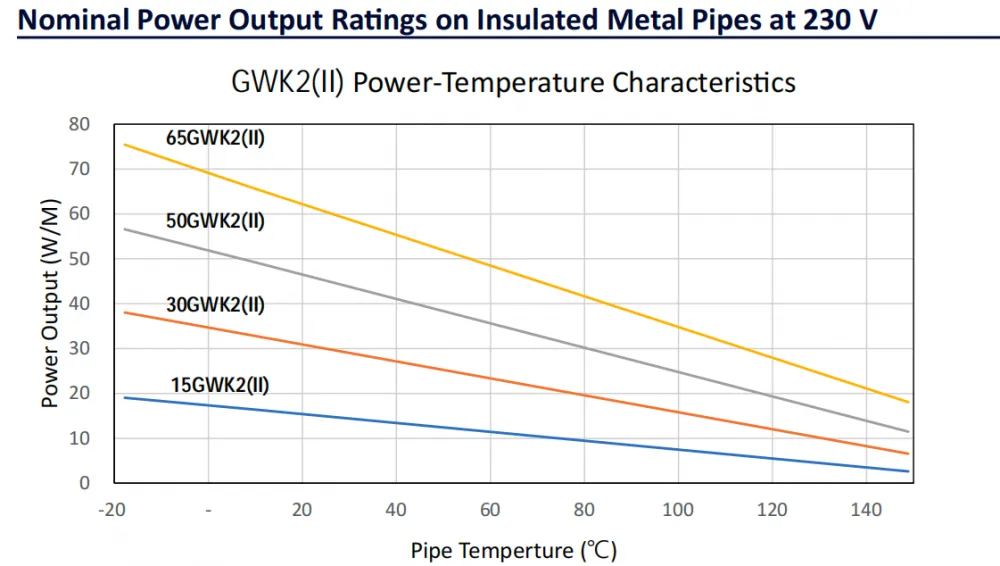

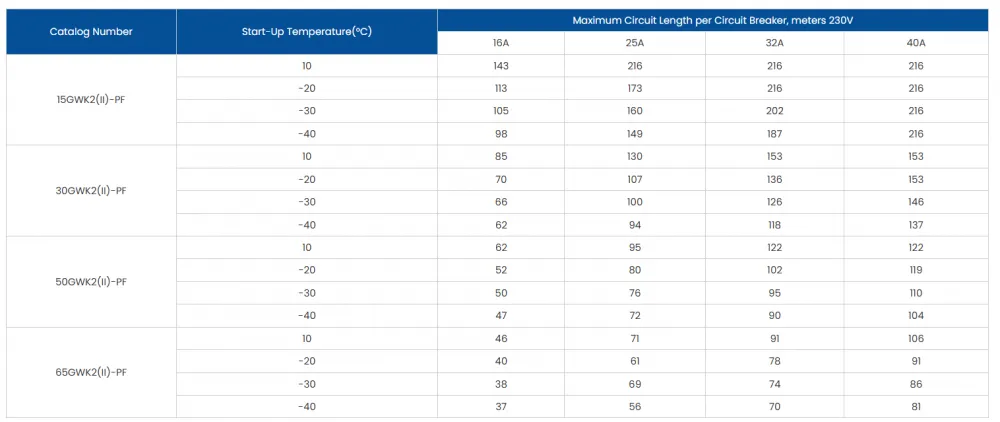

Power Output Ratings
Model; Voltage; Power; Max Length; Application
Packing & Delivery
Why choose us?
To meet global standards, Shandong Huaning Electric Heating Technology Co., Ltd. established an electric heating lab in 2019 for testing systems.
The electric heating lab performs 14 type tests per IEC/IEEE60079-30-1 for resistance heating in explosive environments.
The skin effect lab conducts 14 type tests as per IEEE Std844.1-2017/CSAC22.2No.293.1-17, filling testing gaps in the industry.
Company Profile
Shandong Huaning Electric Heating Technology Co.,Ltd
Shandong Huaning Electric Heating Technology Co., Ltd. is a comprehensive technological manufacturer of
electric heat tracing cable, explosion-proof electric heater, and distribution boxes integrating
R&D, design, sales, system integration, operation, and maintenance services.
Since 2007, the company has achieved numerous authoritative certifications, including ISO9001
Quality Management System Certification, China Classification Society Certification, National
Explosion-Proof Electrical Product Quality Supervision and Inspection Center, National
Wire and Cable Inspection Center, Shandong Provincial Product Quality Supervision and Inspect Institute
Certificate. It has earned many honors such as National High-tech Enterprise, Provincial and Municipal
"Specialized and New" Enterprise, Jinan Gazelle Enterprise, etc., and holds 6 invention patents, 38 utility
model patents, and 5 software copyright patents. The company has a high-voltage skin heating
research institute, CSA international electrical standards lab, CNOOC submarine heating
cable R&D center, Shandong Huaning Electric Heating Technology Engineering Co., Ltd.
The Huaning factory spans 60 acres with four production workshops and 14
professional lines, including 4 self-limiting temperature lines with a monthly
output of 500,000 meters; 3 mineral insulated cable lines with a monthly output of
100,000 meters; 4 series/parallel lines, monthly output of 500,000 meters;
2 skin-effect cable lines, monthly output of 50,000 meters; 1 sampling
composite pipe line, monthly output of 35,600 meters; 2 explosion-proof boxes and 2
explosion-proof heater lines.
Since inception, Shandong Huaning has focused on green service,
boosting thermal energy conversion and utilization, leading smart energy for heating.
products and pioneering a new era of smart energy for electric heating.
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 10–15 days; custom units require 30–45 days.
Q: Do you have international certification?
A: Yes, we have EAC, IECEX, ATEX, CE, ISO, etc.
Q: Do you have past performance list overseas?
A: Yes, we've participated in many overseas projects.
Q: How do you assure the product quality?
A: We have an international standard lab and inspect each batch.
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
