Product Description
Specification
Maximum Maintain Temperature |
120°C ( 248°F) |
Maximum Intermittent Exposure Temperature |
200°C ( 392°F) |
Minimum Installation Temperature |
-60°C (-76°F) |
Voltage Range |
220V, 230V,380V |
Power Output (at 10°C) |
16W/m to 66W/m |
Min.Bending Radius |
30mm @ 20°C 50mm @ -40°C |

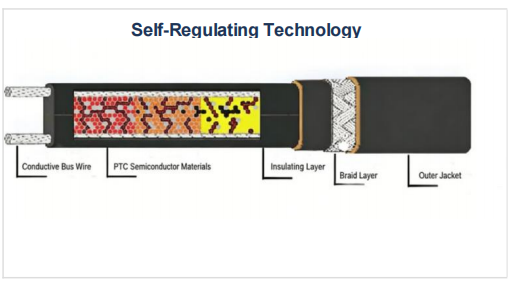

Components & Material
High-quality, customized
Conductors |
Copper (7×0.50mm) |
Heating Core |
Conductive Polymer (PTC) |
Insulation |
Fluropolymer |
Shielding |
Tinned Copper Braid (80% coverage) |
Outer Jacket |
Fluoropolymer |
Dimensions |
11.15mm × 5.13 mm |

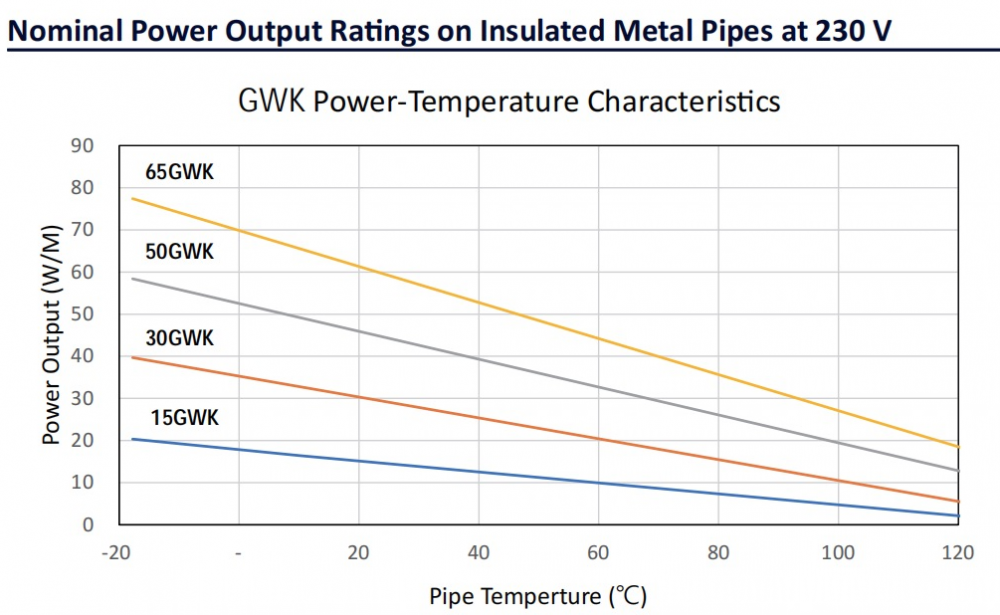

Power Output Ratings
Model; Voltage; Power Output @ 10°C; Max Circuit Length; Application
16GWK |
230V |
16W/m |

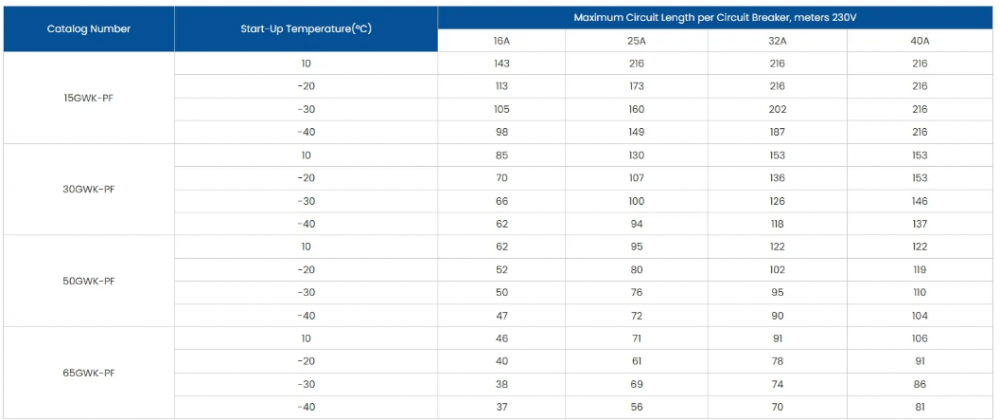

other products seen in figure below |
33GWK |
230V |
33W/m |
|
49GWK |
230V |
49W/m |
|
66GWK |
230V |
66W/m |
Packing & Delivery
Company Profile
Shandong Huaning Electric Heating Technology Co., Ltd. is a comprehensive technological manufacturer of electric heat tracing cable, explosion-proof electric heater, and explosion-proof distribution boxes integrating R&D, design, sales, system integration, operation and operation and maintenance services.
Since its establishment in 2007, the company has successively passed many authoritative organization certifications,such as IS09001 Quality Management System Certification, China Classification Society Certification, National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, National Wire and Cable Inspection Center, Shandong Provincial Product Quality Supervision and Inspect Institute Certificate. It has won many honorary titles such as National High-tech Enterprise, Provincial and Municipal "Specialized and New" Enterprise, Jinan Gazelle Enterprise, etc., and has 6 invention patents, 38 utility model patents, and 5 software copyright patents.The company has ultra-high voltage long-line skin heating research institute, CSA international electrical standards authorized laboratory, CNOOC submarine heating cable R&D center, Shandong Huaning Electric Heating Technology Engineering Co., Ltd.
The Huaning factory covers an area of more than 60 acres. It has four production workshops and 14 professional production lines, including 4 sets of self-limiting temperature production lines with a monthly output of 500,000 meters; 3 sets of mineral insulated heating cable production lines with a monthly output of 100,000 meters; 4 sets of series and parallel connection, with a monthly output of 500,000 meters; 2 sets of skin-effect cables, with a monthly output of 50,000 meters; 1 set of sampling composite pipe production lines, with a monthly output of 35,600 meters; 2 sets of explosion-proof wiring boxes and 2 sets of explosion-proof heaters production line.
Shandong Huaning's products include continuous steel pipe heating cables, oil well heating cables, medium frequency power supply, skin cables, mineral insulated heating cables, series constant wattage heating cables, parallel constant wattage heating cables, heating cables, self -regulating heating cables, instrument insulation boxes, explosion-proof electric heaters, remote control and other series. The products have passed relevant domestic and international certifications such as 3C, CNEX, ATEX, EX, IECEX, EAC, etc.;
They are widely used in oil and gas exploration, chemical industry, metallurgy, electric power, environmental protection, energy transportation, aerospace, nuclear energy, photothermal energy storage, construction, machinery and other fields. As of 2023, we have served more than 10,000 companies which are long-term partners of large companies such as PetroChina, Sinopec, CNOOC, State Power Investment Corporation, Datang Electric Power, and BYD. Our products have been exported to more than 30 countries and regions such as Russia, Malaysia, Belarus, Indonesia, Brazil, and Kazakhstan, Iraq, etc.
Since the establishment of the company, Shandong Huaning has always adhered to green service as its core, promoting the purpose of improving the thermal energy conversion rate and thermal energy utilization rate of productsand opening a new era of smart energy for electric heating products. With scientific and technological innovation as the driving force and the business philosophy of survival by quality, we provide "Huaning Solutions" for China's electric heating field.

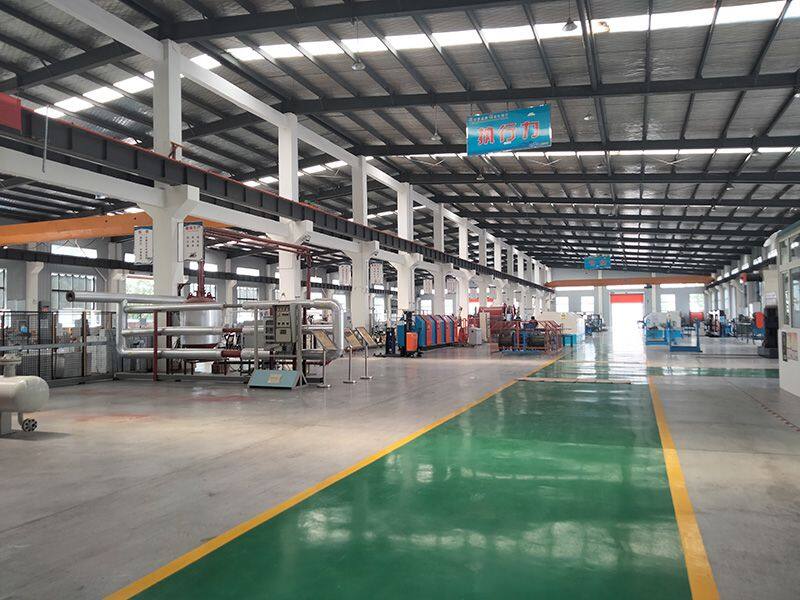

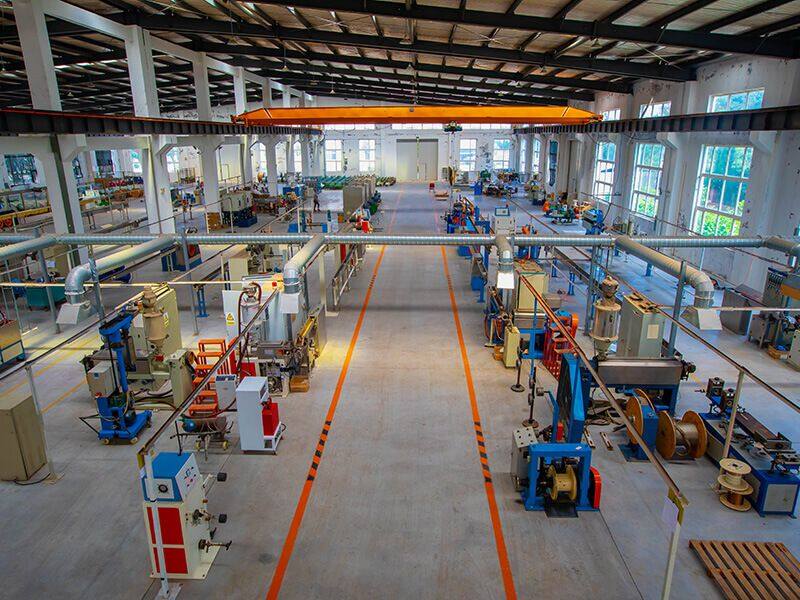

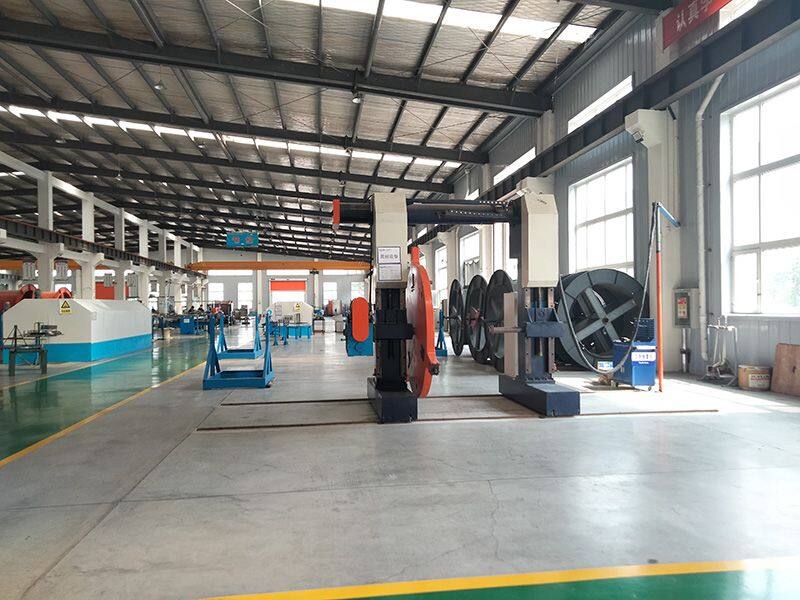

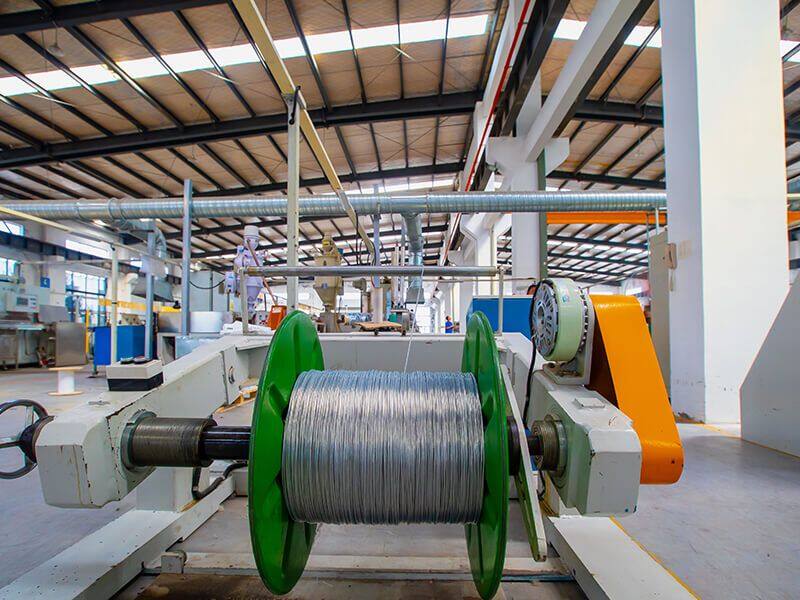

Factory
